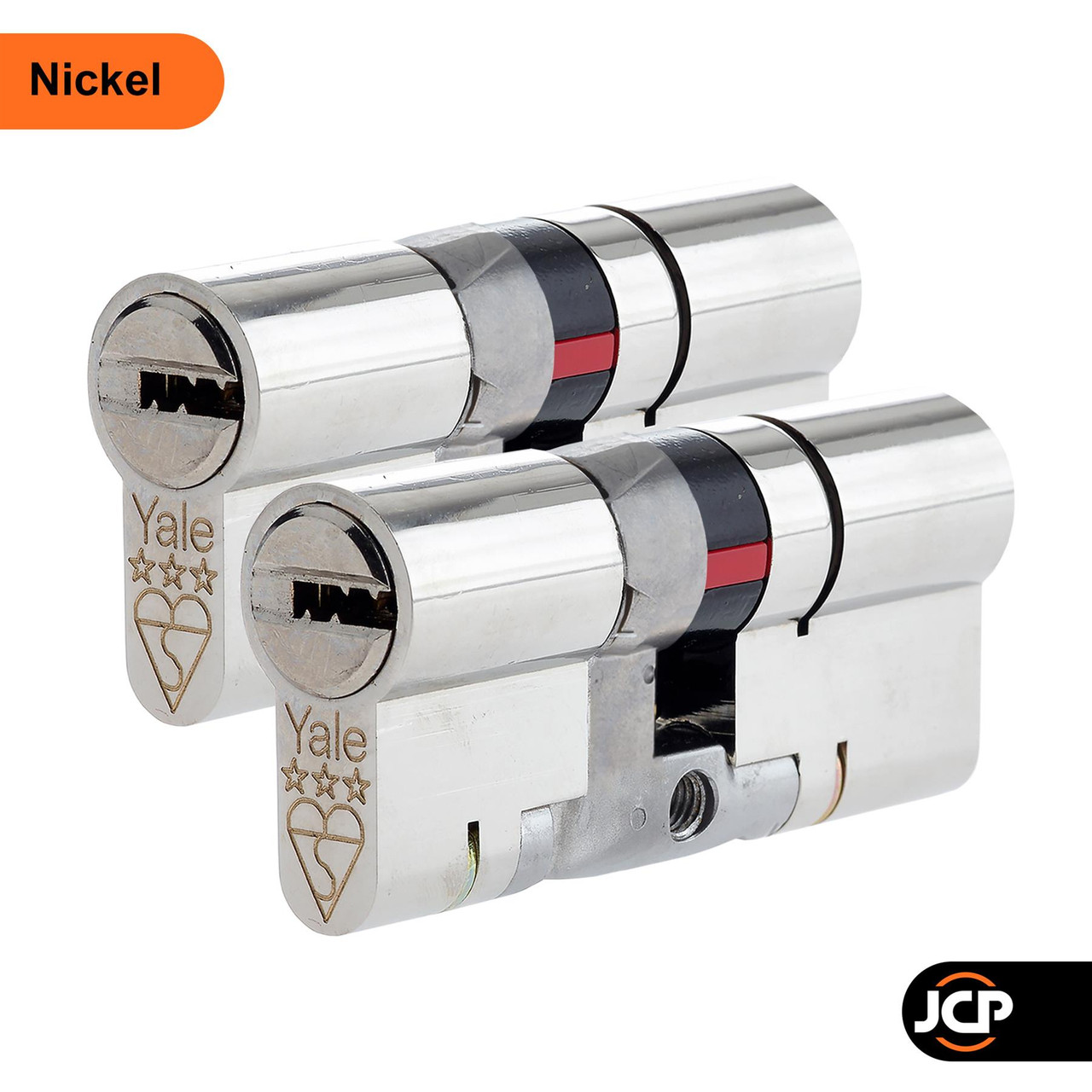

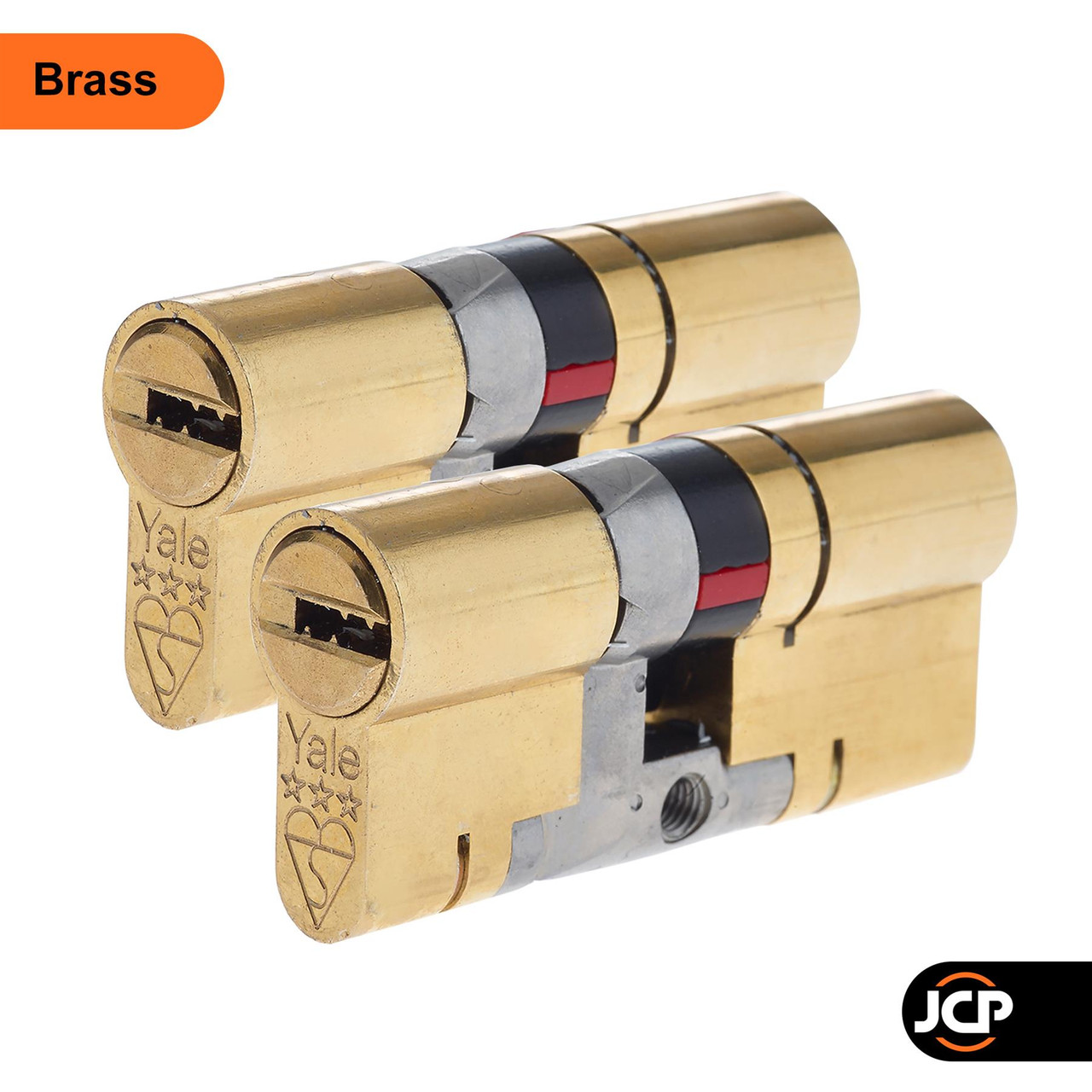

YALE Platinum 3 Star Keyed Alike Anti Snap Euro Cylinder UPVC Front Door Lock TS007

YALE Platinum 3 Star Keyed Alike Anti Snap Euro Cylinder Door Lock

The Yale Platinum 3 Star Keyed Alike Euro Cylinder is the ultimate choice for uncompromising home security. Designed to deliver maximum protection, this high-security door lock boasts TS007:2014 3-star certification, making it one of the most secure euro cylinder locks available. Its robust features include a sacrificial front section, hardened grip detectors, and an interlocking cam to prevent break-ins using common methods like snapping, bumping, picking, or drilling. With these advanced safeguards, your property is protected by a lock that doesn't just meet but exceeds industry standards.

What sets the Yale Platinum 3 Star apart is its convenience without compromise on security. Each set is designed to be keyed alike, meaning one key can operate both locks in the set – an ideal solution for homeowners seeking simplicity and security. The sleek, horizontal keyway accommodates reversible dimple-cut keys, ensuring smooth operation while adding a modern aesthetic. Featuring a visible 3-star Kitemark logo, the cylinder acts as a powerful visual deterrent to would-be intruders, leaving no doubt about its superior protection capabilities.

Please note: The Yale Platinum Cylinder is undergoing a gradual design update, featuring a more streamlined, bump-free design. As these improvements are rolled out, some cylinders may include these enhancements, reflecting Yale's commitment to constant innovation in security technology.

Specification

• TS007 2014 3 star approved
• Tested to the British standard BS EN1303:2005 16000C52
• Kitemark approved – KM559658
• 3 star standard with no additional security furniture required
• Secured By Design
• Anti-Snap, sacrificial front section
• Anti-Pick, Anti-Bump, Anti-Screw, Anti-Pull and Anti-Drill
• Euro retrofit cylinder
• Supplied with three Yale branded, dimple cut keys as standard
• Superior strength with cylinder stability system for superior protection
• Horizontal keyway
• Flat reversible dimple key with new stylish nylon key bow
• Key card for easy code identification and key duplication
• Keyed alike - all locks in the set will work from the same key.

What's in the Pack?

2 x Yale Platinum 3 Star Keyed Alike Euro Profile Cylinders

6 x Keys

1 x Keycard

2 x Fixing Screws

How do I measure a Yale Platinum door cylinder?

• Please remember that one side of an Yale Platinum lock is dedicated external and the other internal, so great care must be taken to ensure you note which measurement is which. Yale Platinum locks are clearly marked 'EXT' on the external side for easy fitting.
• The easiest way to measure your old euro cylinder lock is to remove it from your door, taking note which end is external.
• Measurement A (Internal): Measure from the internal side to the centre of the screw hole. A = 45mm
• Measurement B (External): Measure from the external side to the centre of the screw hole. B = 50mm
• Overall measurement will be 95mm - this is a good way to check you are correct.
• The cylinder size you would need to order in this example case is 44mm Int 50mm Ext

Please refer to the 'How to Measure' diagram in the gallery.
