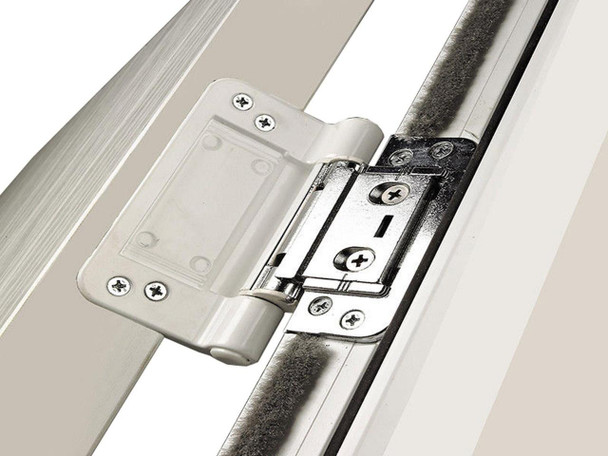

White Trojan 3D Butt Hinge for Composite Doors

White Trojan 3D Adjustable Butt Rebate Door Hinge for Timber & Composite Doors

The Trojan 3D Composite Door Butt Hinge offers both high standards of quality and performance at an affordable price. The hinge is quick and easy to install and can be fitted on both composite and timber doors. The 3D hinge is fully adjustable (Lateral, Vertical and Compression) ensuring perfect door alignment for a smooth, trouble free operation. Weight loading capacity of 100kg where 3 hinges are used.

Features:

• High standard of quality and performance
• Conforms to EN 1191 - tested to 100,000 cycles.
• Corrosion test - Paint achieved Grade 5, plate achieved Grade 4.
• Can achieve PAS24 accreditation as part of a compliant door assembly.
• 100kg weight loading capacity if 3 hinges are used.
• Full 3D adjustment
• UV rated finish
• Quick and easy to fit
• Fits onto rebate

What's in the pack?

1 x Trojan 3D Composite Door Butt Hinge

Dimensions:

• Hinge Height: 110mm
• Distance between screw centres: 68mm, 76mm
• Lateral 3D adjustment: +/- 3mm
• Vertical 3D adjustment:: +/- 4mm
• Compression 3D adjustment: +/- 1.75mm

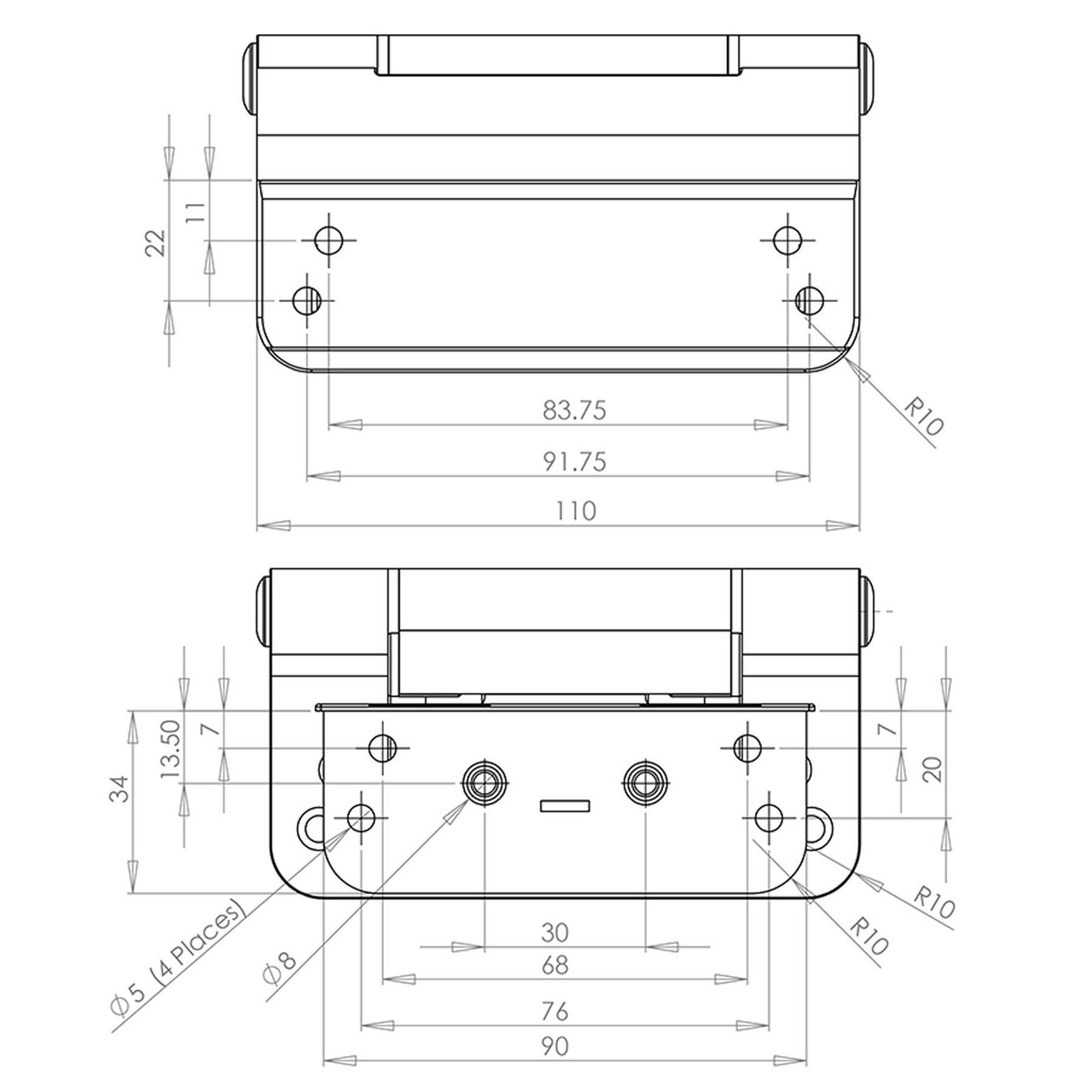

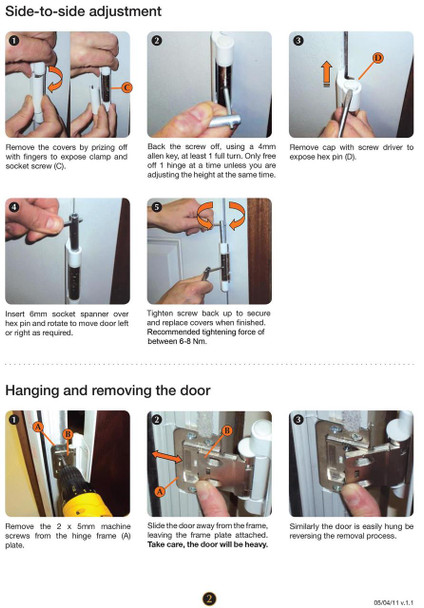

For further measurements and fitting instructions please refer to the gallery images.

All measurements are approximate.
