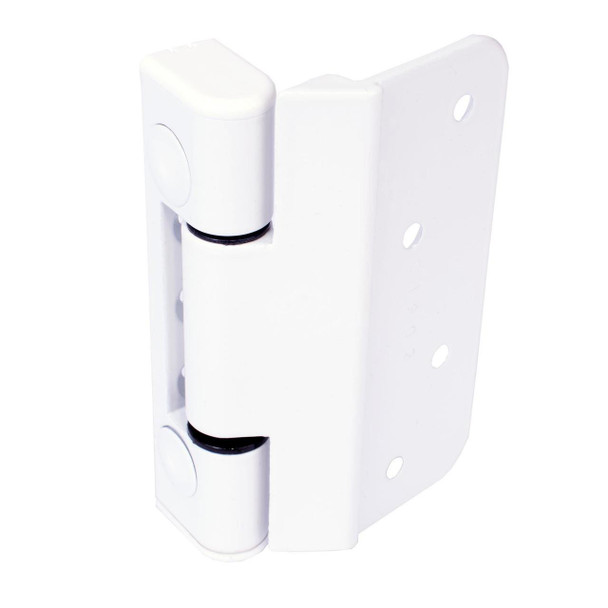

ERA Laird Composite Door Butt Hinge White Challenger 3D

White Era Laird Challenger 3D Butt Rebate Door Hinge for Timber and Composite Doors

This Era Challenger Composite Door Hinge has been especially designed to meet the requirements of BS EN 1670:2007 and is Grade 4 Corrosion Resistant (240 hours). It is designed specifically for use on composite and timber doors and is fully 3D adjustable - Lateral, Height and Compression. It features a secured security pin which prevents unauthorized lift off in outward opening doors. A reliable, sturdy hinge with self-lubricating bushes that is perfect for inwards and outward opening doors; a classic durable body with superior performance and weight loading capacity of 100kg where 3 hinges are used.

Features:

• Meets BS EN 1670:2007 requirements
• Grade 4 corrosion resistant (240 hours)
• Endurance tested in excess of 50,000 cycles
• Self-lubricating bushes
• For use on inward and outward opening composite and timber doors
• Fully 3D adjustable
• Secured Security Pin
• Durable classic body
• 100kg weight loading capacity where 3 hinges are used

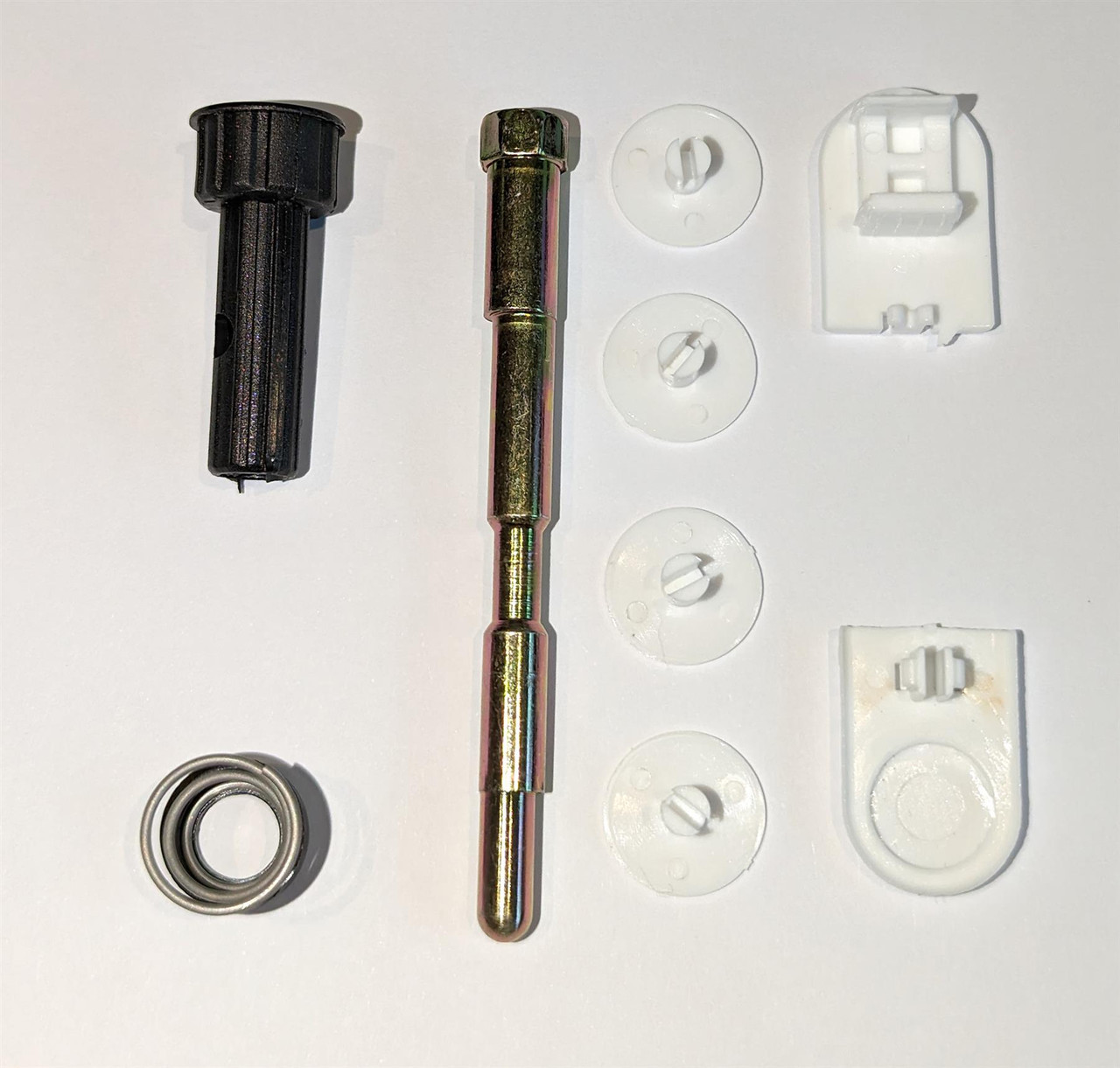

What's in the pack?

1 x Era Challenger White Composite Door 3D Hinge (Body & Flag)

1 x Top Cap; 1 x Bottom Cap; 4 x Adjuster Caps

1 x Flag Bush; 1 x Spring Bush

1 x Hinge Pin

Dimensions:

• Hinge height: 100mm
• Distance between screw centres: 53mm
• Lateral 3D adjustment: +2mm / -2mm
• Vertical 3D adjustment:: +3mm
• Compression 3D adjustment: +0.5mm / -0.5mm

For further details please see the technical diagram in the gallery. All measurements are approximate.
