UPVC Door Flag Hinge 85mm Paddock Nexus Laird Adjustable Double Glazing Doors

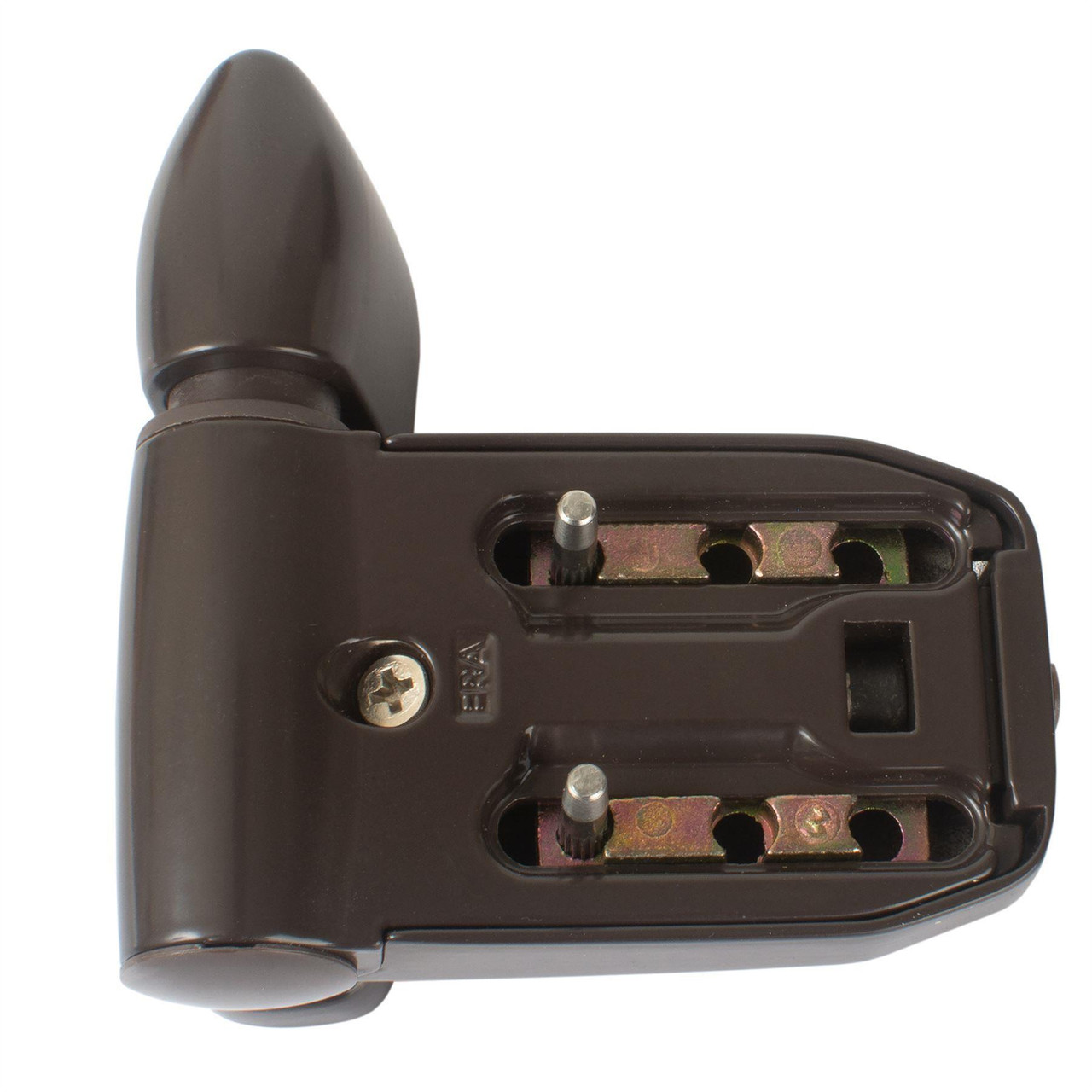

The Laird 85mm ERA Nexus Flag Hinge is a 3D fully adjustable flag hinge that has been designed to give a modern, state of the art appearance to suit doors with a frame to sash height of 13 -21mm.
Proven to give the highest levels of security, the Nexus Hinge is designed with minimal gaps between flag, body and cover to inhibit the use of jemmy type tools - the main hinge pin is designed with a collar in the middle to prevent the pin from being punched out. With stainless steel pins designed to locate into reinforcing this hinge carries a 10 year guarantee as testament to its quality.

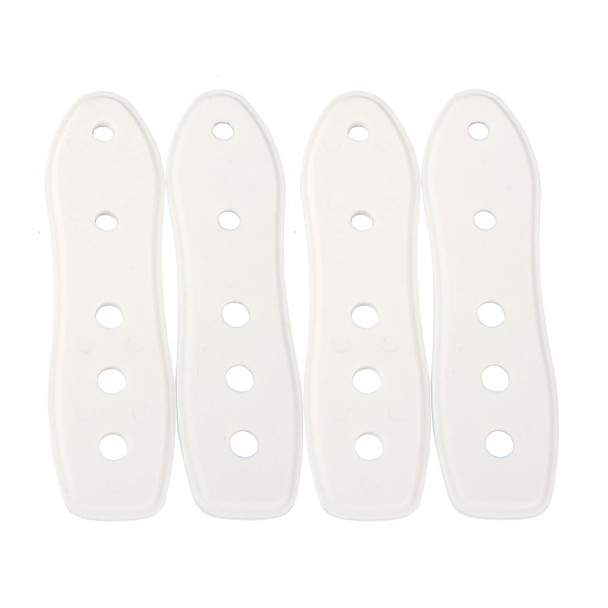

It comes with colour matched packers and bushes.
Features:
- High-security cover and hinge pin
- Designed to meet the requirements of PAS 024:2012 as part of a compliant door system
- Fixing points locate into reinforcing
- High weight carry capacity
- Minimal gaps between body and leaf
- Endurance cycle tested in excess of 50,000 operations
- Fixings are included
- Can be used as a left or right-handed hinge
- Non- handed - can be used for inward and outward opening doors
- Max weight per door: 3 hinges up to 100kgs
What's in the pack?
1 x UPVC Double Glazing 85mm Door Flag Hinge - Paddock Nexus by Laird
Dimensions:
- Hinge height: 90mm
- Hinge width: 84.5mm
- - 5mm + 5mm lateral adjustment
- - 1mm + 4mm height adjustment
- - .75mm + .75mm compression adjustment
- Accepts 13mm - 21mm upstand depths (frame to sash height)
All measurements are approximate
Please see the diagrams in the gallery.
How do I reverse the hinge?
- Remove the compression bush from the body and reinsert from the opposite end.
- Check the bush is firmly located in the body and insert the peg to make sure the hinge moves freely.
- Remove the peg.
- Follow fitting instructions as normal.
