uPVC Window Hinge Versa Retrofit Friction Stay Pair | Fits 13mm & 17mm Stack

Pair UPVC Window Hinges Double Glazing Friction Stay 8" 10" 12" 16" 20" 24" Versa Retrofit

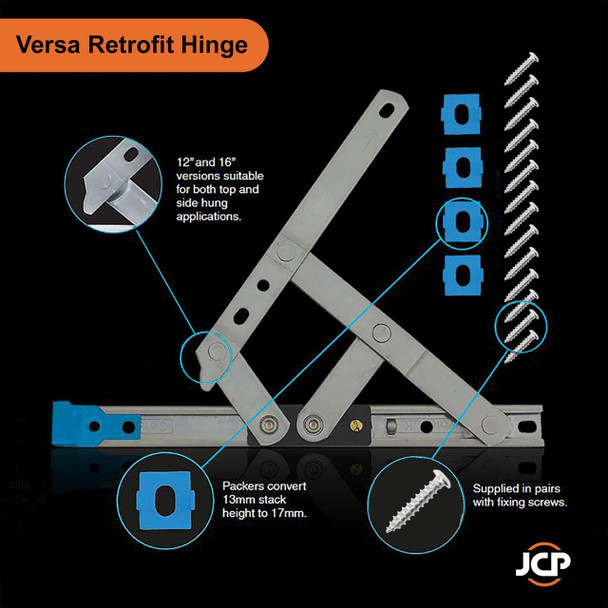

This pair of VERSA Retrofit Friction Stays offer a versatile range of friction hinges suitable for both top and side hung windows. These innovative hinges can be effortlessly adjusted between 13mm and 17mm stack heights, providing unmatched flexibility for various window configurations. Conveniently packaged in pairs and supplied with fixing screws, the VERSA hinges ensure a seamless installation process. Available as top hung in 8", 10", 12", 16", 20" and 24" lengths and side hung in 12" and 16" versions, these hinges cater to all your window needs with ease. Each pair includes 4mm packers to convert 13mm stays to a 17mm stack height, enhancing their adaptability.

Manufactured from high-quality Ferritic steel, the VERSA Retrofit Friction Stays promise exceptional durability and reliability. Rigorously tested to withstand over 30,000 cycles, these friction hinges are built to last, providing long-term performance and peace of mind. Their robust construction ensures that your windows remain secure and functional, even after extensive use. With the VERSA Retrofit Friction Stays, you can trust that your windows will operate smoothly and efficiently, enhancing the comfort and security of your home.

Features:

• Excellent weather sealing & great draught proofing performance

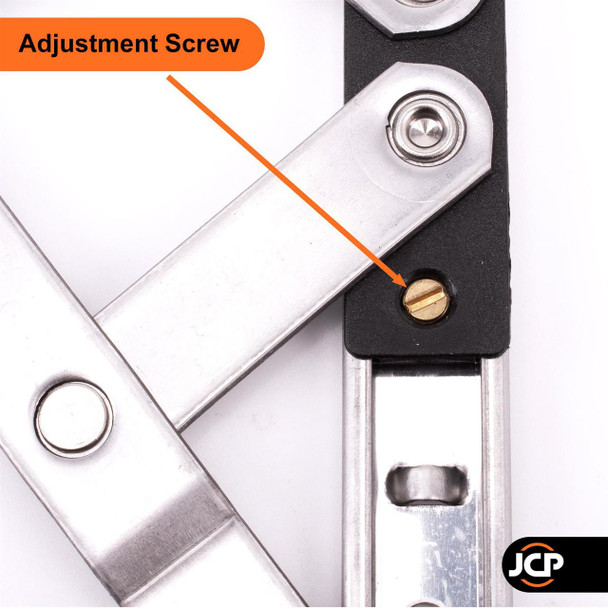

• Adjustable friction screw

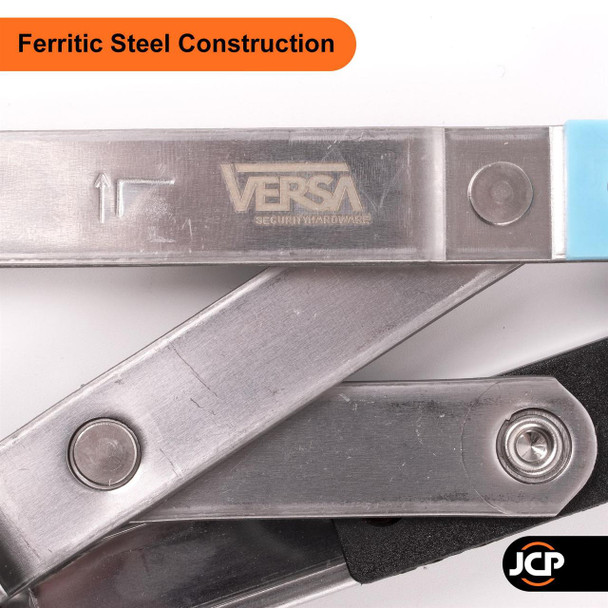

• Material: High-grade Ferritic steel
• Suitable for both top-hung (8", 10", 12", 16", 20" & 24") and side-hung (12" & 16") window applications
• Cycle-tested to an impressive 30,000 cycles

What's in the pack?

1 x Pair Versa Retrofit uPVC Window Hinge Friction Stays

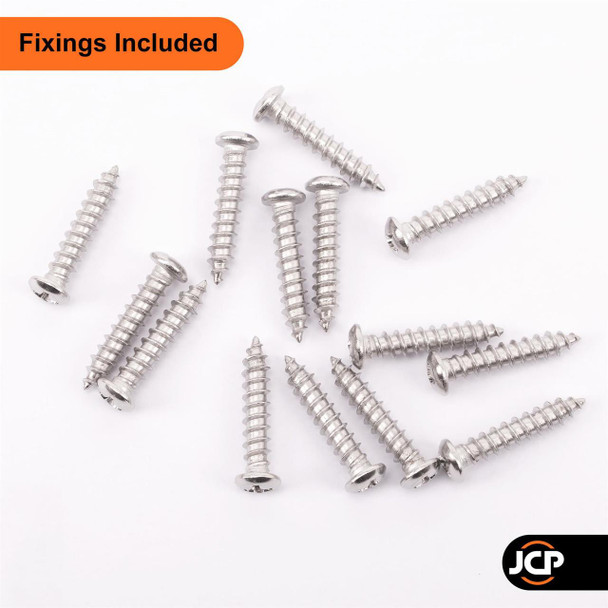

Screw Fixing Pack

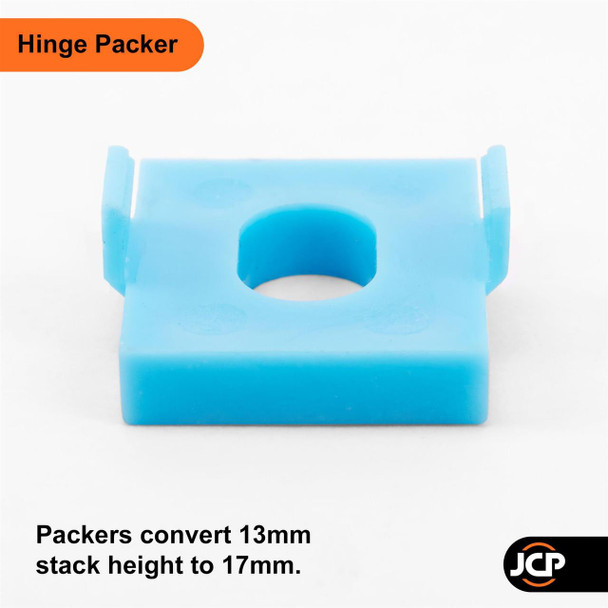

4mm Packers

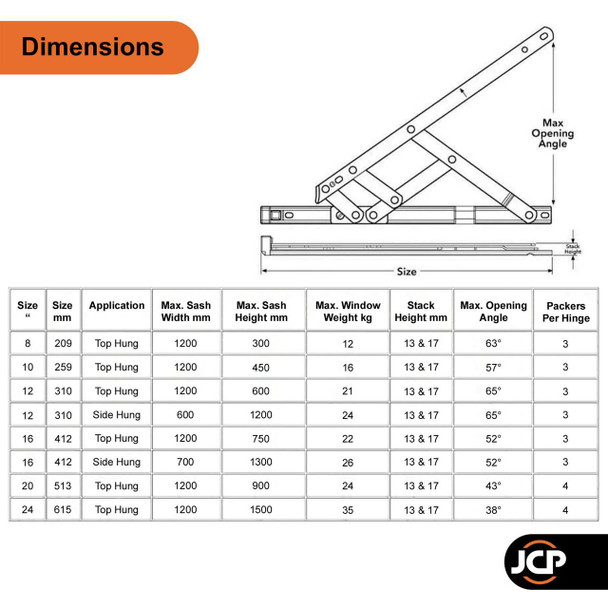

Dimensions:

• Stack heights: 13mm and 17mm
• Hinge width: 18mm
• Hinge length top hung: 8”, 10”, 12”, 16”, 20” and 24”.
• Hinge length side hung: 12” and 16”

How should I measure my hinges?

The diagram in the image gallery will help you with this:

A: First you need to establish the hanging type, do you require a top or side hung hinge?

B: Then you need to take your first measurement - this is the actual length of the hinge. You will need to measure the part that fixes to the window frame (not sash), please see the diagram showing where the hinge length measurements are taken from.

C: The second measurement is that of the hinge width i.e. the width of the metal part that fixes to the outer frame

D: The final measurement that you need is the stack height; this hinge covers both 13mm and 17mm stack heights (for 17mm use the packers provided).

My new hinges are opening the wrong way?

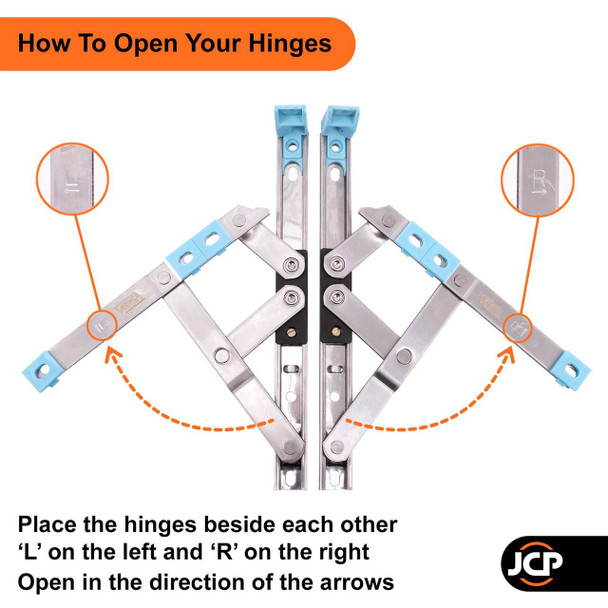

Certainly, we understand that mistakes can occur. If you've opened your door hinges the wrong way, don't worry; you're not alone. Each hinge is marked with either an 'L' or an 'R', along with an arrow indicating the correct opening direction. To correct the error, simply perform the following steps:

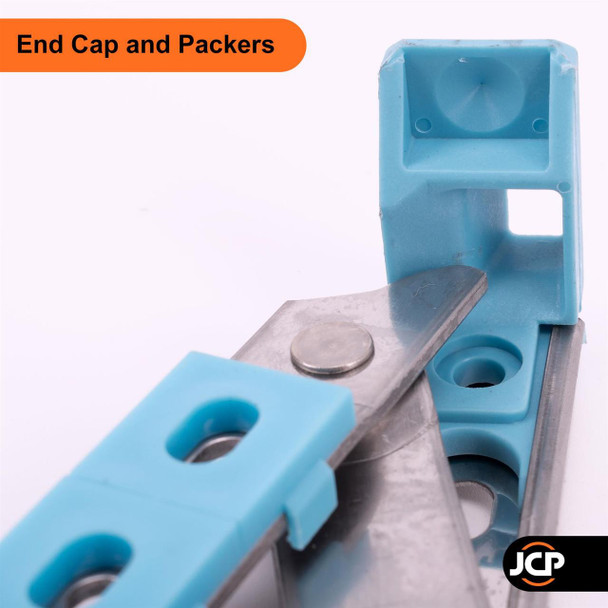

1. Carefully remove the blue end caps from the affected hinges.
2. Close the hinges, making sure they are correctly aligned.
3. Securely reattach the blue end caps.
4. Now, go ahead and open the hinges in the direction indicated by the 'L' or 'R' marking and the arrow.

By following these steps, you'll be able to fix the issue without any hassle.

.
