Upvc Door Handle 92PZ 92mm 240mm Screw Fixing Centres Lever/Lever Blenheim Fab & Fix

The Blenheim lever/lever door handle set comes with a high quality finish that is made to endure giving you years of use. This Sprung lever/lever handle set has been designed to be fully reversible to fit both left or right hung doors. The return spring cassettes are fitted over the spindle hole, ensuring that the handle is held at 90° with no sag.

The Blenheim lever/lever door handle set is designed to replace handles with 92mm cylinder centres (distance from centre of handle spindle to centre of barrel) and distance between screw hole fixings of 240mm.

You may want to update your existing cylinder locks at the same time as replacing your handle. A range of locks is available from our shop to suit all budgets including Anti Snap, Anti Bump, Keyed Alike & Thumb Turns.

Features:

• Blenheim Design
• Enhanced lever for easy grip
• Tested to over 200,000 cycles
• Supplied as a pair complete with spindle and screws
• Universal handing, levers are fully reversible by design
• Materials conform to BS7412 clause 4
• Die Cast Alloy to BSEN 12844
• Steel Parts to BS970 Part 1
• Salt Spray tested to withstand 240 hours
• Registered Design

What's in the pack?

1 x Set of Blenheim 92PZ Lever Handles

1 x Spindle

1 x Packet Fixing Screws

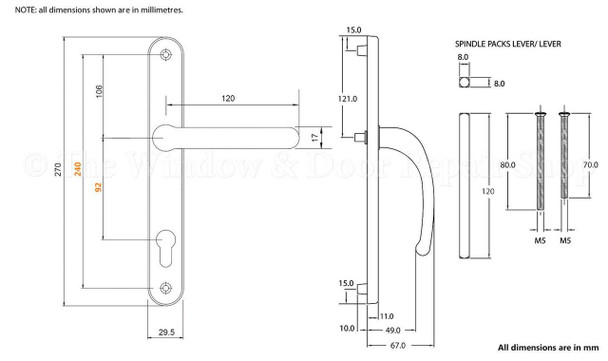

Dimensions:

• PZ Centres: 92mm
• Backplate width: 29.5mm
• Backplate length: 270mm
• Lever length: 120mm
• Distance between screw hole centres: 240mm
• For doors from 58 - 72mm thick
• Spindle Size: 8mm

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 240mm) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

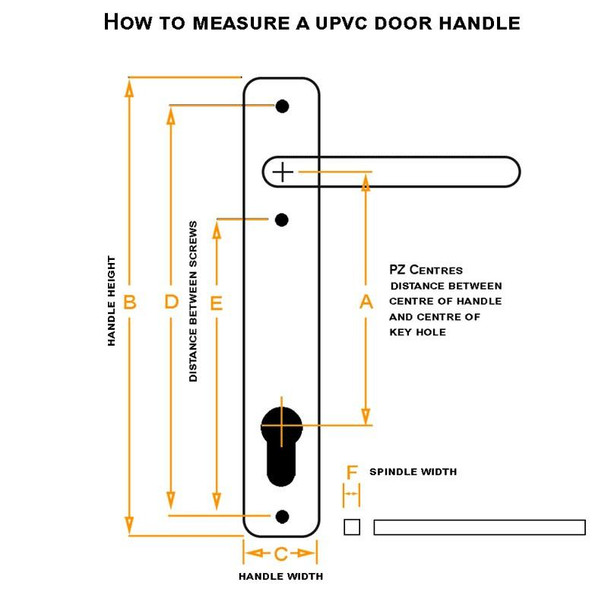

Important please check the critical measurements in the diagram in the gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
