Hoppe Atlanta UPVC Door Handle Pair 92mm PZ 122mm Fixings Lever/Pad

Hoppe Atlanta UPVC Door Handle Set 122mm Screw Centres 92PZ Lever Pad

With aluminium cast levers, pads and backplates, this new and updated Atlanta range is better than ever. Manufactured to a high quality, this handle is sure to give you years of use and its design enables it to be fitted to both left and right hung doors. Its backplate is now sculpted and designed carefully to look elegant and to add style to any door. Compatible with most popular 92mm single and split spindle locks and because the spring cassettes are fitted over the spindle hole, the handles are held comfortably at 90° with no sag.

Available in white, silver, gold, polished chrome and black with a 122mm distance between screw centres. Lever-Pad Design.

 Features:

• Universal Handing
• Lever-Pad Design
• Available in White, Silver, Gold, Polished Chrome and Black
• Cast Aluminium Construction
• Elegant Styling
• This handle is compatible with Euro Cylinder locks.

What's in the pack?

1 x Hoppe Atlanta UPVC Door Handle Lever Half

1 x Hoppe Atlanta UPVC Door Handle Pad Half

2 x Spring Cassettes

1 x Spindle

2 x Fixing Screws

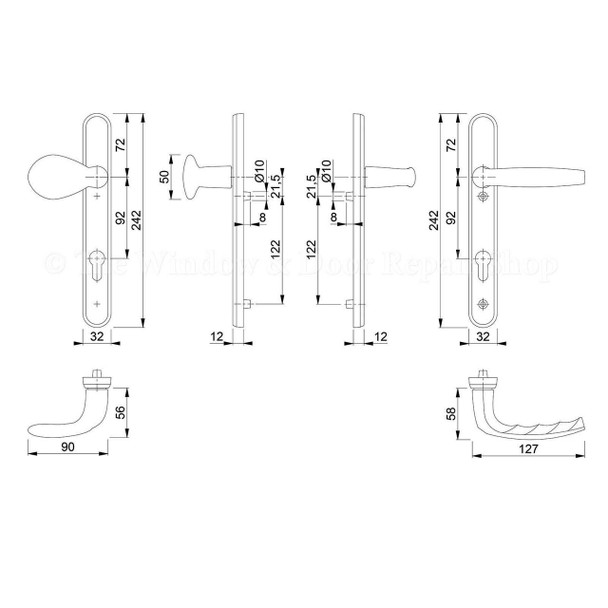

 Dimensions:

• Door Thickness: Suitable for 65mm -75mm
• Spindle Width: 8mm
• PZ Centres: 92mm
• Screw Centres: 122mm
• Backplate Width: 32mm
• Backplate Length: 242mm

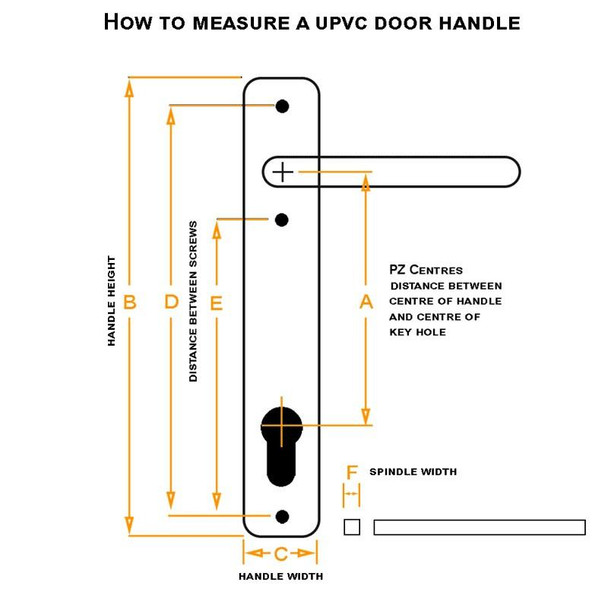

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 122 mm) and the distance from the centre of the handle spindle to the centre of the keyhole (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

Important please check the above critical measurements before ordering. Please see the diagram in the image gallery.
