Upvc Door Handle 92PZ 92mm 122mm Screw Fixing Centres Lever/Lever Atlanta Hoppe

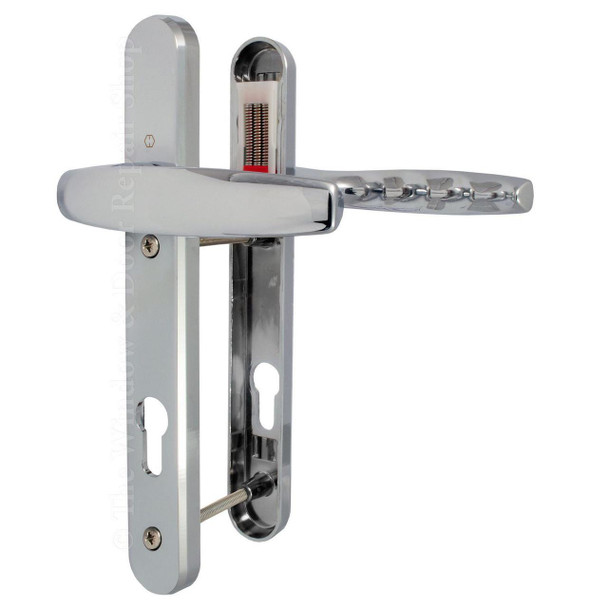

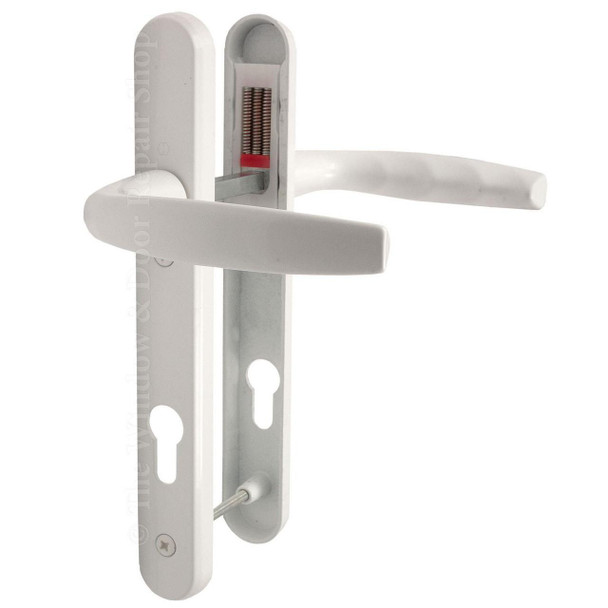

The new style ATLANTA door handle set comes with a high quality finish that is made to endure giving you years of use. The levers and backplate are manufactured in corrosion resistant aluminium: the polished chrome and polished brass sets are manufactured in solid brass and finished with Hoppe's special Resista® coating.

This sprung lever/lever handle set has been designed to be fully reversible to fit both left or right hung doors. The return spring cassettes are fitted over the spindle hole, ensuring that the handle is held at 90° with no sag. The Atlanta Door handle set is designed to replace handles with 92mm cylinder centres (distance from centre of handle spindle to centre of barrel) and distance between screw hole fixings of 122mm.

Features:

• Supplied as a pair complete with spindle and screws
• Fully Sprung with 2 x spring cassettes supplied
• Fully reversible to fit both left or right hung doors
• Cast aluminium levers & stamped aluminium backplate*
• * Polished chrome and polished brass sets are manufactured in solid brass with a Resista® coating

What's in the pack?

1 x Set of Hoppe Atlanta 92PZ Lever Door Handles

1 x Spindle 140mm long

2 x Screws M5 x 80mm

2 x Spring cassettes packed loose

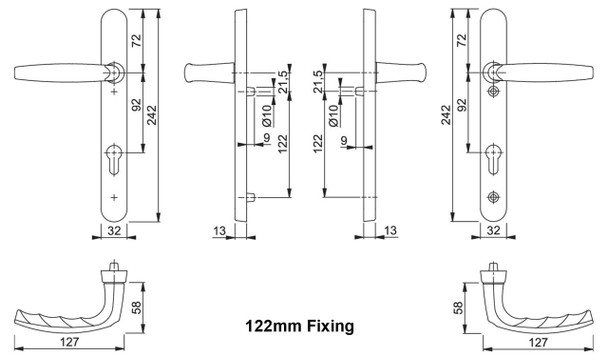

Dimensions:

• PZ Centres: 92mm
• Backplate width: 32mm
• Backplate length: 242mm
• Backplate depth: 13mm
• Lever length: 127mm
• Distance between screw hole centres: 122mm
• For doors from 58 - 72mm thick
• Spindle Size: 8mm

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 122 mm) and the distance from the centre of the handle spindle to the centre of the keyhole (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

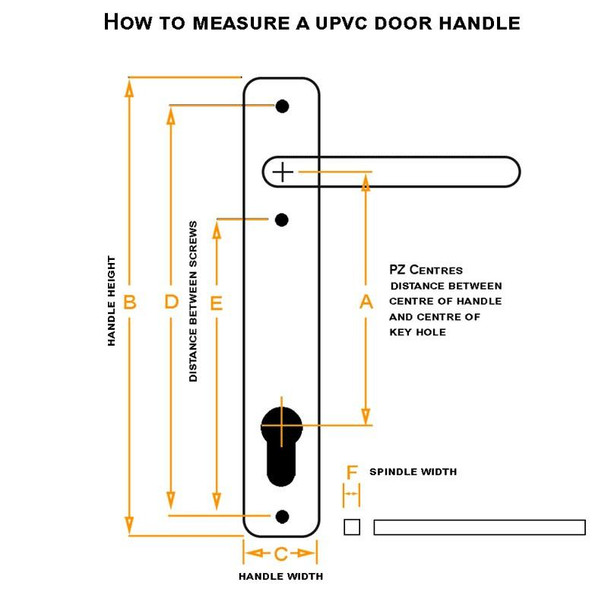

Important please check the critical measurements in the diagram in the gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
