TSS UPVC Door Handle Pair 70PZ 215mm Fixings

70PZ UPVC Door Handle Set Sprung Lever Lever Pair 215mm Fixing Centres TSS

This modern reliable 70mm PZ Door Handle from TSS is both stylish and practical and a perfect replacement for your old Cego handles. They are available in highly durable finishes and the Polished Brass, Polished Chrome and Silver have been Salt Spray tested for over 480 hours; all the handles have undergone cycle testing for over 50,000 operations.

The TSS 70PZ door handle is provided with spring cassettes and will return to an aesthetically pleasing 90° degree position when released. This handle is compatible with most 70PZ multipoint locks with an 8mm spindle. The TSS handle is also compatible with 70mm PZ GU Ferco Multipoint Locks when used with a 7mm spindle and spindle sleeves (7mm spindle and sleeves not included).

Features:

• Sprung: 2 x spring cassettes provided
• Will make a great replacement for the older style Cego handles
• Compatible with Ferco locks using a 7mm spindle and sleeves (not included)
• Supplied as a pair complete with spindle, spring cassettes & 2 x sets of colour co-ordinated fixing screws
• Material: Aluminium (Black & White), Zinc (Polished Brass, Polished Chrome and Silver)
• Polished Brass, Polished Chrome and Silver - Salt Spray tested for over 480 hours
• Cycle tested to 50,000 operations

What's in the pack?

1 x Pair TSS Lever Lever Handles (1 x Internal & 1 x External)

1 x Spindle 8mm x 125mm

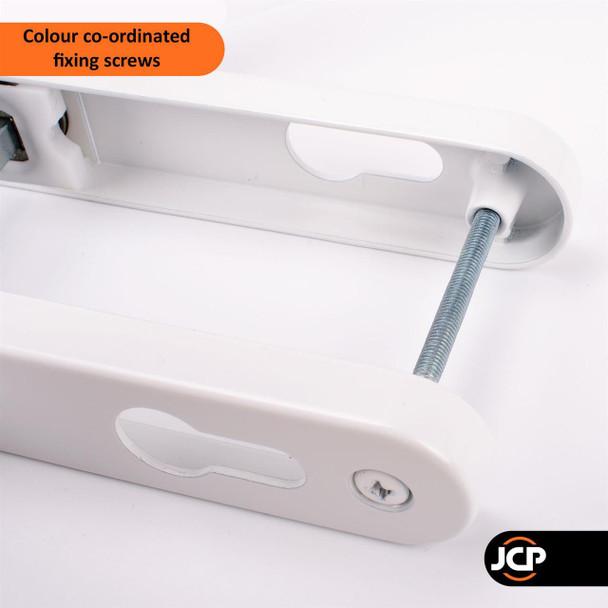

2 x Colour co-ordinated fixing screws 75mm

2 x Colour co-ordinated fixing screws 85mm

2 x Spring Cassettes

Dimensions:

• PZ Centres: 70mm
• Backplate width: 32mm.
• Backplate length: 246mm.
• Lever length: 127mm.
• Distance between screw hole centres: 215mm
• Top screw to spindle: 108mm
• Base of euro to bottom screw: 12mm
• For doors from 55 - 73mm thick.
• Spindle Size: 8mm

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 215mm) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 70mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

Important please check the critical measurements before ordering, please refer to the measurement diagram in the image gallery above.

Please note: These handles will fit Bowater Doors.

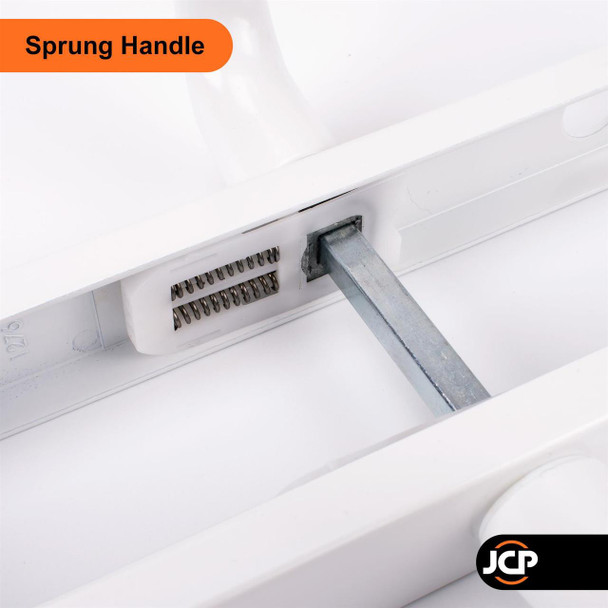

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
