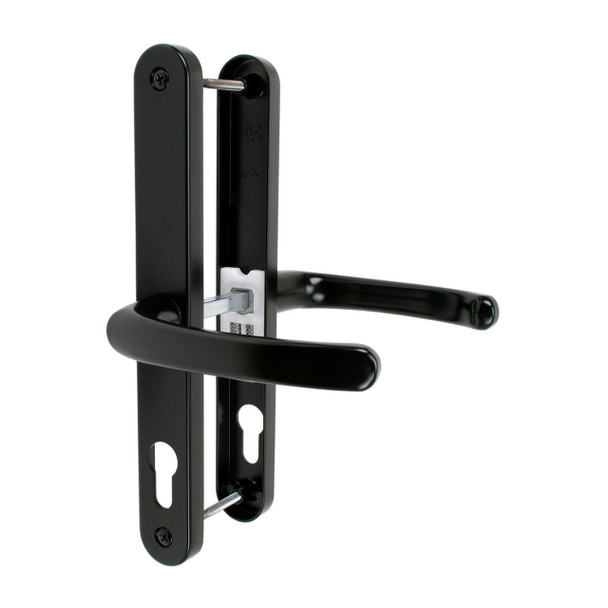

TSS UPVC Door Handle Pair 68mm PZ 215mm Fixings

TSS UPVC Door Handle Set 68PZ 68mm Lever Pair 215mm Fixing

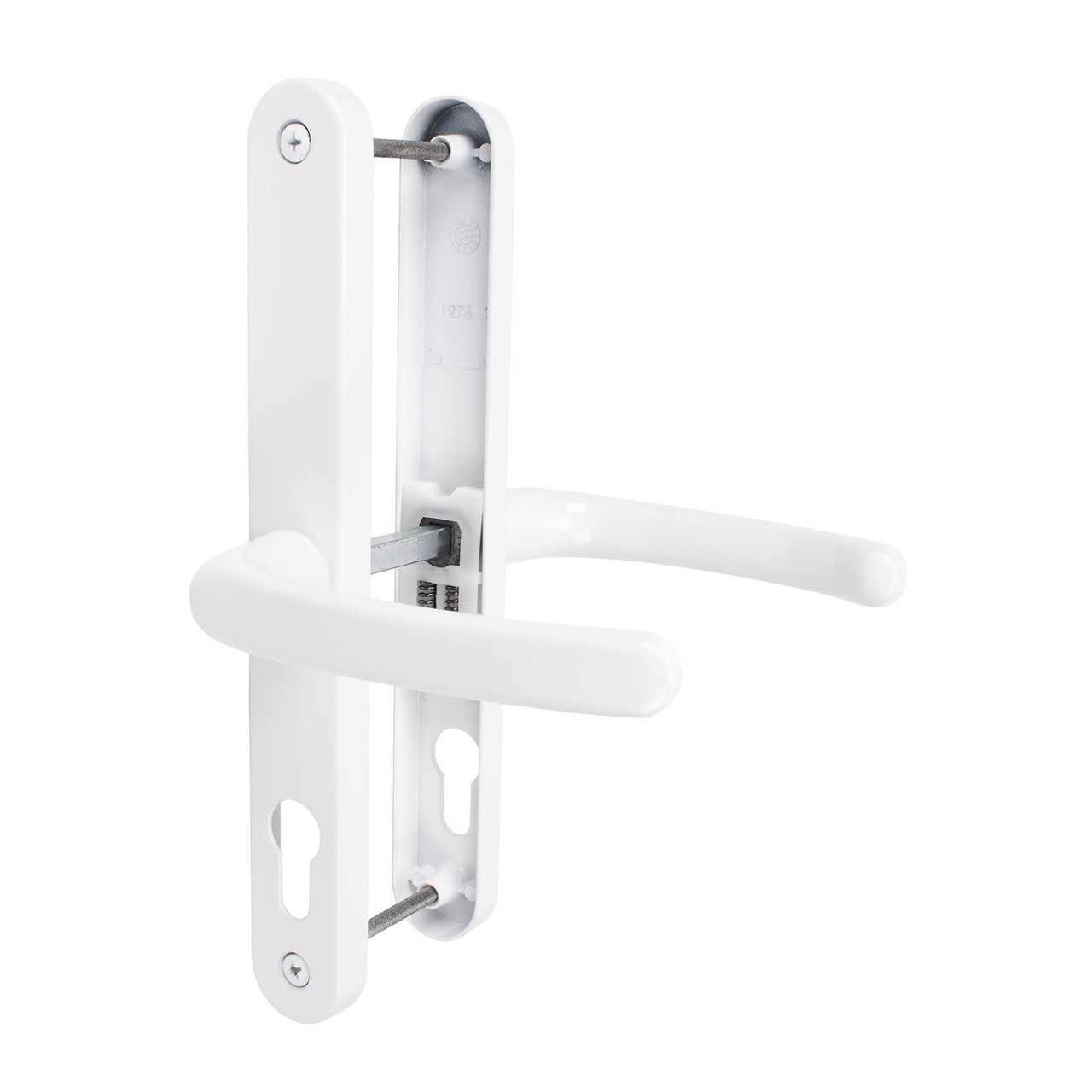

This contemporary door handle design from TSS features an elegant sprung handle and enhanced levers giving a comfortable easy grip. The levers are fixed to the backplate and by design, the handles are fully reversible. Spring cassettes are provided to place over the spindle to allow the levers to be sprung. Lever set on the backplate for exterior doors, to suit most 68PZ multipoint locks. Fixing lugs are supplied on both backplates for a secure fit. Supplied with colour co-ordinated fixing screws, return springs and spindle to suit door thickness from 60mm up to 72mm.

You may want to update your existing cylinder locks at the same time as replacing your handle. A range of locks is available from our shop to suit all budgets including Anti Snap, Anti Bump, Keyed Alike & Thumb Turns.

Features:

• Supplied as a pair complete with spindle, spring cassettes and screws
• Universal handing, levers are fully reversible by design
• Sprung version as standard
• Compatible with most 68PZ multipoint door locks

What's in the pack?

1 x Set of TSS 68PZ Lever Lever Door Handles

1 x Spindle

1 x Screw Pack

2 x Spring Cassettes

Dimensions:

• PZ Centres: 68mm
• Backplate width: 32mm
• Backplate length: 246mm
• Lever length: 128mm
• Distance between screw hole centres: 215mm
• Top screw hole to centre of spindle: 108mm
• Bottom screw hole to centre of spindle: 107mm
• For doors from 60 - 72mm thick
• Spindle Size: 8mm

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 215mm) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 68mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

Important, please check the critical measurements in the diagram in the gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however, if your existing handles are sprung they must be replaced with the same.
