Schlosser Technik Apto Cockspur UPVC Window Handle Kit

The Schlosser Technik Apto Cockspur Handle Kit is a high quality replacement and will fit most applications.

It's unique patented design will fit existing applications including 9mm, 13mm, 17mm & 21mm. Each kit is provided with three different sizes packers which can be neatly fitted to the handle to suit your existing application.

Available as Left or Right Hand

Features:

• High quality replacement cockspur window handle kit
• Provided with three differently sized packers which can be attached to suit applications from 9mm to 21mm
• Unique patent protected design
• Dead locking with key
• Simple & easy to fit
• Left & right hand available
• Fitting instructions on the back of each kit
• Due to the huge variety of window types we do not provide handle fixing screws for this item.

What's in the Pack?

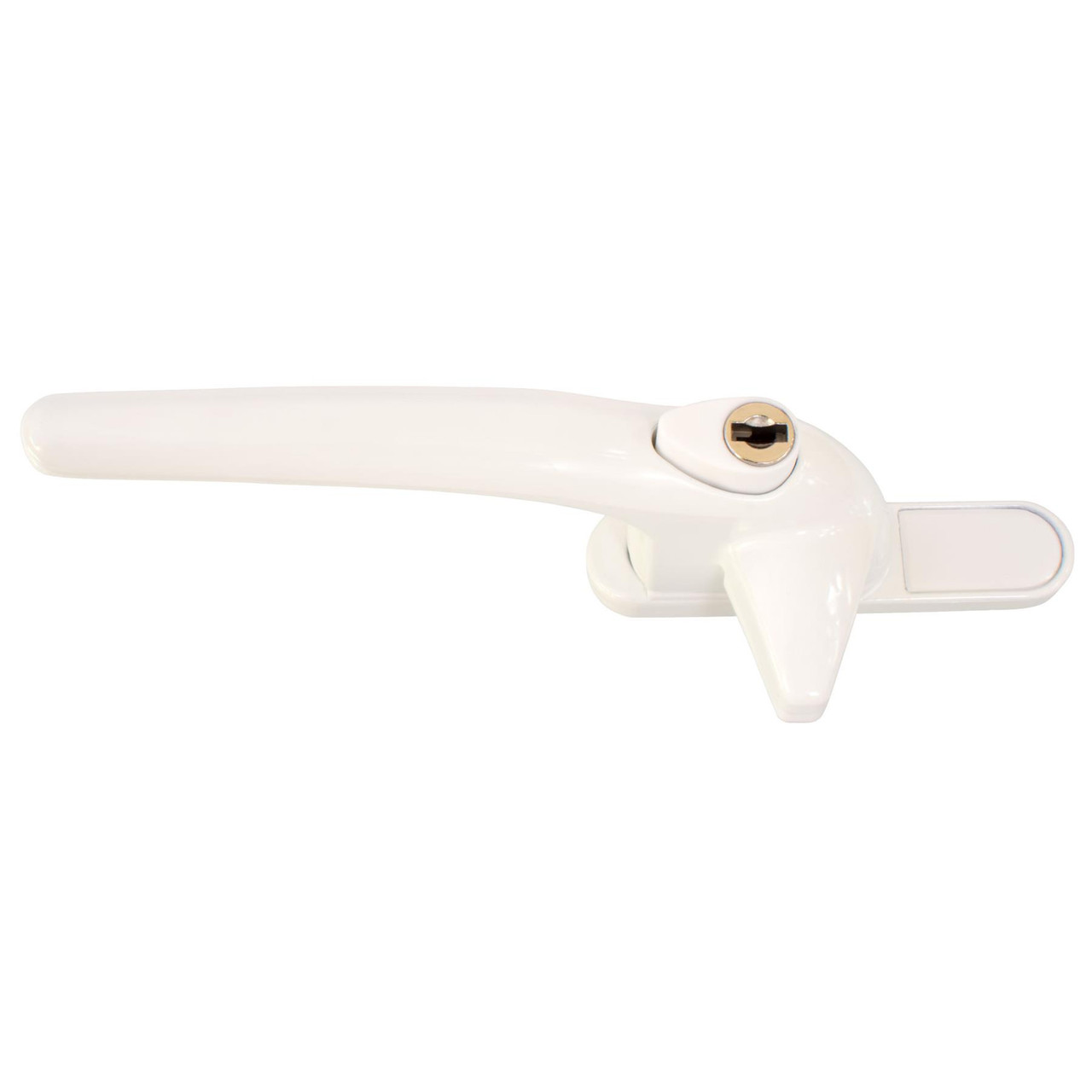

1x Apto Cockspur Window Handle

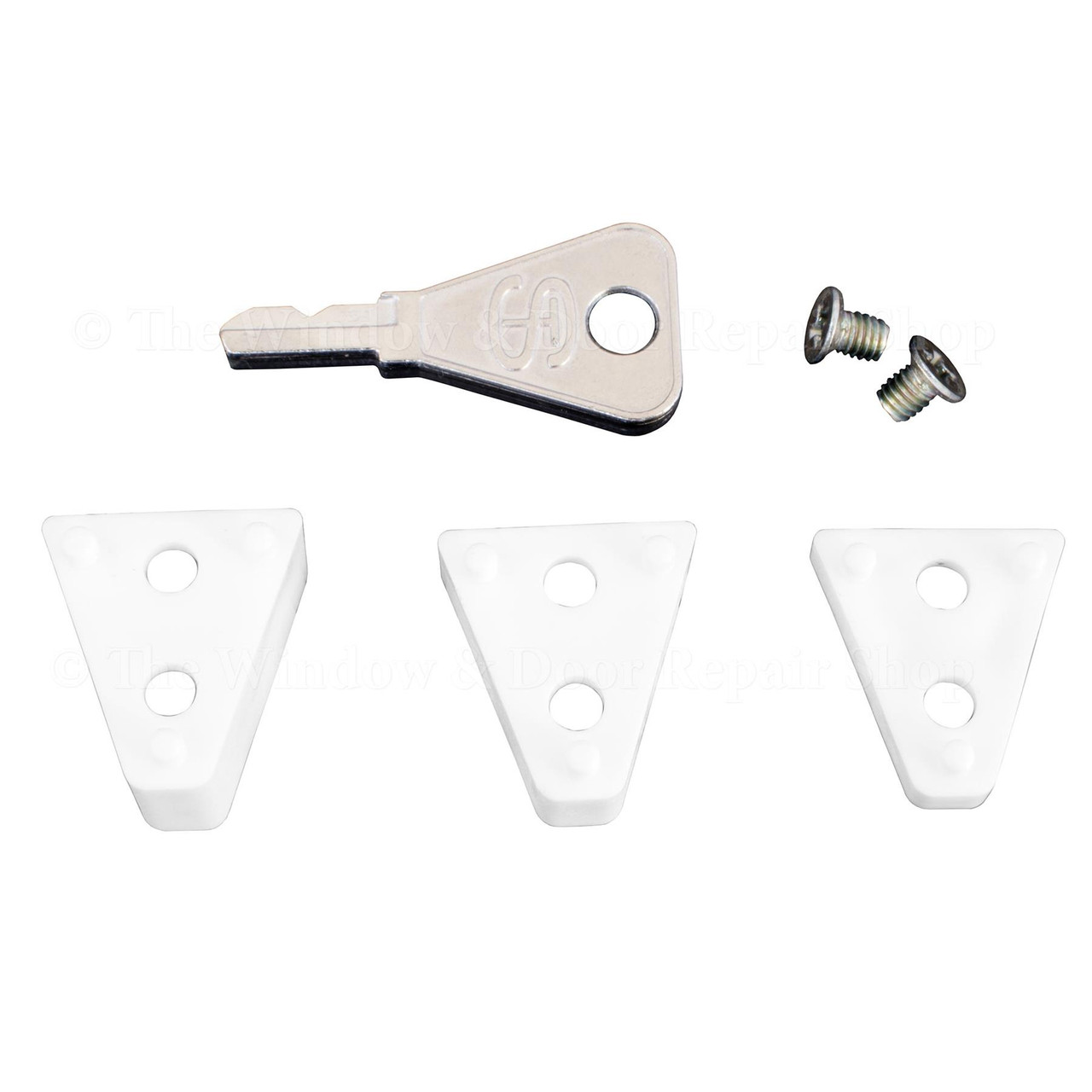

3x Packers

2x Packer fixing screws

1x Adhesive screw cap cover

1x Key

PLEASE NOTE: No handle fixing screws are provided

Dimensions:

This kit is suitable for most applications from 9mm to 21mm, varying heights can be achieved by using the different packers provided in the kit.

A diagram is available in the gallery.

Do I need a left or a right-hand handle?

First check the hand of your handle, for a top hung window that opens out - if the long part of the handle points to the left and the little spur points down you will need a left hand, if the long part of the handle points to the right and the little spur points down you will need a right hand. For side opening windows - if the long part of the handle points down and the little spur points to the right then you need a left hand handle, conversely if the long part of the handle points down and the little spur points to the left then you need a right-hand handle.

A diagram is available in the gallery.

How to remove your old cockspur window handle:

• First measure your old backset: you will need to measure from the baseplate (the part that sits flat against the window) to the underside of the handle nose; this will help you select the correct packer to fit to your new handle before installation.
• Remove the screw cover cap to reveal two screws, unscrew and remove.
• Move the handle to the open position which will show another two screws, remove as before.
• Once all four screws have been removed the handle should come off.

How to fit your new cockspur window handle:

• Select the correct spur packer to match the original handle and fix the packer to the underside of the spur with the two countersunk screws provided.
• Line up the new handle with the old screw holes.
• Before fitting the handle to the window, ensure that the correct type and length of screw is used to avoid penetrating the glazing cavity.
• Put the new screws in and secure into place.
• Once the screws at the top and bottom of the base are fitted put the screw cover (if applicable) over the screw hole at the top of the base.
