Saracen Roller Latch Shootbolt Gearbox Upvc Window Lock

No yet Review(s) Write a Review
Size Chart

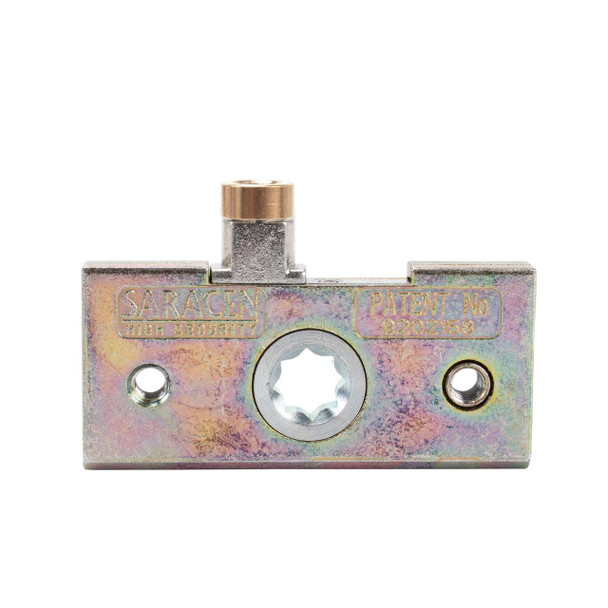

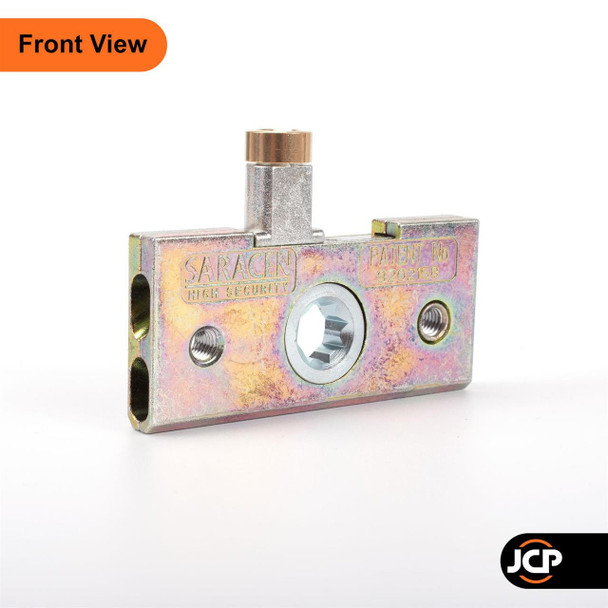

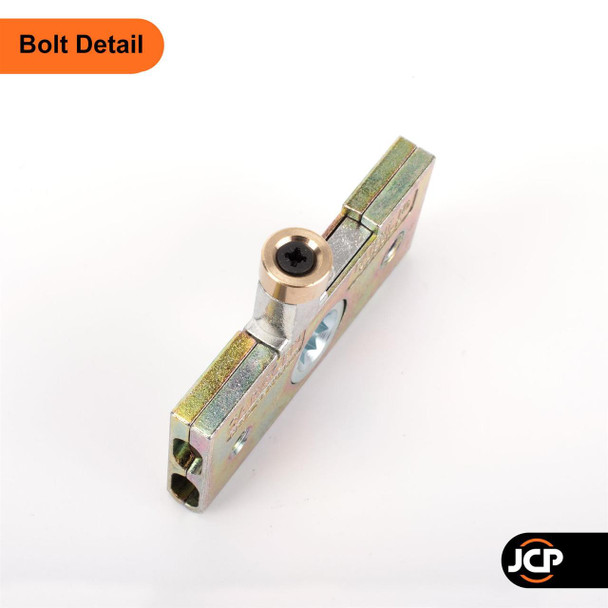

Saracen Roller Latch Shootbolt Gearbox Mechanism UPVC Window Lock (Gearbox Only)

These replacement gearboxes for Saracen Roller Shootbolt mechanisms are designed to operate with bi-directional threaded bolts to secure the window to the outer frame by locating into profile keeps.

The Saracen Roller Latch Rods for this Gearbox Lock are also available in our shop.


  • Corrosion resistance: Meets the Requirements of BS EN 1670:2007 Grade 3
  • Standard measurements of 43mm (handle screw hole centres)
  • Deadbolt Throw: 9.5mm or 11.5mm or 14.5mm
  • Material: Zinc Alloy
  • Fixings are not included.
  • Gearbox only- rods are available separately
What's in the pack?

1 x Laird Saracen HS Shootbolt Gearbox Mechanism


  • Gearbox length: 61mm
  • Gearbox height: 28mm
  • Screw centres: 43mm
  • Bolt heights: 9.5mm, 11.5mm or 14.5mm

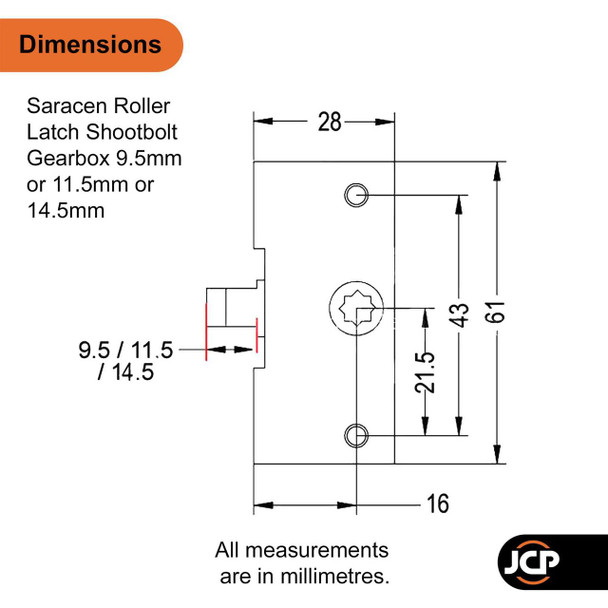

Please refer to the diagram in the gallery.
