Saracen FM Shootbolt Gearbox Upvc Window Lock

9 Review(s) Write a Review
£7.89
SKU:
LAIRD_SARACEN_FM_SHOOTBOLT_GEA.3167
Size Chart

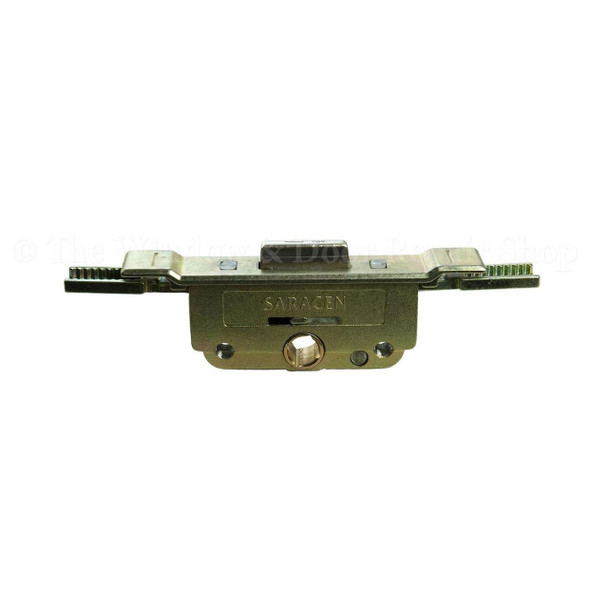

Saracen FM Shootbolt Gearbox Upvc Window Lock

The Laird Saracen / Aubi FM face fit replacement gearbox provides a multi-point locking solution for PVC-U windows. The gear box works with bi-directional bolts to secure the window to the outer frame locating into profile keeps

Features:

  • Available with 9.5mm or 11.5mm latch and 20mm or 22mm backsets
  • Corrosion resistance: Meets the Requirements of BS EN 1670:2007 Grade 3
  • Operation: Tested in excess of 30,000 cycles
  • Standard measurements of 43mm centre to centre
  • Meets the requirements of BS 7950

What's in the pack?

1 x Laird Saracen Shootbolt Gearbox Mechanism

How do I know which gearbox I need?

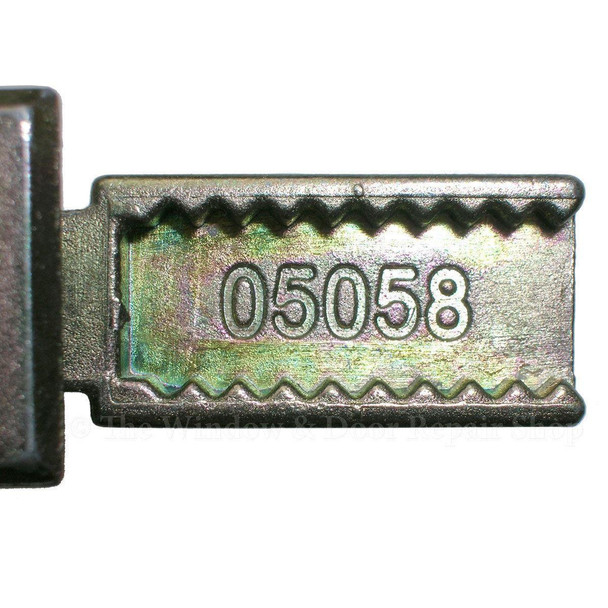

The Saracen/Aubi FM gearbox lock comes in two variations, Straight or Cranked faceplate. To determine the correct gearbox first remove the gearbox from your window then inspect the tooth acceptor plates located on either side of the gearbox, the Cranked faceplate will have the stamp code 05058, the Straight faceplate will be stamped 05060. Next check the deadbolt throw size - The deadbolt throw is stamped on the square deadbolt face (i.e. 115 = 11.5mm & 095 = 9.5mm). By identifying the correct gearbox and deadbolt throw, you will automatically have the correct backset.

Write a Review

9 Reviews Hide Reviews Show Reviews

  • Saracen FM Gearbox

    5

    Posted by Dave on 4th Feb 2022

    Absolute prefect replacement for broken gearboxes on windows
    Make sure you take measurements properly as there are different types
    I would heavily recommend talking with the company should you have any difficulties as they are very warm and knowledgeable

  • Saracen shootbolt 05060

    5

    Posted by John T. on 9th Sep 2021

    Bought several from them over time. They have the best price I can find.

  • Welcome replacemt

    5

    Posted by Peter on 8th Jul 2021

    Fits well (after a bit of jiggling) and works as good as new.

  • Gearbox

    5

    Posted by Steve G on 30th Jun 2021

    Although the numbers were the same my box was slightly different but low and behold this fitted perfectly and now the window locks and unlocks again, and quick delivery and a great price.

  • upvc window lock

    5

    Posted by Unknown on 30th Mar 2021

    Good product, works well and the best price.

  • review

    4

    Posted by paul proudfoot on 17th Mar 2021

    decent lock can be fiddly to fit if lone fitter make sure teeth sit in nice and snug on fitting

  • saracen fm shootbolt gearbox

    5

    Posted by ivorgittins gittins on 27th Jan 2021

    perfect replacement would highly recomend

  • Just what we needed

    5

    Posted by Michelle on 16th Aug 2020

    Simple to order, arrived quickly, exact replacement for the broken gearbox on our kitchen window. Once we understood the problem and ordered this part, it was very quick to fit - window fixed.

  • Great

    5

    Posted by Steve on 3rd Aug 2020

    Quick delivery, great price, does what is says.
