Mila ProLinea Breaksafe Half Euro Cylinder Garage Door Lock

Half Euro Cylinder Garage Door Lock Balcony Mila ProLinea BreakSafe

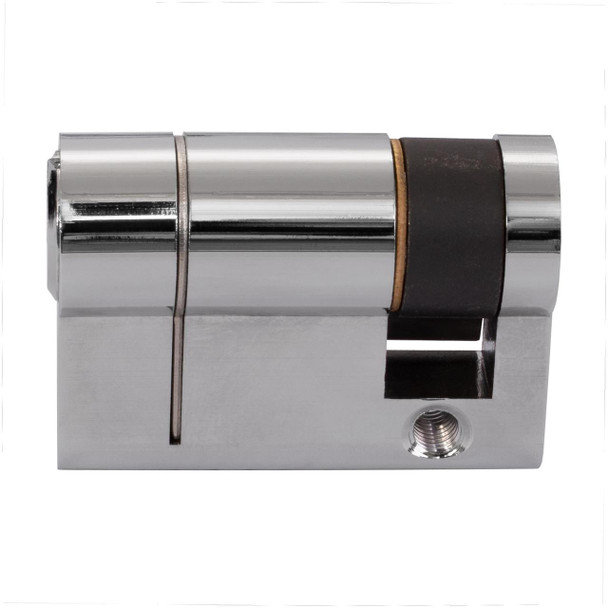

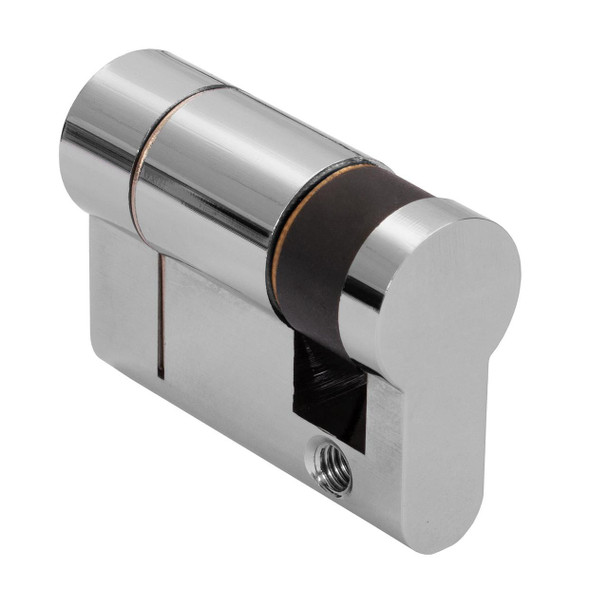

The Mila ProLinea BreakSafe half euro cylinder door lock brings you BreakSafe technology helping to secure your home and properties. The ProLinea BreakSafe cylinder from Mila is a retro-fit lock, once fitted you simply turn the key to open or lock your door. Suitable for balcony, terrace and patio doors using an exterior handle blank; garage doors or any door requiring access from the inside only; excellent security for both commercial and domestic use.

Please note that one half of the cylinder (10mm) is blank, access is only from one side using the key.

Features:

• Tested to BS EN 1303:2015, Grade 6
• Classification: 16000C60
• Dedicated sacrificial line and anti-drill
• 6 pins
• Suitable for balcony, terrace, garage or any door requiring access from one side only

What's in the pack?

1 x Mila ProLinea Breaksafe Half Euro Cylinder

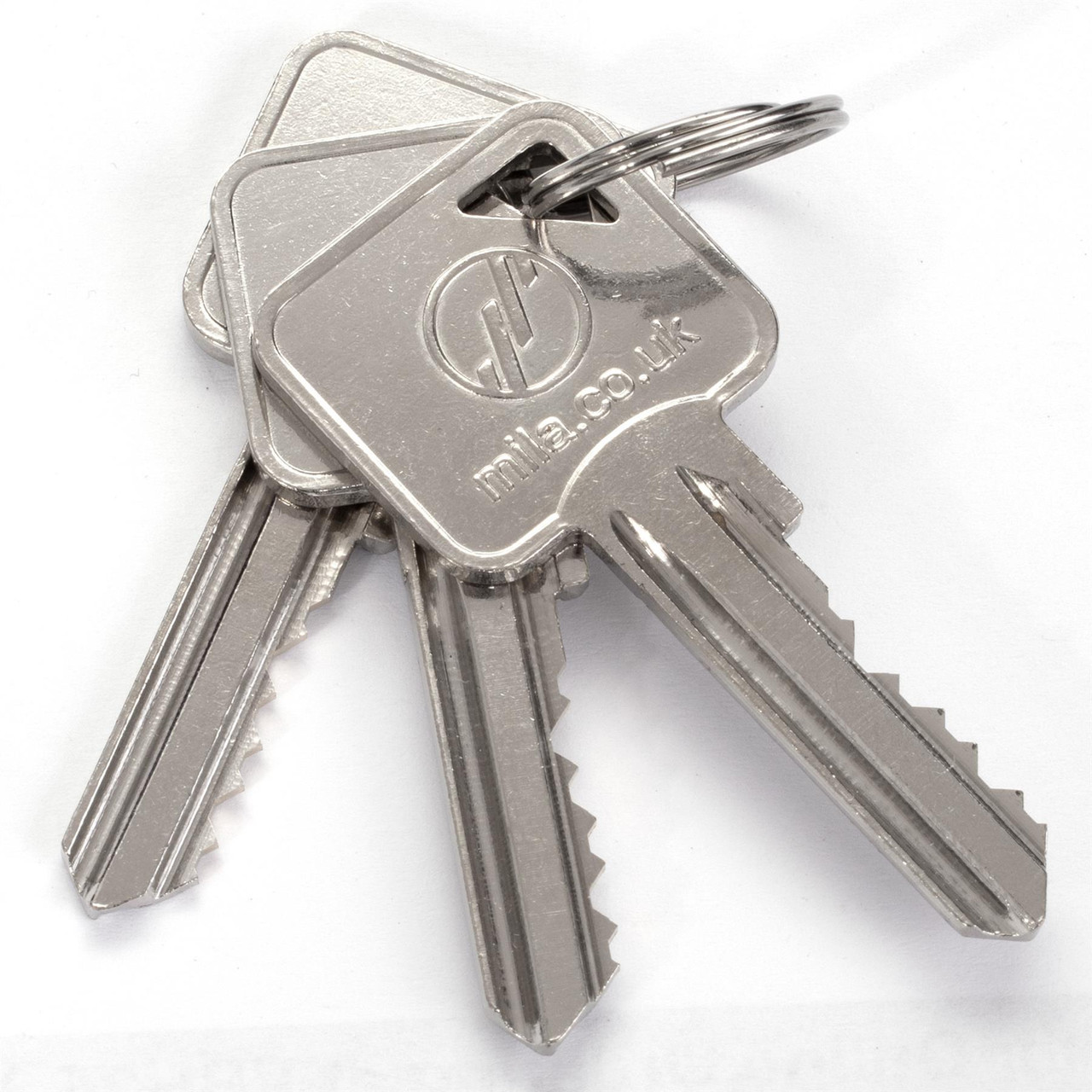

3 x Keys (as standard)

1 x Fixing Screw

How do I measure a Mila ProLinea BreakSafe half door cylinder?

The easiest way to measure your old euro cylinder lock is to remove it from your door, taking note which end you will need the 10mm (blank).

Measurement A: Measure from one side to the centre of the screw hole. A = 45mm

Measurement B: Measure from the other side to the centre of the screw hole. B = 10mm

The cylinder size you would need to order in this example case is 45/10mm
