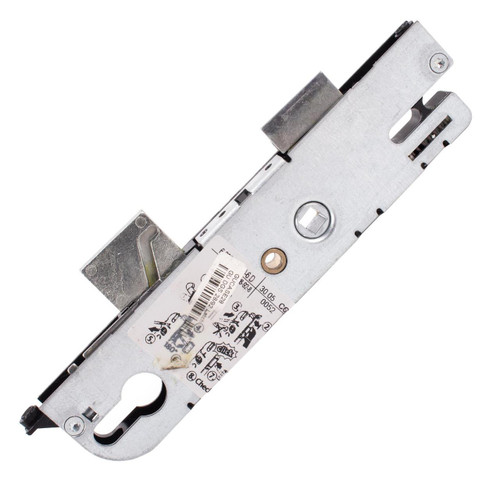

GU New Style Gearbox for Multipoint Door Lock 28mm Backset 92 PZ

GU Gearbox Door Lock Centre Case Replacement Mechanism 28mm Backset Lift lever

These are genuine GU Lift Lever replacement gearboxes to suit new style GU door locks. If you're having problems with your door lock the gearbox is almost always the cause of the problem.

Features:

• Reversible latch for left or right handed doors
• Single spindle - for lever / lever operation
• Lift lever
• Replacement gearbox for new style GU door locks
• N.B. Screw holes are unthreaded, please use existing screws to create a new thread.

What's in the pack?

1 x GU Centre Door Gearbox Replacement for GU New Style 28mm Backset

Dimensions:

• Lock case length: 202mm
• Lock case depth : 43mm
• Lock case width: 14mm
• Centre of latch to centre of deadbolt: 85mm
• Deadbolt throw: 20mm
• Deadbolt width: 32mm
• Deadbolt thickness: 7mm
• PZ: 92mm
• Backset: 28mm

What should I check before ordering a new door lock gearbox case?

The most important measurements are the backset and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.

How to reverse the latch:

Before fitting make sure the latch is facing the correct way, if not it can be easily reversed by applying a slight pulling force and rotating it 180° to the required position.
