Fab & Fix Composite Door Hinge Haven Intelligent Strength

No yet Review(s) Write a Review

Composite Door Hinge 3D Low Profile Haven Intelligent Strength also Timber Doors

Introducing the Fab & Fix Haven Intelligent Strength Composite Door Hinges, the pinnacle of performance and design for your composite doors. These low-profile hinges are specifically engineered for composite doors, offering an unobtrusive appearance that seamlessly blends with any door style. Featuring a precision fit, whether with or without a door liner, these hinges provide unmatched stability and strength. The integral fixing lugs and security anti-lift pin ensure that your door remains securely in place, preventing intruders from removing the pin and lifting out the door. With a 30kg sash weight load per hinge, you can confidently support up to 90kg with just three hinges, making them the optimal choice for all composite door types.

The Fab & Fix Haven Intelligent Strength Composite Door Hinges also offer versatile installation options. The sash piece can be routed into the door, slotted into the faceplate liner, or screwed directly onto the edge of the sash, providing flexibility to suit all composite slabs. For added convenience, these hinges allow for final tweaks and perfect alignment. Cover caps for horizontal adjustment holes complete the sleek, professional look. Choose Fab & Fix Haven hinges for dedicated performance and a discreet appearance, ensuring your doors not only look great but function flawlessly.


  • Salt spray tested to 480 hours (BS EN 1670: Class 5)
  • Operation tested in excess of 200,000 cycles
  • Tested with 3 hinge up to 90kg sash weight
  • For use on inward and outward opening composite and timber doors

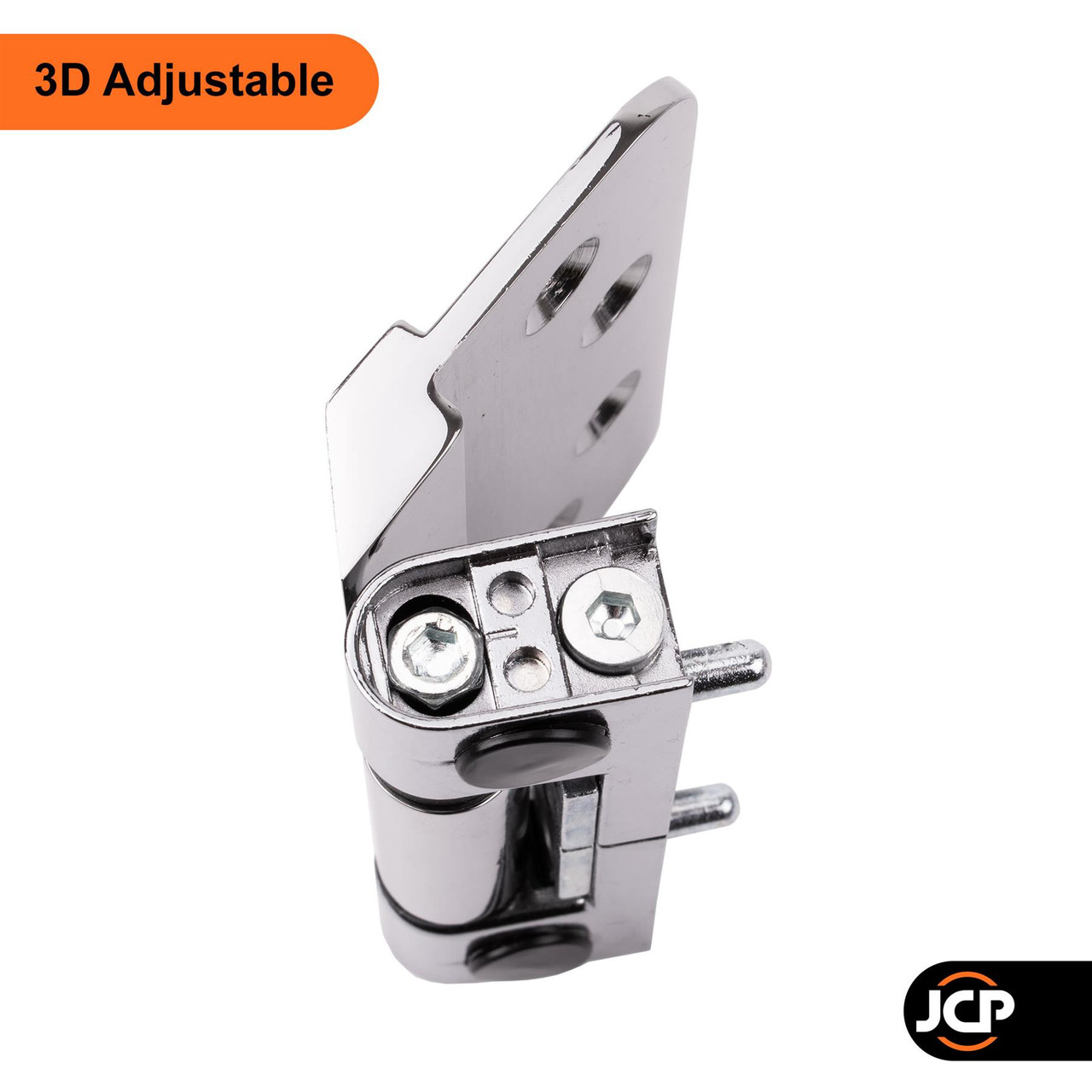

  • Fully 3D adjustable. Horizontal +/-2mm; height +/-3mm; compression +/-1.5mm.
  • Security anti-lift pin
  • Low profile design

What's in the pack?

1 x F & F Haven Intelligent Strength Composite Door 3D Hinge (Frame & Sash)

2 x End Caps

4 x Adjuster Caps

2 x Bushes (Top & Bottom)

1 x Hinge Pin


  • Hinge frame height: 96mm
  • Hinge frame depth: 28mm
  • Hinge frame width: 16mm
  • Hinge sash height: 100mm
  • Hinge sash width: Please refer to sash diagram
  • Distance between screw centres: Please refer to diagrams
  • Distance between fixing lugs: 48mm
  • 3D adjustment: Horizontal +/-2mm; height +/-3mm; compression +/-1.5mm.

For further details please see the technical diagram in the gallery. All measurements are approximate.


To maintain the quality finish and appearance of our external hardware, we recommend regular cleaning. Use a clean cloth soaked in warm water and mild detergent to wipe the hardware every month. Avoid using heavy-duty cleaners, especially those containing Chlorine or Potassium. Additionally, lightly lubricate moving parts with a light non-acidic mineral oil, such as "3 in 1", at least twice a year. Periodically check for necessary adjustments and tighten fixings to ensure optimal operation. This maintenance is particularly crucial if the products are installed within a 25-mile radius of coastal areas, building sites, or large industrial areas, where more frequent cleaning may be necessary.
