ERA Maxim Multispindle uPVC Window Handle Universal Inline Espag Handle

ERA Maxim Multi-Spindle Inline Window Handle Espag Locking 9mm, 15mm, 30mm, 43mm and 55mm spindles

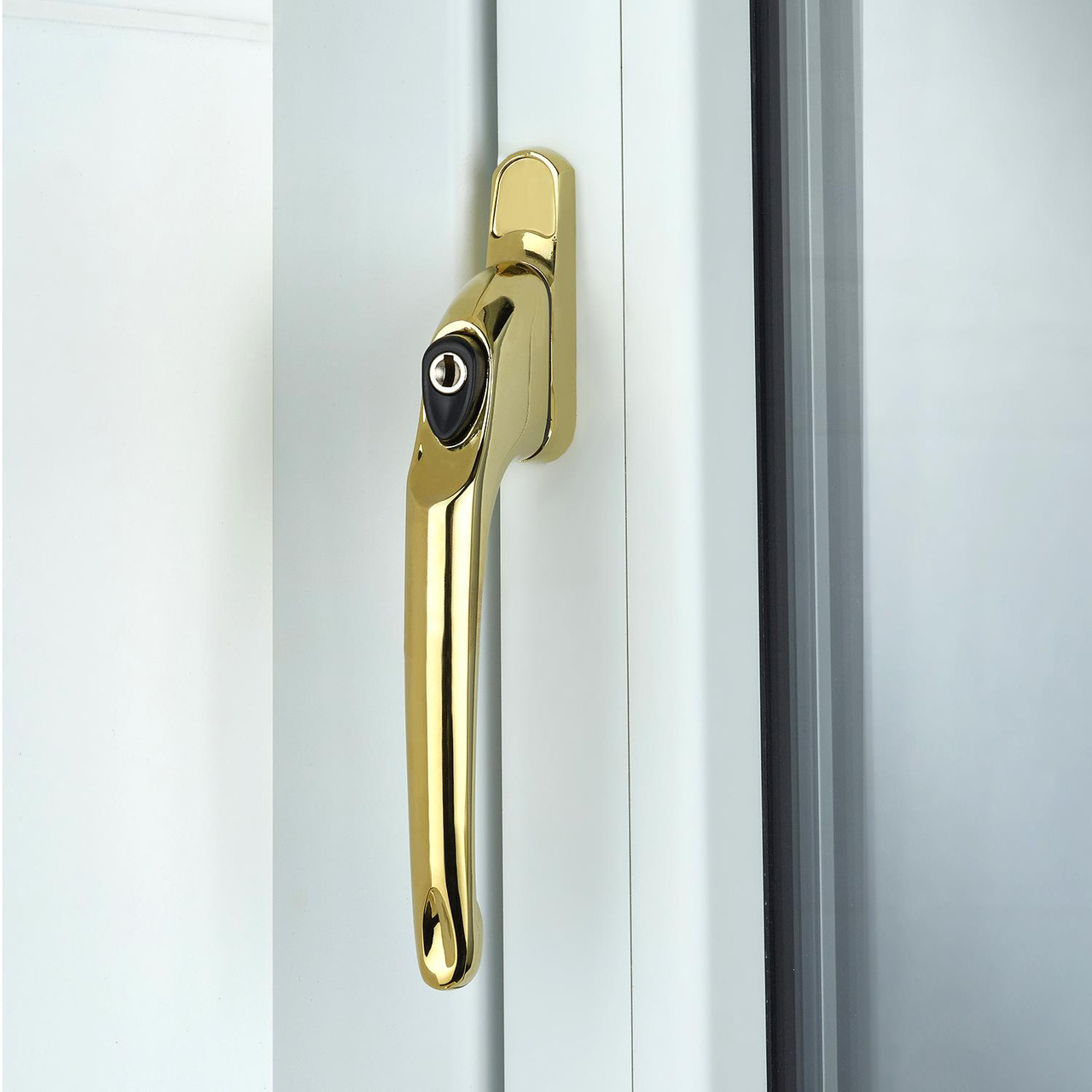

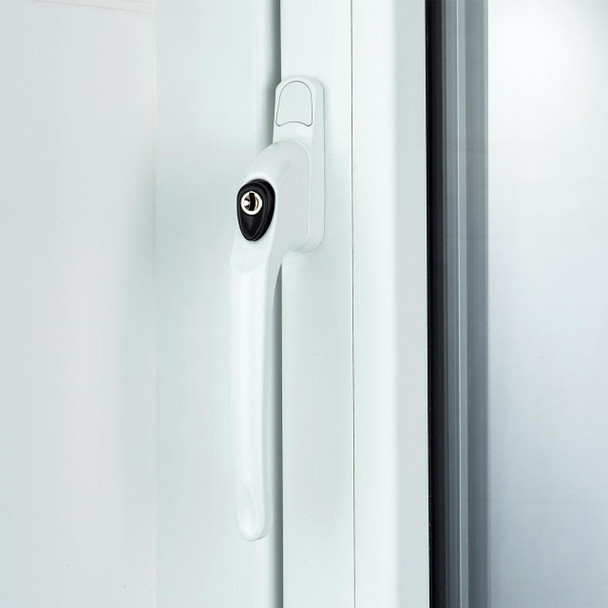

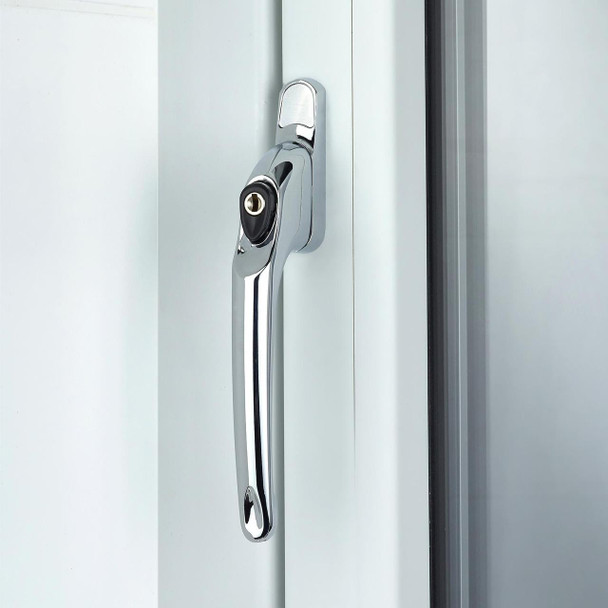

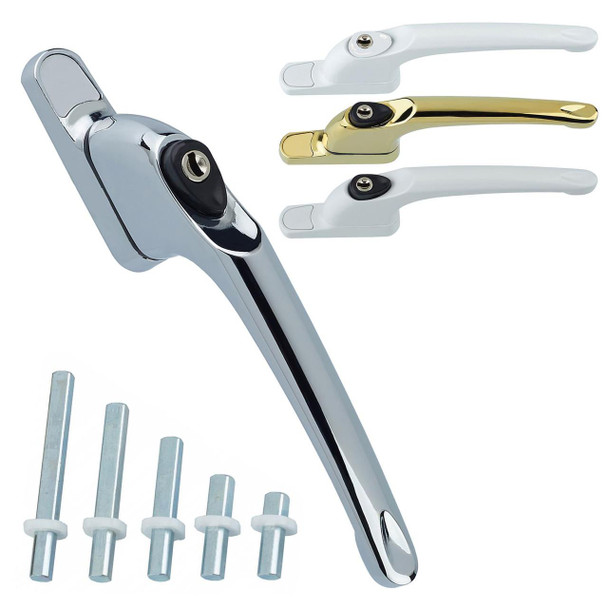

ERA Maxim Multi-Spindle inline espag - a beautiful modern stylish design with a teardrop feature and recessed button; a very popular, easy to use handle, with a push to open locking mechanism. They are manufactured with a hard wearing finish and lock automatically on closing, creating a solid click - giving you peace of mind that your window is locked; the handle can also be key locked for additional security. Each handle is provided with five spindles 9mm, 15mm, 30mm, 43mm and 55mm these will suit most casement windows.

Made to an industry standard of 43mm (the distance between screw hole centres), this handle is universal and will fit most espagnolette and shootbolt systems.

Features:

• Modern stylish contoured handle for ease of use
• Push to release locking mechanism
• Endurance tested to 50,000 operations
• Supplied with 1 key, 1 cover plate, 5 spindles and 2 screws as standard
• Corrosion Resistance: Meets the requirements of BS EN 1670:2007 Grade 3 (96 hours)

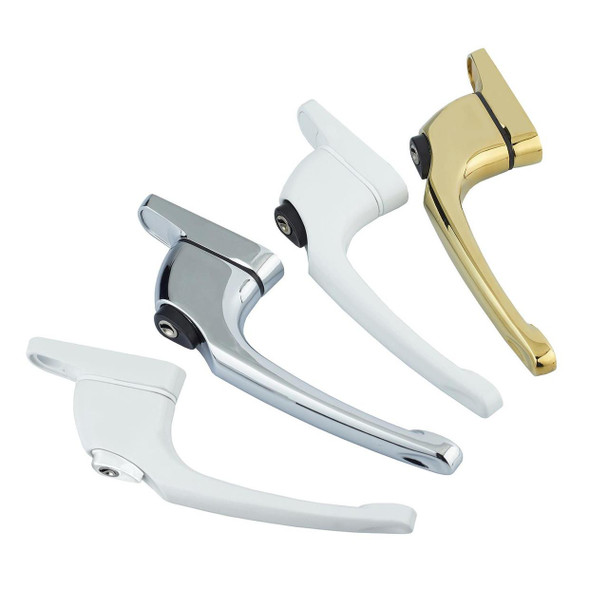

• Coatings: White Powder Paint. Polished Gold and Chrome electroplated to BS EN12540:2000
• Handle Grip and Backplate: Zinc Alloy Castings to BS EN12844:1999 Aluminium Alloy to BS EN 1676:1997
• Cylinder: Zinc Alloy Casting and Nickel Plate
• Screw Cover: Push to fit White elastomer. Self adhesive Gold or Silver anodised aluminium
• 10 Year manufacturers mechanical guarantee

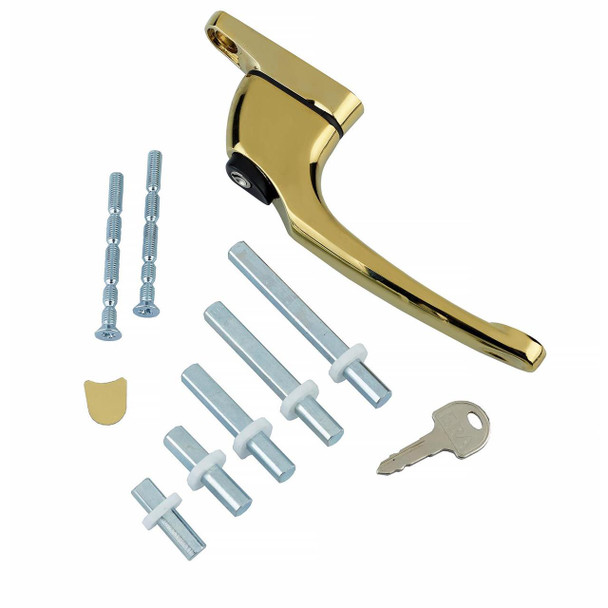

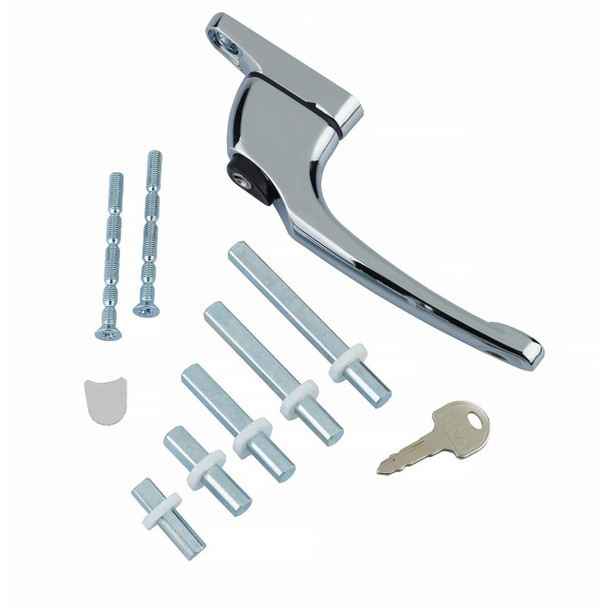

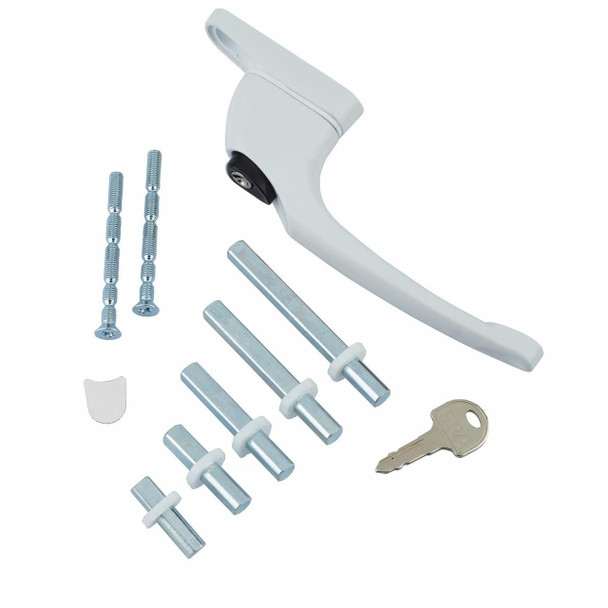

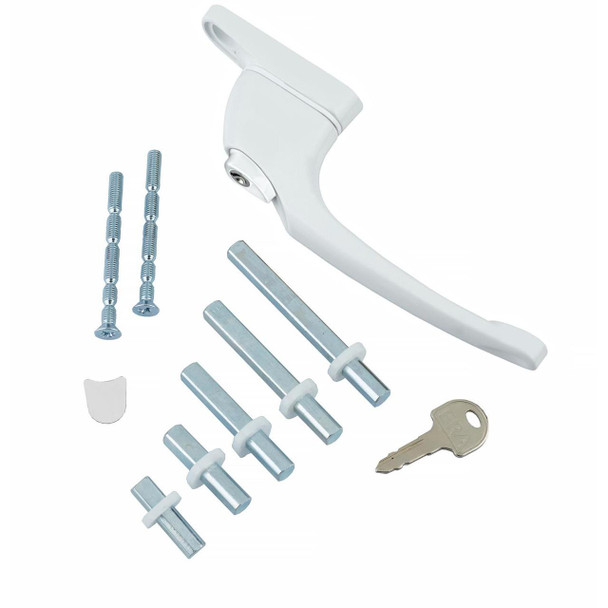

What's in the pack?

1 x ERA Maxim Multi-Spindle Inline Window Handle

5 x Spindles 9mm, 15mm, 30mm, 43mm and 55mm

1 x Key

1 x Cover Plate

2 x Snap Off Screws

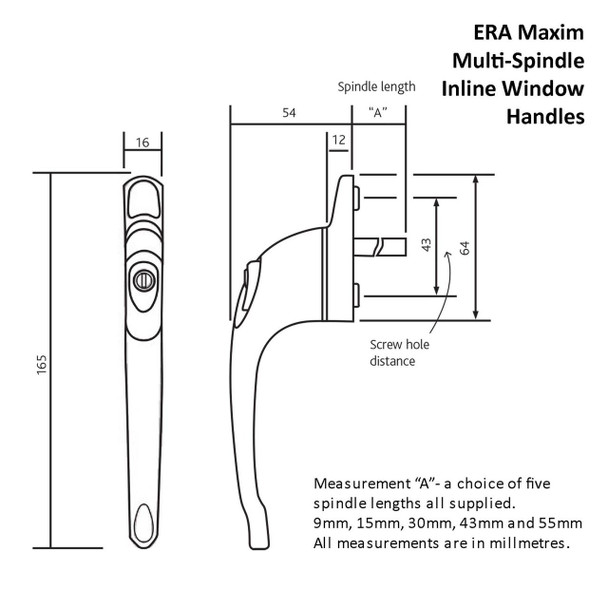

Dimensions:

What do I need to check before ordering a handle?

Handle Screw Hole Fixing Centres:

Fortunately most espag handles are made to industry standards with 43mm between the screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Handing:

These handles are of the inline type and are not specifically handed. An inline handle will fit a left or right handed opening window.

Spindle Length:

The spindle is measured from the base of the handle to the end of the spindle. Each handle is provided with five spindles 9mm, 15mm, 30mm, 43mm and 55mm these should suit most casement windows.
