Bi-Fold Door Shoot Bolt Cone & Guide Kit Pair For 10mm Rods for A1 Systems Debar
The A1 Bi-Fold Door Shoot Bolt Guide & Cone Pair kit will enhance the security and functionality of your Cortizo, Dewall, Alunet, Alutech and Eurocell bi-fold A1 systems. The Debar Bi-Fold Door Shoot Bolt Rod End Guide, secured and mounted to the face of the sash, works in conjunction with the Debar Bi-Fold Door Shoot Bolt Rod End Cone, which is screwed onto the end of the M10 threaded shoot bolt rod. Together, they guide the locking mechanism into place and ensure effective compression for secure and reliable operation.
This precision-engineered kit, proudly manufactured in the UK under BS EN ISO 9001:2019 quality standards, includes 2 cones, 2 guides and screw pack, designed specifically for seamless compatibility with your A1 Bifold system.
Features:
- Suitable for Cortizo, Dewall, Alunet, Alutech and Eurocell systems
- UK-Made Bi-Fold Door Parts
- Fits M10 threaded bar
- PAS24 Compliant
- Quality manufactured to BS EN ISO 9001: 2019

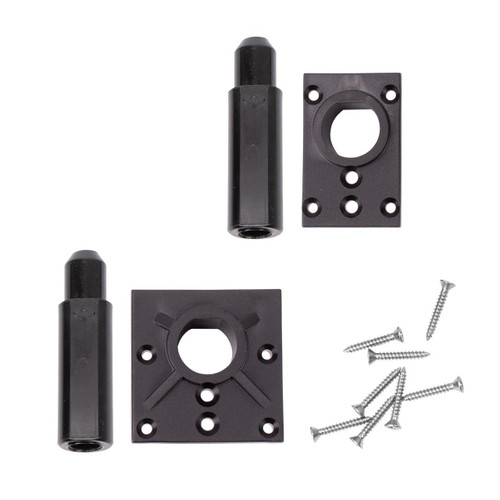

What's in the Pack?
2 x A1 Shoot Bolt Guides
2 x A1 Shoot Bolt Cones
1 x Screw Pack

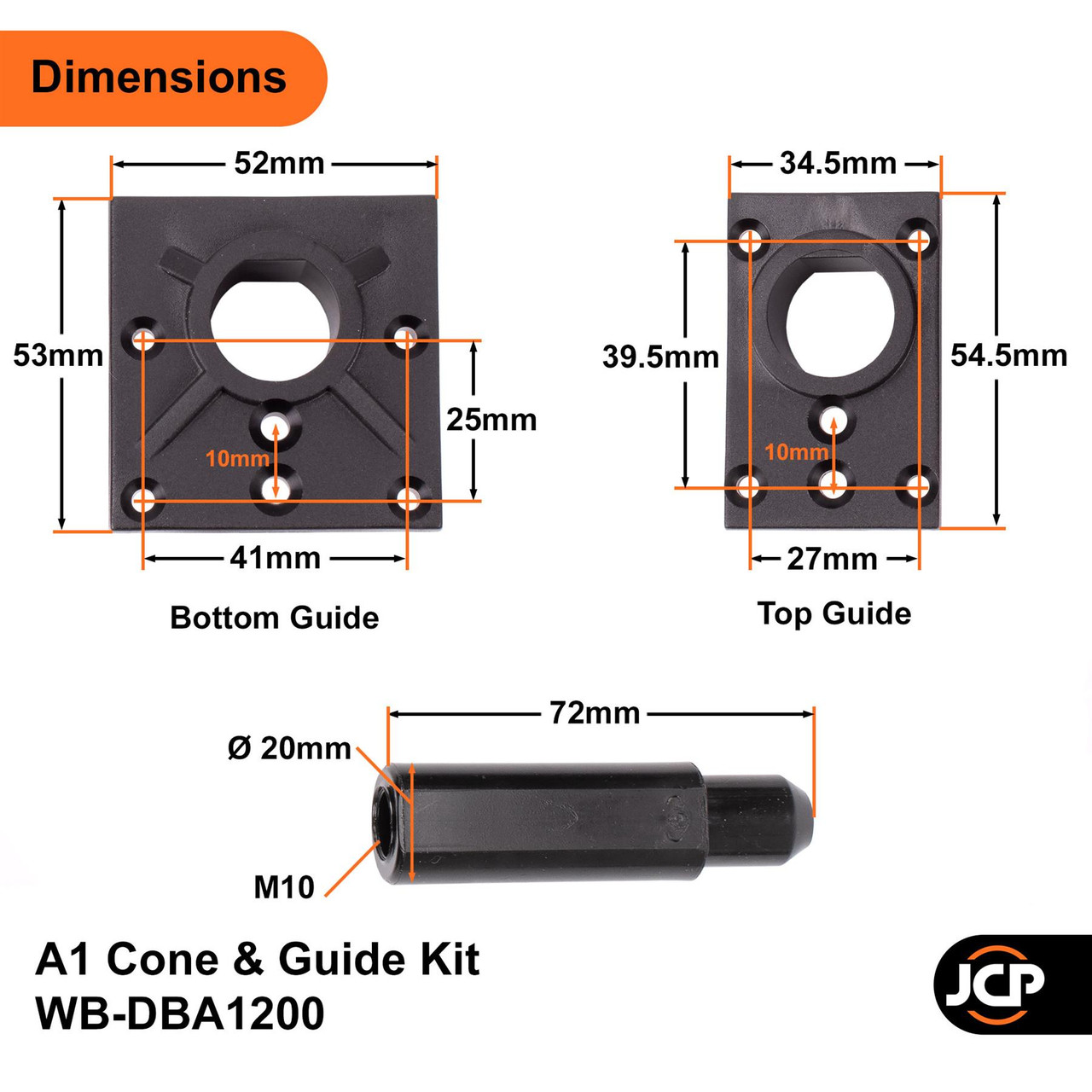

Dimensions:
- Cone height: 72mm
- Cone diameter: Ø 20mm
- Bottom guide length: 53mm
- Bottom guide width: 52mm
- Bottom guide depth: 41mm
- Top guide length: 54.5mm
- Top guide width: 34.5mm
- Top guide depth: 28mm
- Takes shootbolt rods: 10mm (M10)
- Screw centres: Please refer to dimensions image
All measurements are approximate.
Please refer to the dimensions image in the gallery.
