Bifold Door Hinge Pull Handle Open In or Open Out D Shape Handle Debar A1 System
The Debar A1 System bi-fold door pull handles are ideal for use on bi-fold doors systems such as Cortizo, DeWall, Alunet, Alutech and Eurocell. Discover the sophistication and superior functionality of our 'D' Shaped Hinge Pull Handles, tailored for both inward and outward opening doors. Engineered from high-quality die-cast Zinc, these handles boast a sleek, ergonomic design that ensures maximum comfort during use. Their slender profile, matched perfectly with the hinge knuckle size, offers a seamless, aesthetically pleasing look that complements any door. Featuring an integrated sealing strip between the hinge leaves, these handles elevate weather resistance, safeguarding your home against the elements.
Designed to support doors weighing up to 120kg and measuring up to 1200mm in width, our hinge pull handles are not just durable but also undergo rigorous testing. They are proven to endure over 10,000 open and close cycles at maximum weight, ensuring long-lasting, reliable performance. Complying with the highest quality standards, including BS EN ISO 9001:2019 certification and PAS24 security testing, alongside comprehensive weather resilience as verified by BS 6379 parts 1 and 2. This commitment to excellence provides you with unparalleled peace of mind and underscores our dedication to delivering dependable, high-quality hardware solutions.
Features:
- Suitable for Cortizo, DeWall, Alunet, Alutech and Eurocell systems
- Hinges fitted with a pull handle
- Available as Open In or Open Out options
- Improved weather sealing properties
- Security tested to PAS 24
- Weather tested to BS 6379 part 1 & 2
- Cycle tested bi-fold set at maximum weight to 10,000 times open/close
- Quality manufactured to BS EN ISO 9001:2019
- Suitable for door panels up to 120kg and 1200mm wide
- Fittings supplied
What's in the Pack?
1 x Debar A1 Bi-Fold Door Hinge Handle Open In or Open Out
1 x Fixing Pack

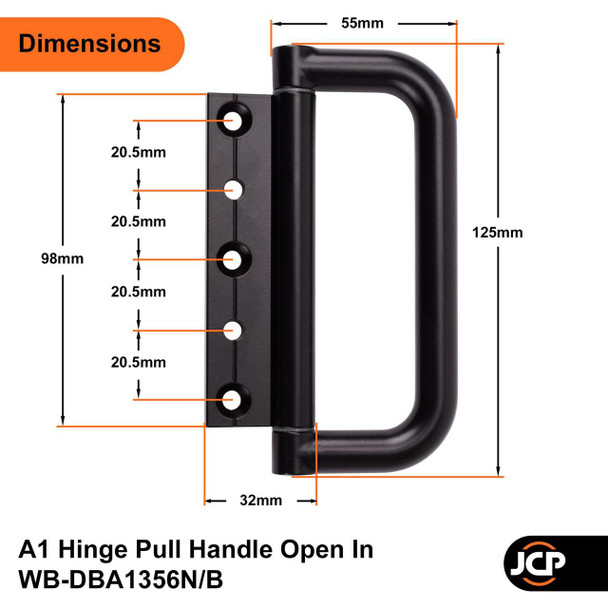

Dimensions:
- D handle height: 125mm
- D handle width: 55mm
- Hinge leaf height: 98mm
- Hinge flags and barrel width (open out): 49.5mm
- Hinge flag and barrel width (open in): 32mm
- Screw centre to screw centre: 20.5mm
All measurements are approximate.
Please see the diagram in the gallery.
