Description
Robus Compact Bi Fold Door Shoot Bolt Lock Slim Gearbox Intermediate Panel Debar

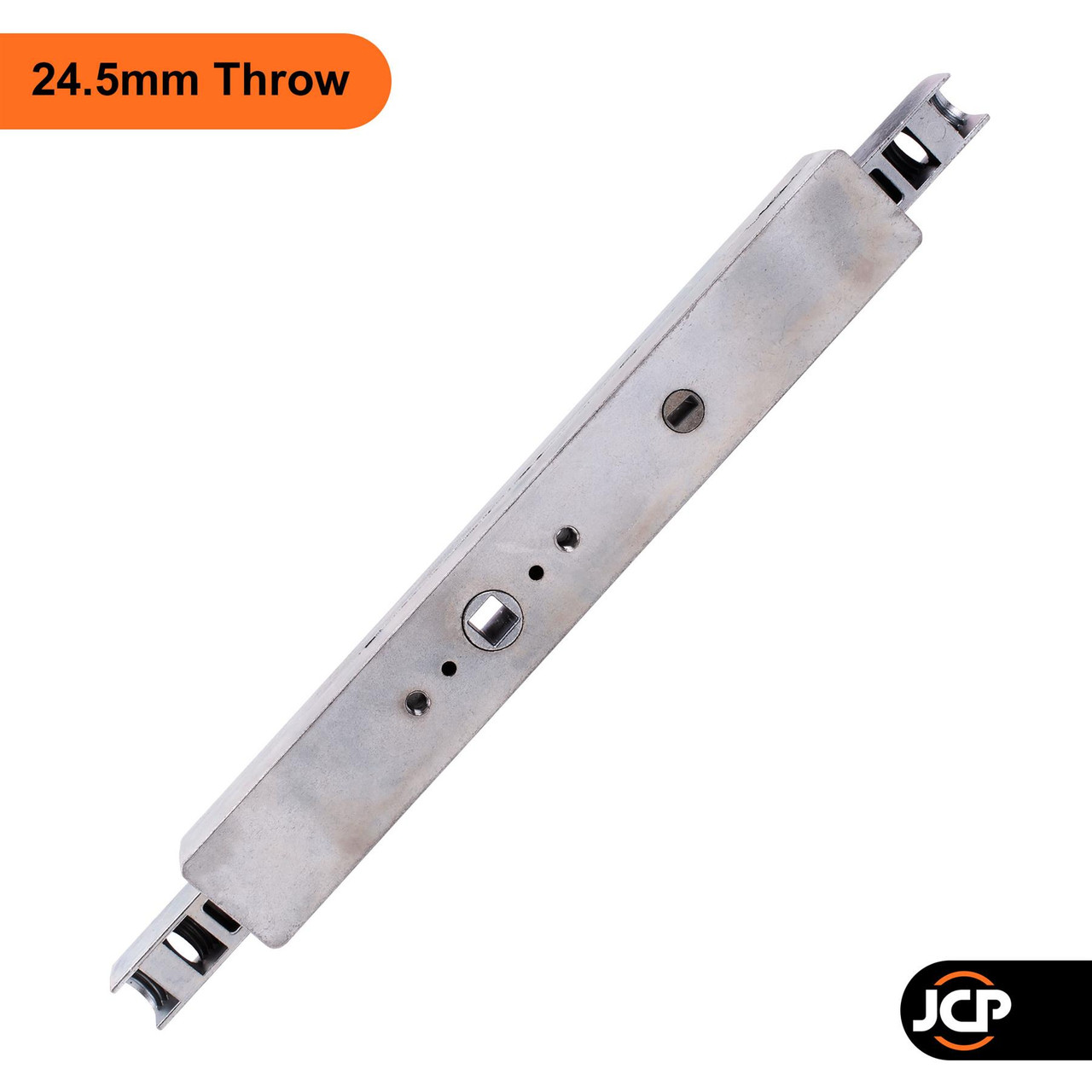

The Robus Compact Bi Fold Door Shoot Bolt Lock from Debar is designed for slender profile applications, providing robust, heavy duty security for intermediate panels. It accepts connecting rods and shootbolts that anchor into the top and bottom tracks, ensuring a secure closure. This design not only maintains slim sight lines but also upholds the highest level of security. The lock facilitates a 24.5mm throw with a 180° handle operation and is only 26.5mm wide, making it ideal for slim profiles. It achieves more than 90 Nm of torque, offers dual points of engagement for top and bottom door panel security, enhances performance against forced entry and extreme weather, and is coated for corrosion resistance. The lock is constructed from high-strength die cast Zinc and accommodates an M10 threaded bar, the threaded rod connections allow for easy adjustments.
The compact style of the lock minimizes the need for profile machining, making it versatile for use on Aluminium, PVC, and Timber doors. Its heavy-duty zinc construction and threaded rod connections, ensure durability and reliability across various door types. This streamlined integration and robust construction make the Robus Compact Shoot Bolt Lock an excellent choice for those seeking efficient security solutions without compromising on design aesthetics or structural integrity.
Features:
- Designed for slim profile
- Suitable for use on Aluminium, PVC and Timber doors
- For use on intermediate panels
- Allows the handle to turn 180° to operate
- Fits M10 threaded bar
- Exceptional strength: Achieves a >90 Nm Torque
- Material: High strength die-cast Zinc
- High grade anti corrosion protection
- PAS24 Compliant
- Quality manufactured to BS EN ISO 9001: 2019
What's in the Pack?
1 x Debar Robus Bi-Fold Gearbox Case
Dimensions:
- Body height: 190mm
- Body height: 193mm (inc. bolt protrusions when closed)
- Body height: 242mm (inc. bolt protrusions when open)
- Body width: 26.5mm
- Body depth: 18mm
- Takes shootbolt rods: 10mm (M10)
- Shootbolt motion: 24.5mm
- Spindle hole diameter: 7mm
- Handle screw centres: 43mm
- PZ Centres: 55mm (critical dimension from centre of handle spindle to centre of the lock)
Please Note:
The Robus Compact bi fold gearbox lock can be used as a locking or non locking mechanism. A Bifold locking door handle would be required to utilise the locking mechanism.
