Description

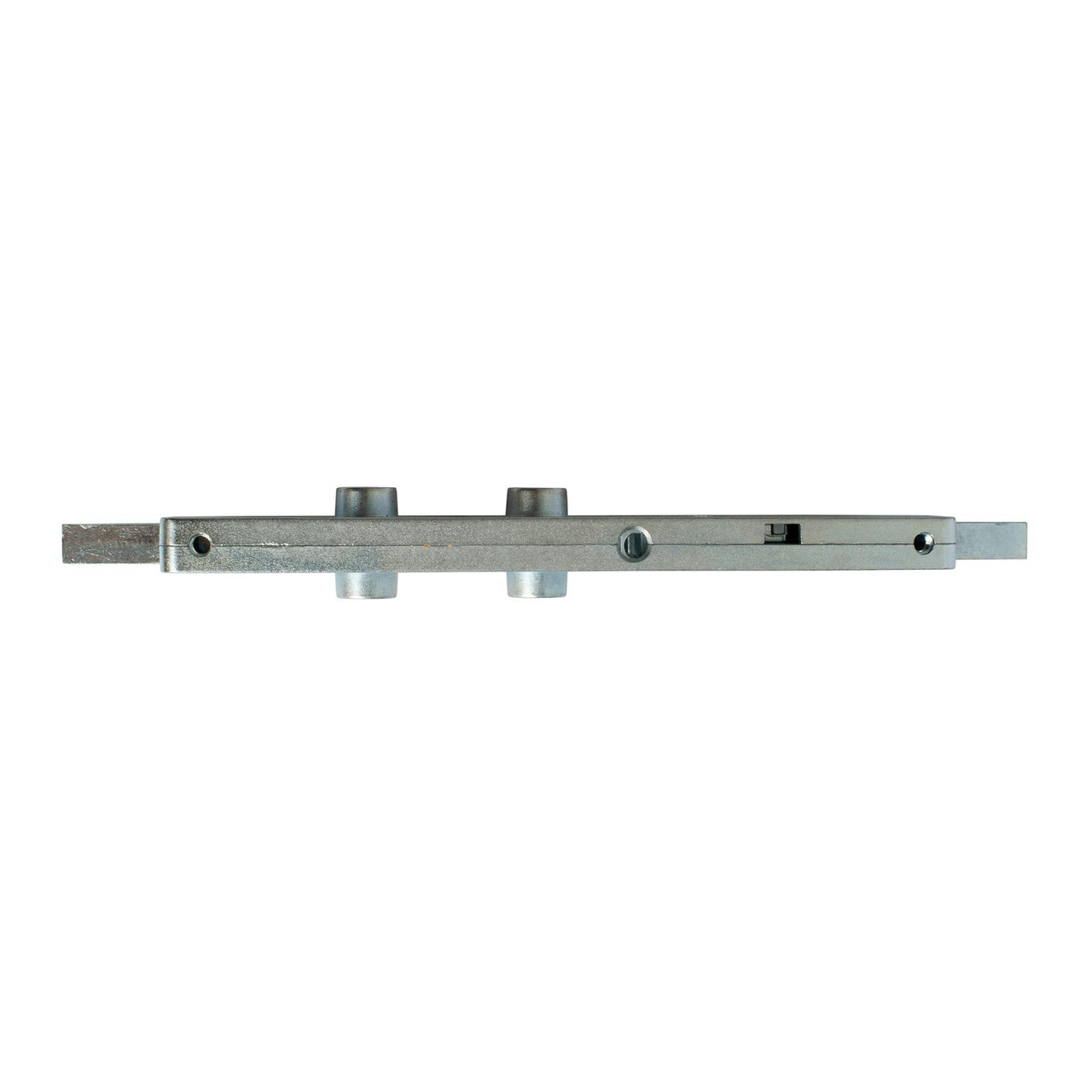

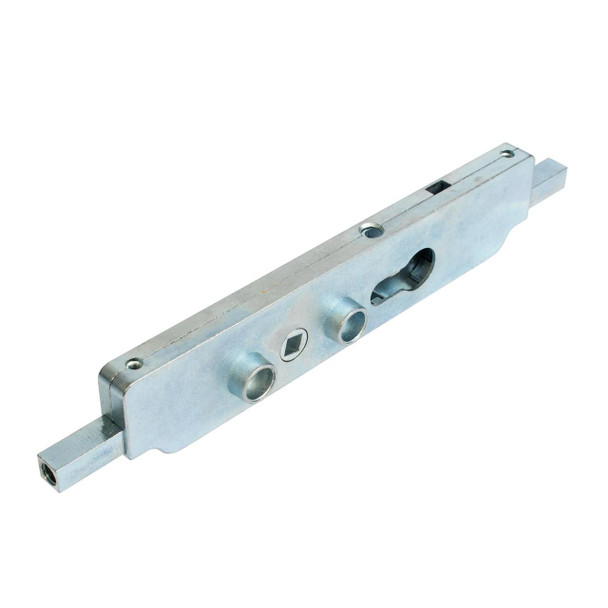

Clearspan Intermediate Bi-Fold Replacement Sliding Door Lock Gearbox Case
The Clearspan Intermediate Bi-Fold Door Lock Gearbox ensures smooth and secure operation of System S1000 bi-fold doors. It can be deadlocked via a Euro cylinder and also features an 8mm (diameter) steel threaded rod for greater security and weather sealing. Suitable for use on DV23, DV26, DV28 and DV29 profiles.
Features:
- Suits System S1000 bi-fold doors
- Suitable for use on DV23, DV26, DV28 and DV29 profiles
- Non handed
- Smooth and secure operation
- Can be deadlocked (Euro cylinder)
- Pre installed tapered shootbolt ends
What's in the Pack?
1 x Clearspan Intermediate Bi-Fold Lock Gearbox

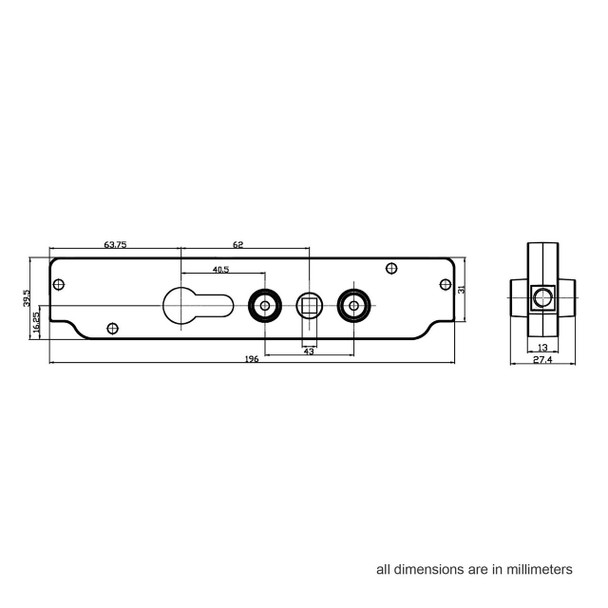

Dimensions:
- Spindle: 7mm Diamater
- Body Length: 196mm
- Body Height: 39.5mm
- Body Thickness: 13mm
- Rod Connectors: 8mm
- Shootbolt Throw: 24mm
- Handle Screw Centres: 43mm
Specifications
Screw Centres: |
43mm |
Lock Type: |
Bi Fold |
Spindle Diameter: |
7mm |
