Description

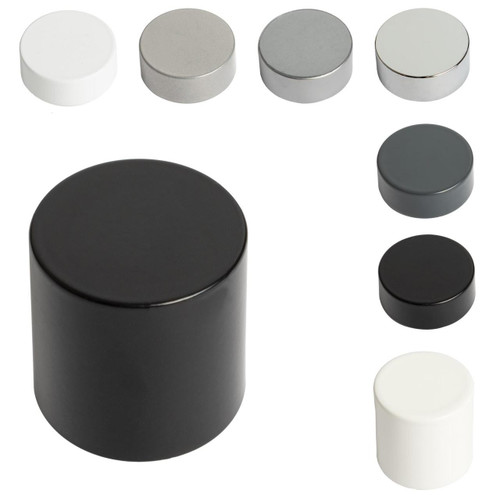

Bi Fold Door Magnetic Hold Back Catch Magnet Folding Doors Holder Clearline
This heavy duty magnet pair by Clearline are designed to hold back the sashes on a bi-fold door when they are in the "open" position. They are securely fixed to the leaf of the door and come with both fixing bolts and screws to be used depending on the application method chosen.
There are two ways to fit this to your bi fold doors depending on the profile material, either insert a rivet nut into the sash and fasten the catch using the M5 bolts provided or screw directly into the door using the self drilling screws provided (the more common approach). Each catch is also provided with an "anti-rotation grub". This screw stops the catch from rotating around the central fixing point.
Features:
- Heavy duty magnets
- Fixing bolts and self drilling screws provided
- An anti-rotation grub stops the catch from rotating around the central fixing point.
- Strong and robust
Dimensions:
- Diameter 30mm (1.18”)
- Total height (pair) 26mm or 65mm
What's in the pack?
2 x Clearline Bi Fold Door Magnetic Hold Back Catch Magnets
2 x Self drilling screws
2 x M5 bolts
2 x Anti-rotation grub
1 x spanner
Specifications
Item Diameter: |
30mm |
Total height: |
26mm or 65mm |
