Avocet Pioneer WMS Caravan Door Lock 3 Deadbolt 35mm Backset 92PZ Ellbee Replacement

Avocet Pioneer WMS Caravan Door Lock 3 Deadbolt 35mm Backset 92PZ Ellbee Replacement

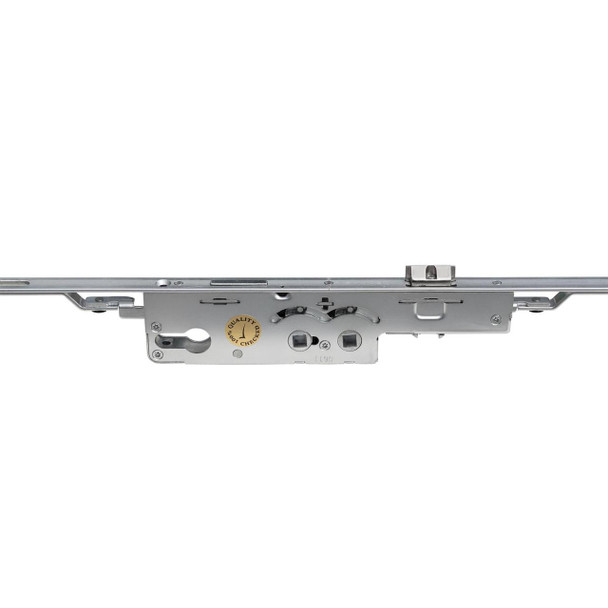

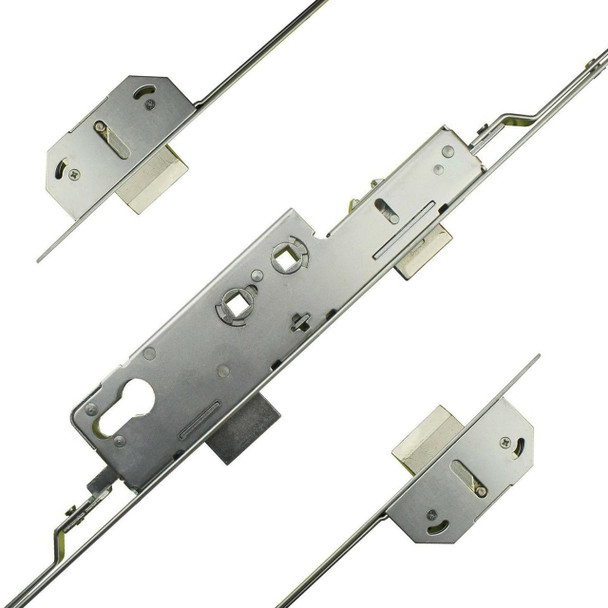

The Avocet Pioneer Door Lock is an excellent example of a non-handed door lock, which can be used as a replacement for Ellbee caravan door locks. It is suitable for lever-lever and lever pad applications and is supplied in a 1565mm long format, a format commonly used on caravan doors. The lock has 3 deadbolts and a fully reversible centre latch which can be changed without removing the unit from the profile.

Features:

• Commonly used as a replacement for faulty Ellbee caravan door locks
• 1565mm Long format, a format commonly used on caravan doors
• Non-handed
• Suitable for lever-lever and lever-pad applications

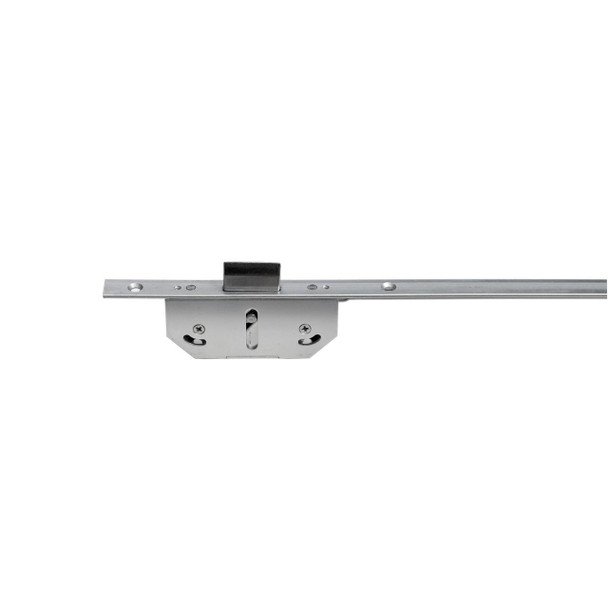

• 3 deadbolts (top, middle, bottom)
• Trivalent silver finish
• Fully reversible centre latch
• Latch can be changed without removing the unit from the profile

Whats in the pack?

1 x Avocet Pioneer Caravan Door Lock

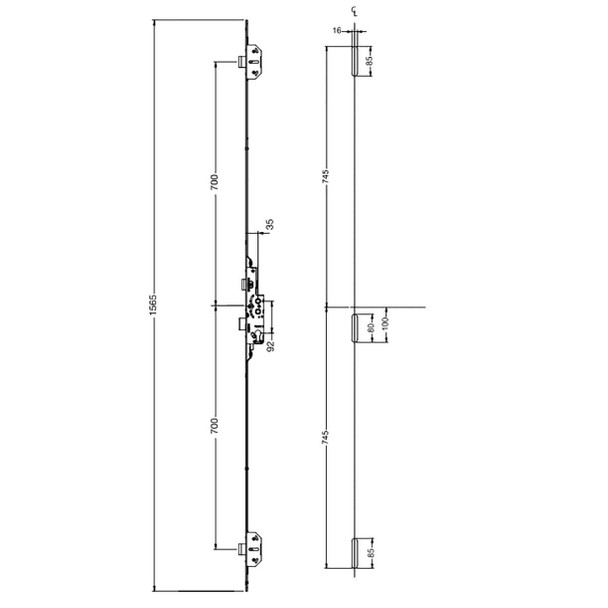

Dimensions:

• Lock Length:1565mm
• Distance between the top deadbolt and centre line: 700mm
• Distance between the bottom deadbolt and centre line: 700mm
• Deadbolt throw: 20mm
• Faceplate width: 16mm
• PZ: 92mm
• Backset: 35mm
