Avocet Pioneer Plus UPVC Door Handle Pair 92mm PZ 211mm Fixings
Avocet Pioneer Plus UPVC Door Handle Pair 92mm PZ 211mm Fixings

Avocet Pioneer Plus UPVC Door Handle Pair 92mm PZ 211mm Fixings

No yet Review(s) Write a Review
£12.80
SKU:
PNR-PLS-211-918
Handing:
Left & Right
PZ Centres:
92mm
Screw Centres:
211mm
Spindle:
8mm
Sprung:
Yes
Type:
Lever/Lever
Size Chart
Or View Detail

Pioneer Plus UPVC Door Handle Sprung Lever Pair 92PZ 211mm Fix 242mm Backplate

The Avocet Pioneer Plus comes with a superb high quality finish that is made to endure, giving you year upon year of use. This sprung lever handle set has been designed to be fully reversible to fit both left or right hung doors. A pre-fitted spring cassette is included, ensuring that the handle is held at 90° with no sag. The Pioneer Plus set is for use with lift lever operated multipoint locking mechanisms with a 92mm PZ centre.

You may want to update your existing cylinder locks at the same time as replacing your handle. We supply a range of locks to suit all budgets including Anti Snap, Anti Bump, Keyed Alike & Thumb Turns, these are available from our shop.

Features:

  • Handles will fit both left and right handed opening doors
  • Supplied with a pre-fitted spring cassette
  • 12mm backplate depth allows for standard size euro cylinders
  • Suitable for use with most current door multipoint locking systems
  • Manufactured to a premium quality
  • Performance: Tested to 100,000 operations
  • Corrosion resistance: All finishes meet the requirements of BS EN 1670:2007 - grade 5 (500 hrs Salt Spray)
  • Material: Zinc Alloy BS1004A or Aluminum A360

What's in the pack?

1 x Pair Avocet Pioneer Plus Door Handles 211mm Fixings

2 x Fixing Screws

1 x Spindle

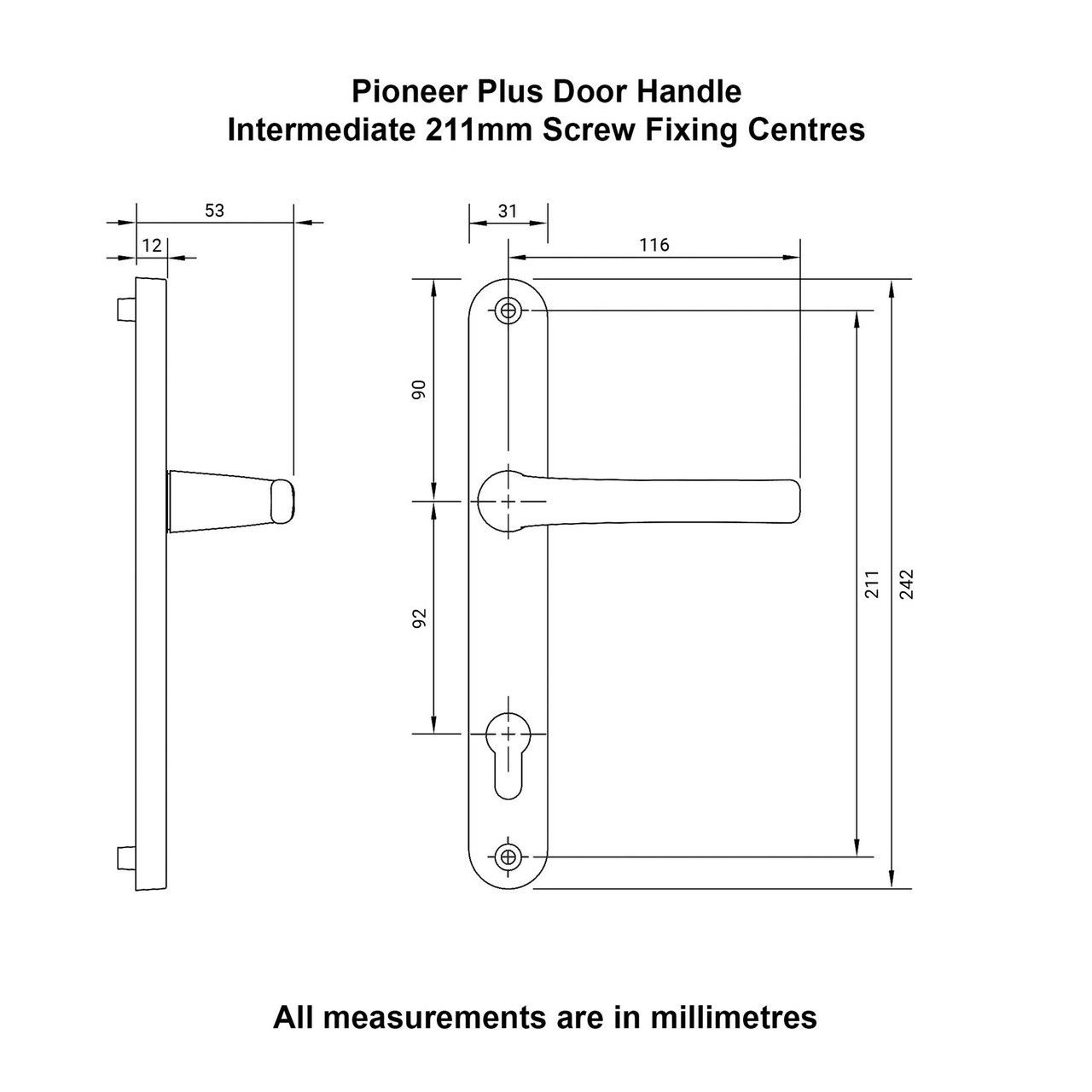

Dimensions Intermediate Backplate:

  • PZ Centres: 92mm
  • Distance between screw hole centres: 211mm
  • Backplate length: 242mm
  • Backplate width: 31mm
  • Backplate depth: 12mm
  • Lever length: 116mm
  • Spindle Size: 8mm
  • For doors thickness: 58-70mm
  • Material: Zinc Alloy (Black and White: Aluminium)

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle is 211mm) and the distance from the centre of the handle spindle to the centre of the keyhole (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

Important please check the critical measurements in the diagrams in the gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
