Avocet Pioneer Plus UPVC Door Handle Pair 92mm PZ 215mm Fixings

No yet Review(s) Write a Review
£9.91
SKU:
PNR-PLS-215-164
Handing:
Left & Right
PZ Centres:
92mm
Screw Centres:
215mm
Spindle:
8mm
Sprung:
Yes
Type:
Lever/Lever
Size Chart

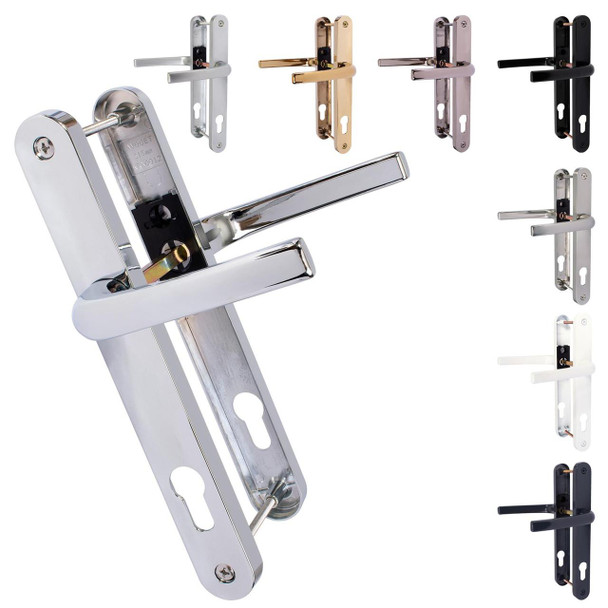

Pioneer Plus UPVC Door Handle Sprung Lever Pair 92PZ 215mm Fix 246mm Backplate

The Avocet Pioneer Plus comes with a superb high quality finish that is made to endure, giving you year upon year of use. This sprung lever handle set has been designed to be fully reversible to fit both left or right hung doors. A pre-fitted spring cassette is included, ensuring that the handle is held at 90° with no sag. The Pioneer Plus set is for use with lift lever operated multipoint locking mechanisms with a 92mm PZ centre.

You may want to update your existing cylinder locks at the same time as replacing your handle. We supply a range of locks to suit all budgets including Anti Snap, Anti Bump, Keyed Alike & Thumb Turns, these are available from our shop.

Features:

  • Handles will fit both left and right handed opening doors
  • Supplied with a pre-fitted spring cassette
  • 12mm backplate depth allows for standard size euro cylinders
  • Suitable for use with most current door multipoint locking systems
  • Manufactured to a premium quality
  • Performance: Tested to 100,000 operations
  • Corrosion resistance: All finishes meet the requirements of BS EN 1670:2007 - grade 5 (500 hrs Salt Spray)
  • Material: Zinc Alloy BS1004A or Aluminum A360

What's in the pack?

1 x Pair Avocet Pioneer Plus Door Handles 215mm Fixings

2 x Fixing Screws

1 x Spindle

Dimensions Long Backplate:

  • PZ Centres: 92mm
  • Distance between screw hole centres: 215mm
  • Backplate length: 246mm
  • Backplate width: 31mm
  • Backplate depth: 12mm
  • Lever length: 116mm
  • Spindle Size: 8mm
  • For doors thickness: 58-70mm
  • Material: Zinc Alloy (Black and White: Aluminium)

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle is 215mm) and the distance from the centre of the handle spindle to the centre of the keyhole (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

Important please check the critical measurements in the diagrams in the gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.



We aim to deliver your products as quickly as possible. Orders taken before 12:00pm will normally be dispatched the same day. Orders taken after 12:00pm on a Friday will be dispatched the following Monday. For all Next Day Delivery Services (next working day excluding Saturday's) please order before 12.00pm for same day dispatch. Depending on the weight and contents of your order, we either use a next-day courier service, or Royal Mail 24 postage service.

Mainland U.K delivery times are 1-2 working days. Northern Ireland delivery times are 2 - 3 working days.

No Quibble Money Back Returns Policy

Shop with absolute confidence knowing that if you are not satisfied for any reason we will refund the full purchase price providing you return the item within 30 days and in the same condition as when dispatched. Except for those cases where an item proves to be faulty, damaged on delivery or incorrectly described, return delivery charges and postage expenses are not refunded.

How do I return Items?

If you need to return an item please log into your account and click on the orders tab. Locate the order you wish to return and on the right click on 'Return Items?' You will then be taken to the returns tab; on the right hand side enter the quantity you wish to return; then on the left below the item, select the return reason and then the return action (whether you would like a replacement or a refund). If a replacement is not available, we will issue you a refund. There is a comments box to the right if you need to enter any more details.

Once you are happy that all the details have been correctly entered then click on the 'Submit Return Request' button. You will then be sent a return request email from JCP Hardware with instructions.

If you have placed an order as a guest and you wish to return it, then please email.
