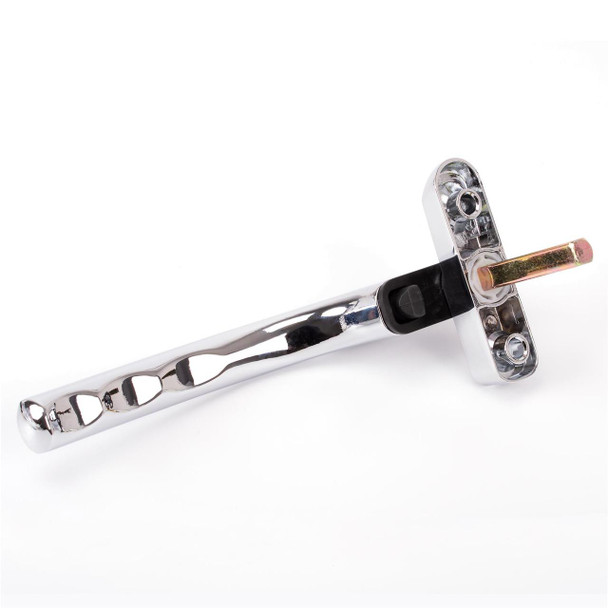

Avocet Affinity Plus Inline Espag UPVC Window Handle

No yet Review(s) Write a Review
Key Locking:
Size Chart

Avocet Affinity Plus UPVC Window Handle Universal Inline Espag Key Locking Replacement 15, 20, 30 and 40mm Spindles

The Avocet Affinity Plus is a beautiful example of a window handle, featuring an ergonomic handy 'push to release' locking mechanism for ease of use. The handle is unhanded and suitable for use on all espagnolette and shootbolt systems with 43mm centres. For extra security, the handle can be locked with the key (included) and has been endurance tested to 25,000 operations.

Available in spindle sizes of 15, 20, 30 and 40mm and a choice of finishes - White, Black, Satin Chrome, Champagne Gold and Polished Chrome.


  • Push to release locking mechanism
  • Endurance tested to 25,000 operations
  • Material: Zinc alloy or Aluminium
  • Contoured handle for ease of use
  • Corrosion resistance (white and black) : BS EN 1670:2007 - grade 5 (480 hrs salt spray)
  • Corrosion resistance (satin chrome, polished chrome and champagne gold) : BS EN 1670:2007 - grade 4 (240 hrs salt spray)
  • Supplied with 1 key, a cover plate and screws as standard
  • Unhanded (suitable for left and right handed openings)
  • Suitable for use on all espagnolette and shootbolt systems with 43mm centres
  • Key lockable

What's in the Pack

1 x Avocet Affinity Plus UPVC Window Handle

1 x Key

1 x Cover Plate

1 x Screw Pack

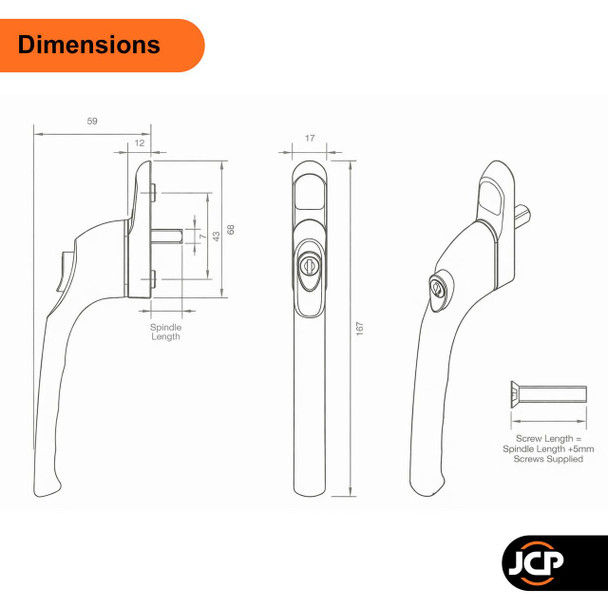

  • Handle length: 165mm
  • Handle width: 16mm
  • Handle height: 55mm
  • Spindle width: 7mm
  • Distance between screw hole centres: 43mm

Handle Screw Hole Fixing Centres:

Fortunately most espag handles are made to industry standards with 43mm between the screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Spindle Length:

Spindle length is measured from the base of the handle to the end of the spindle. Different spindle lengths are available from the drop down above.

Spindle Width:

The width of all the spindles provided are 7mm.


These handles are of the inline type, therefore they will replace both left and right hand handles.
