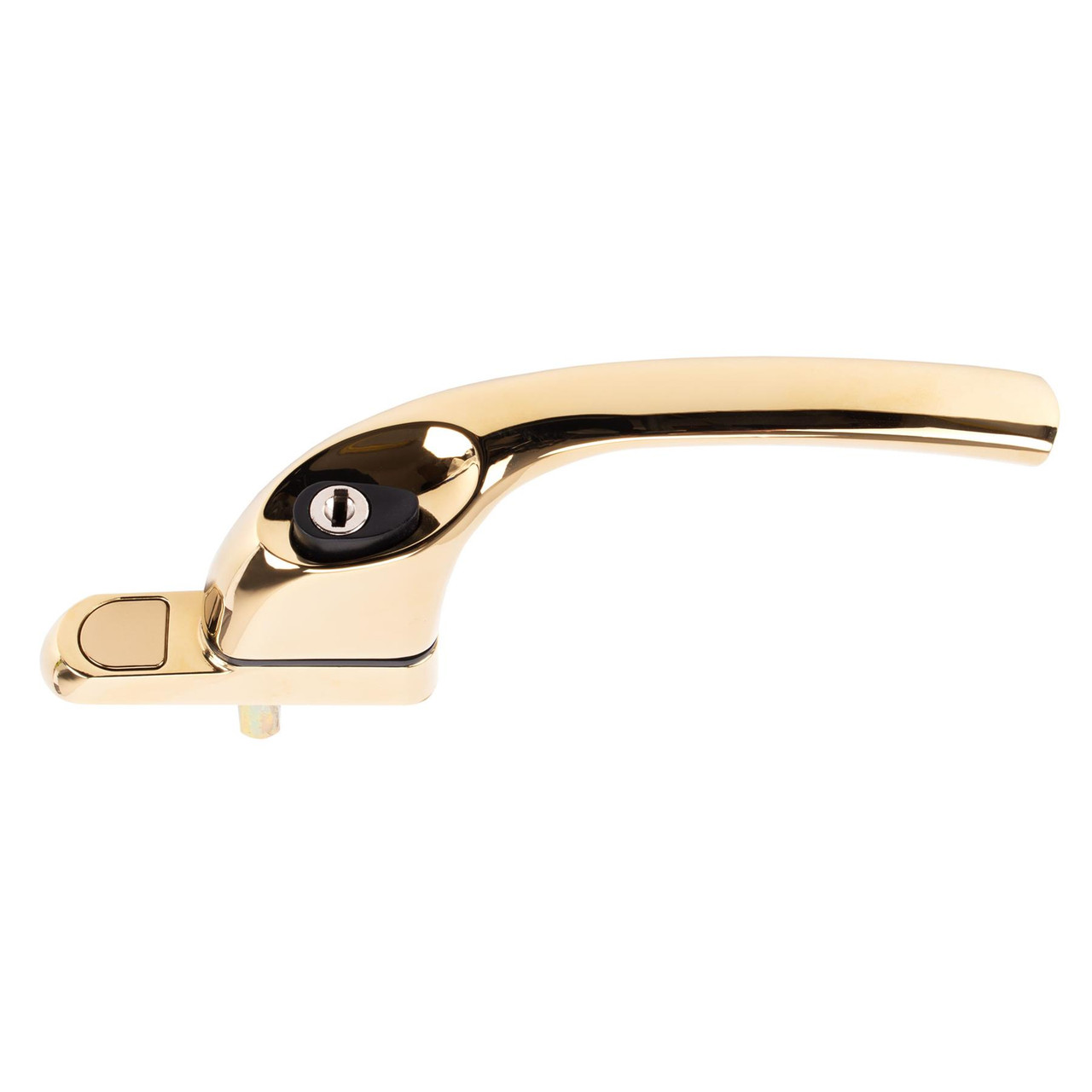

Affinity Plus Cranked UPVC Window Handle Offset Espag Locking 15, 20, 30 and 40mm spindles; left or right handed

The Affinity Plus offset espag UPVC window handle; designed beautifully to be ergonomically pleasing both to look at and to use with a push to release locking mechanism. Manufactured with a hard wearing finish and specifically handed to left or right handed openings. These handles can be key locked for additional security.

Made to an industry standard of 43mm (the distance between screw hole centres), this handle is universal and will fit most espagnolette and shootbolt systems.

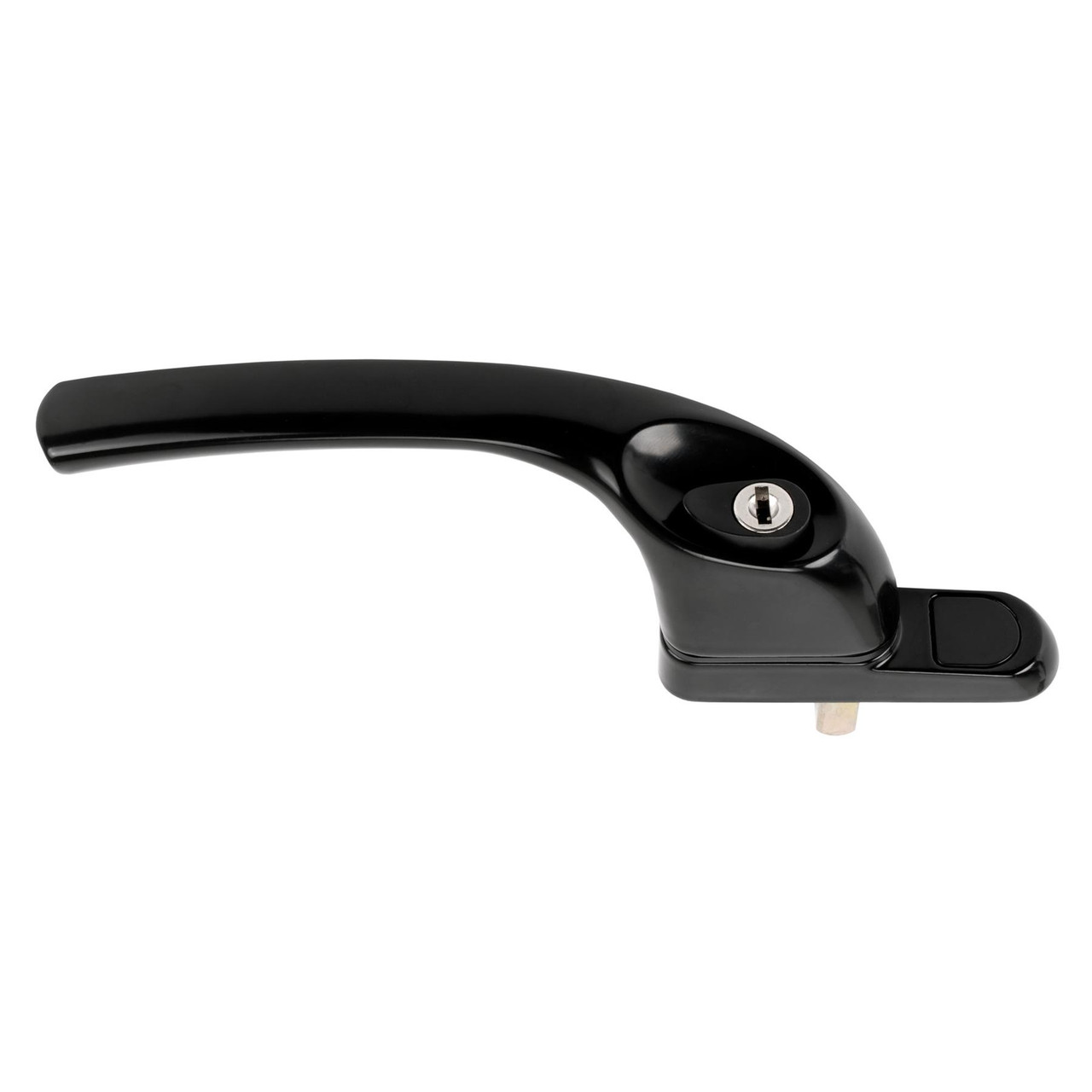

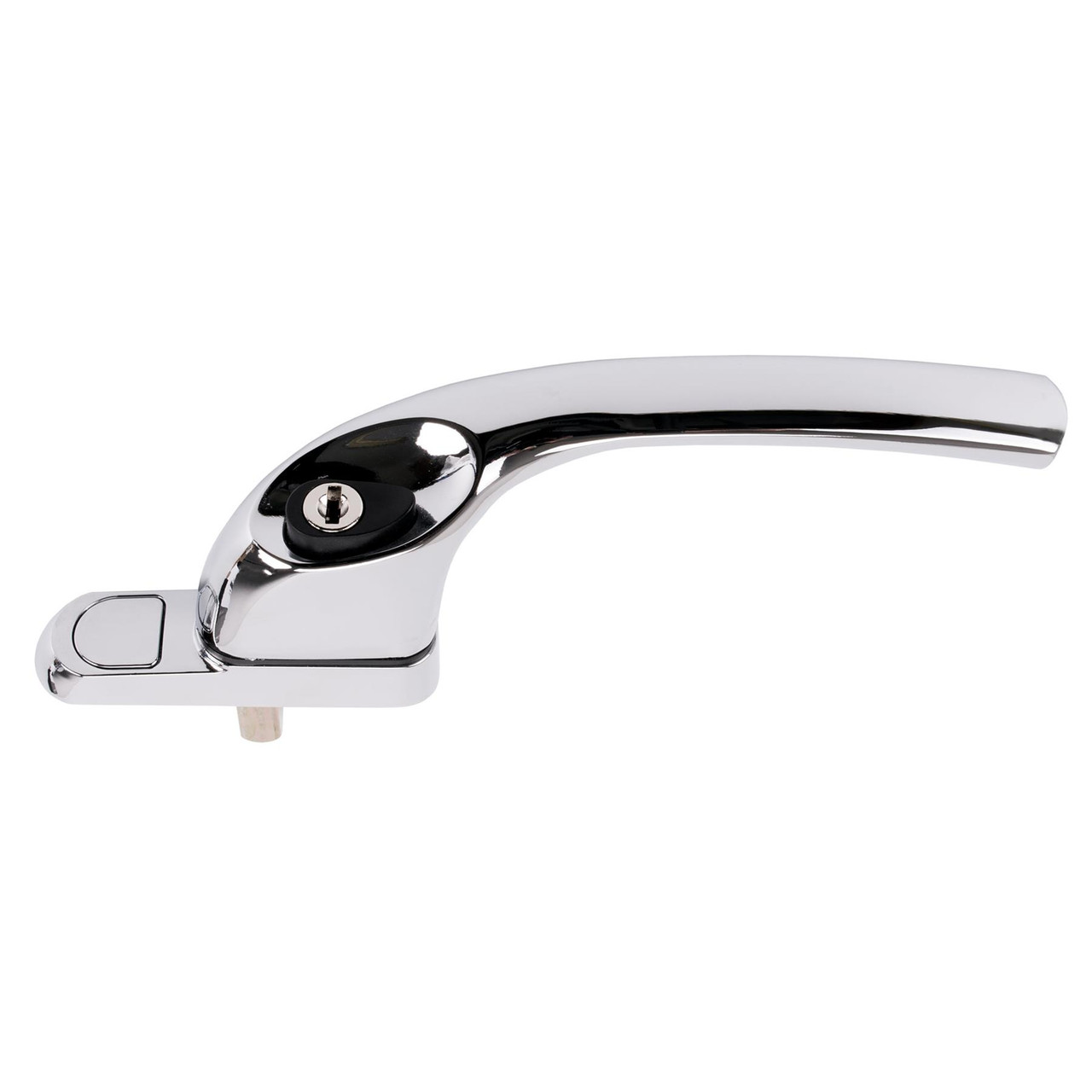

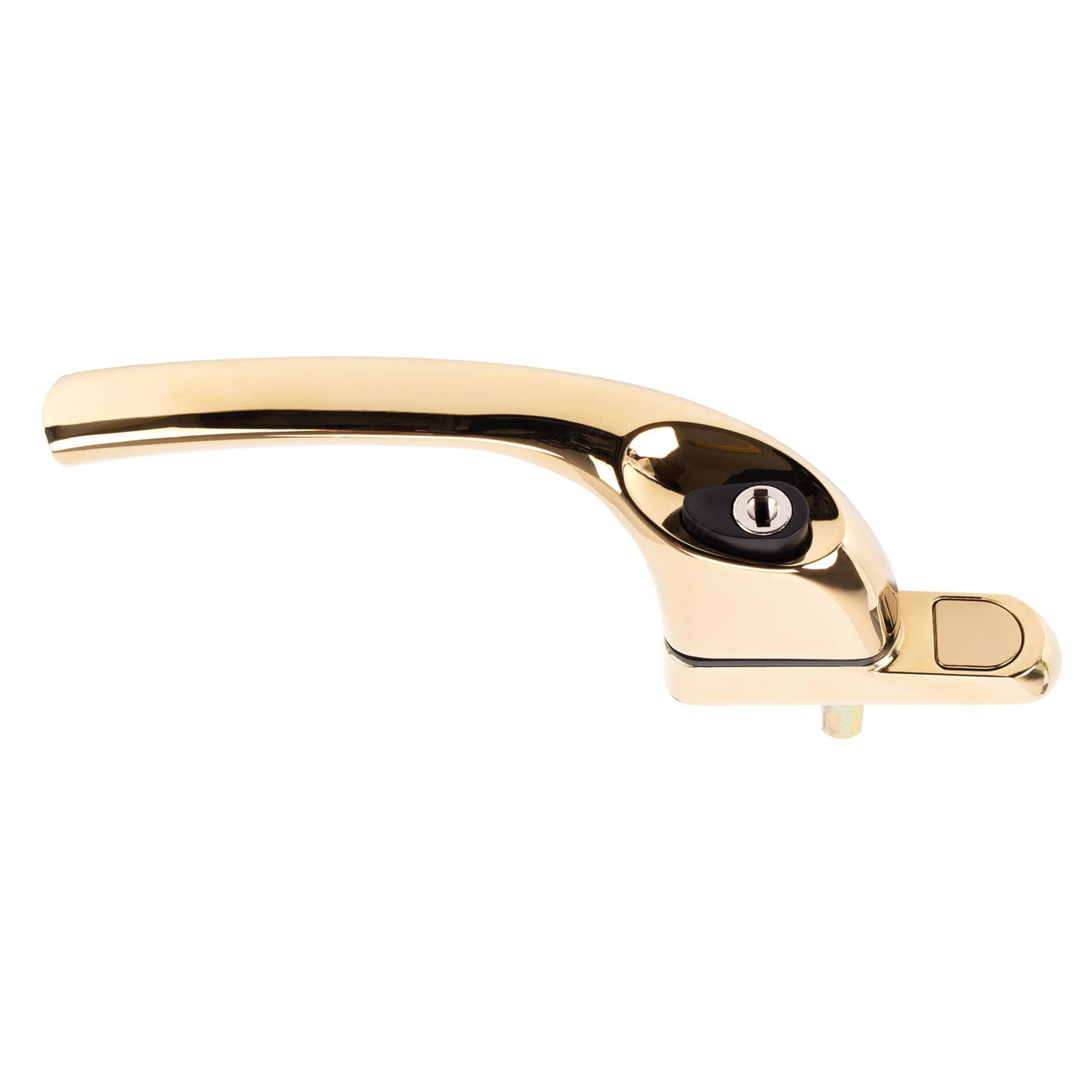

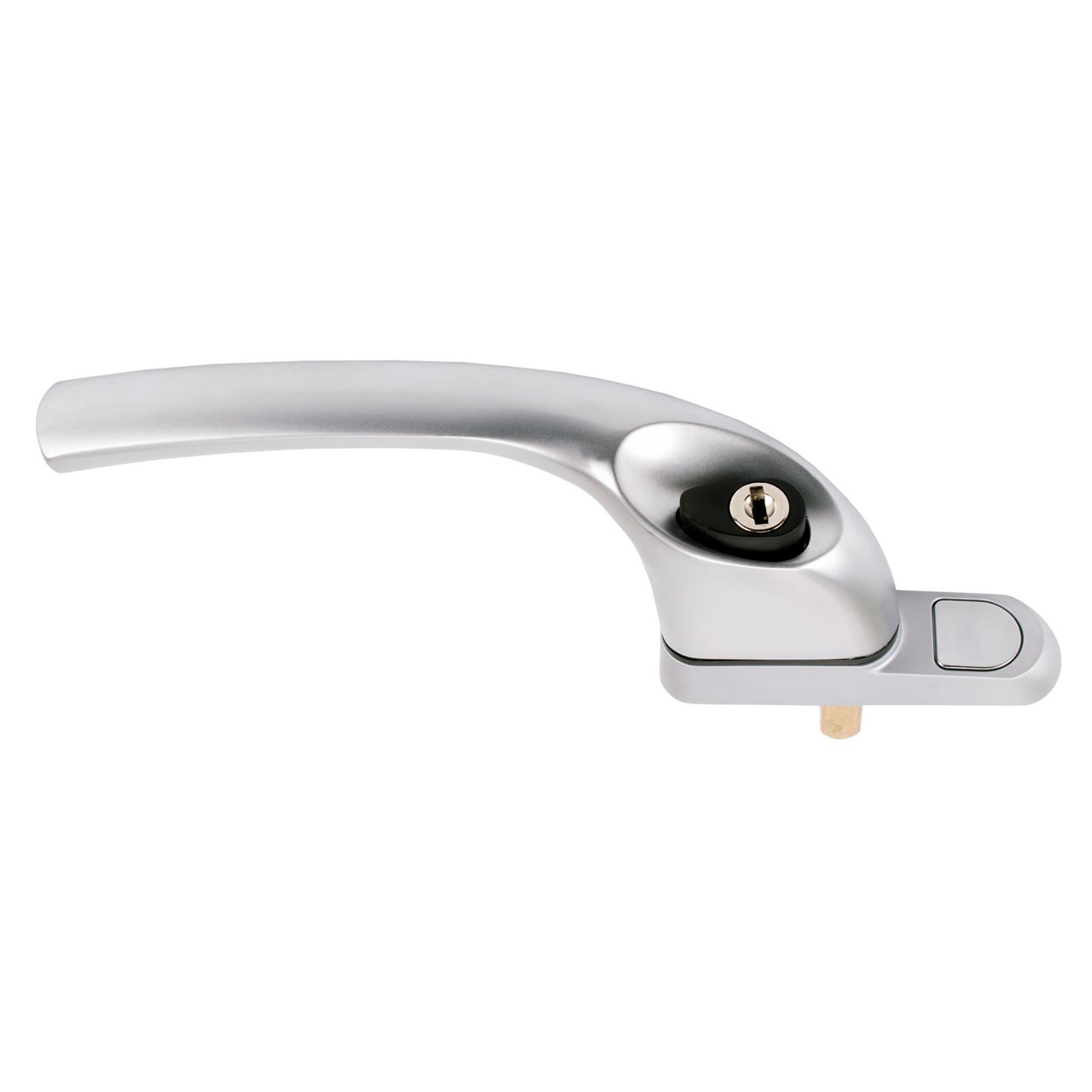

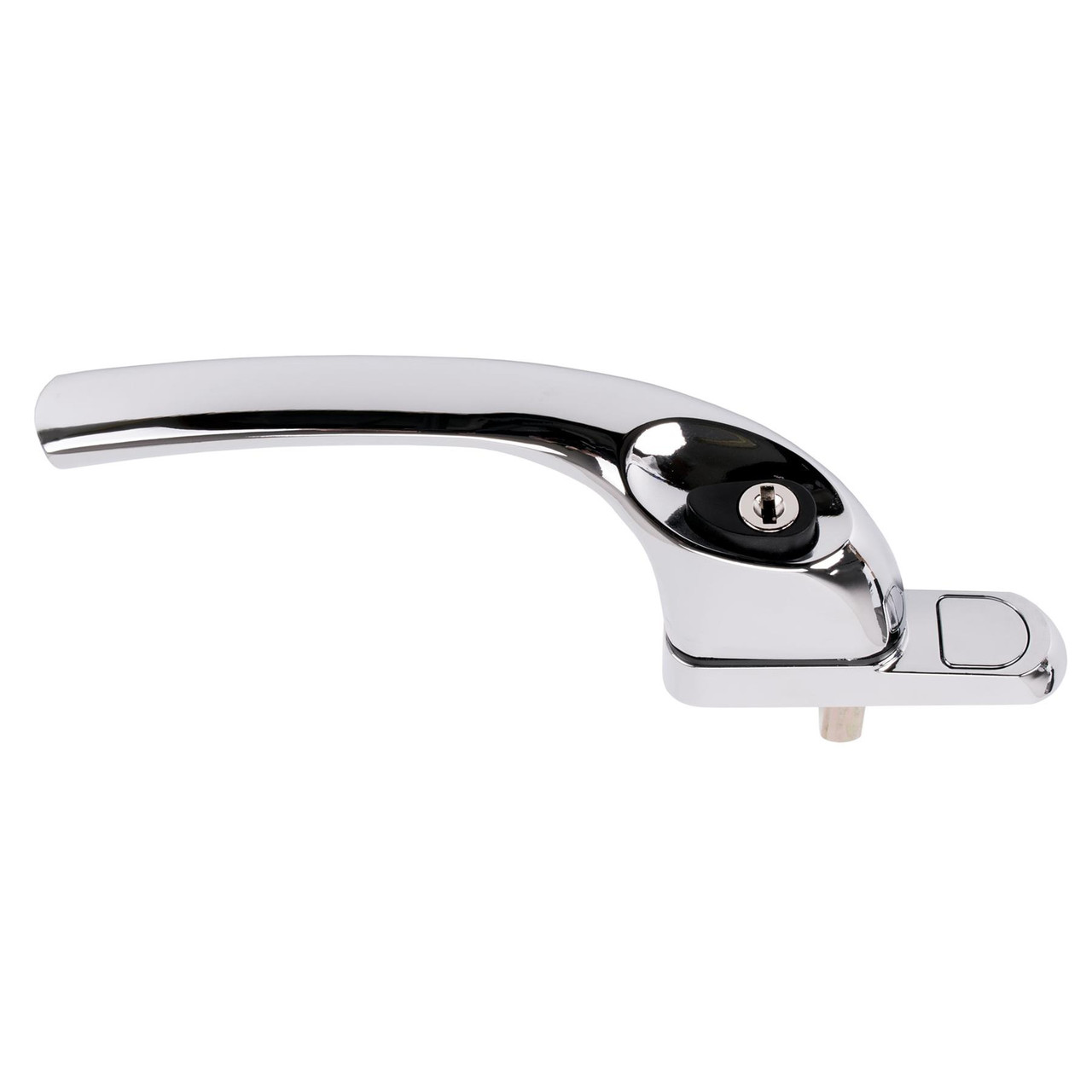

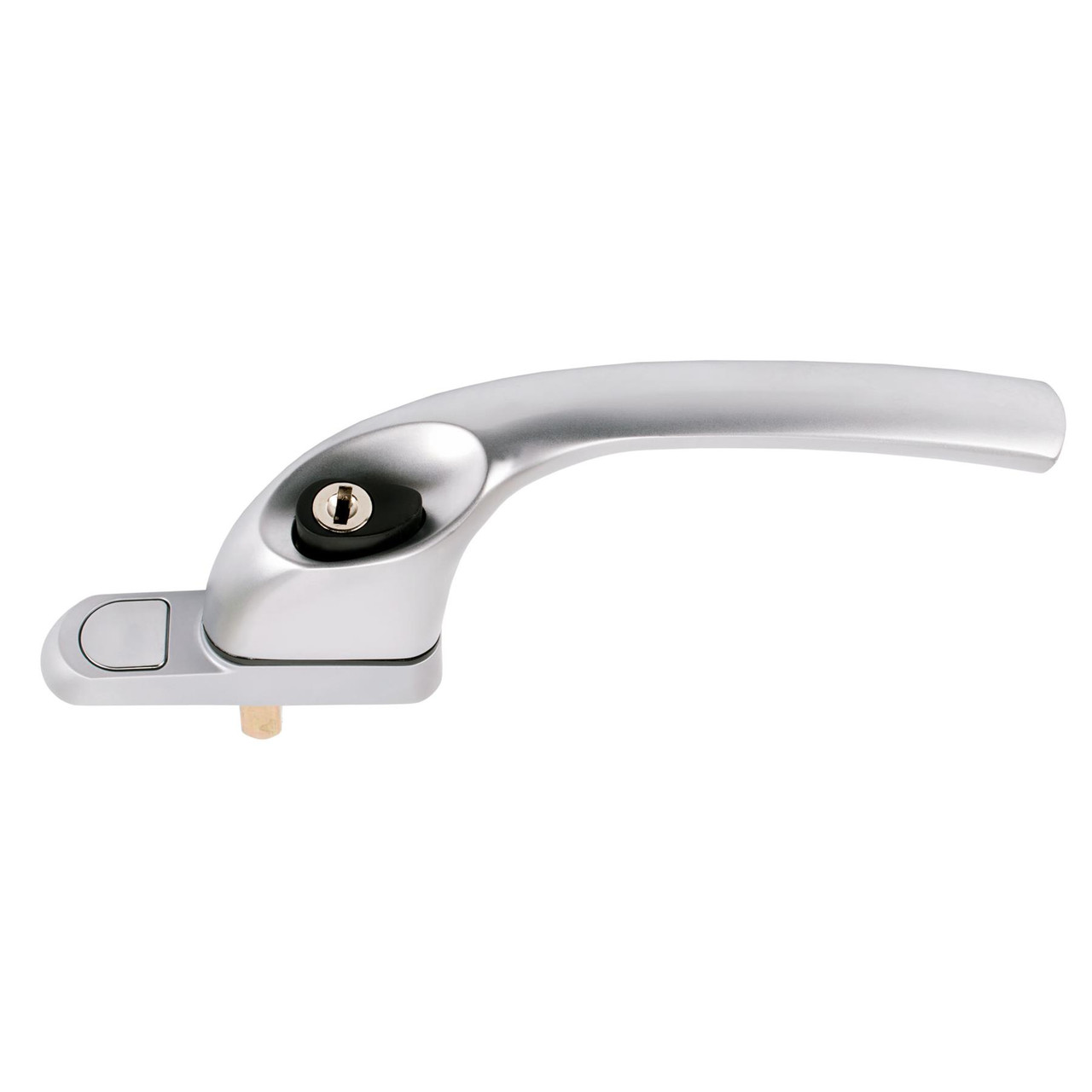

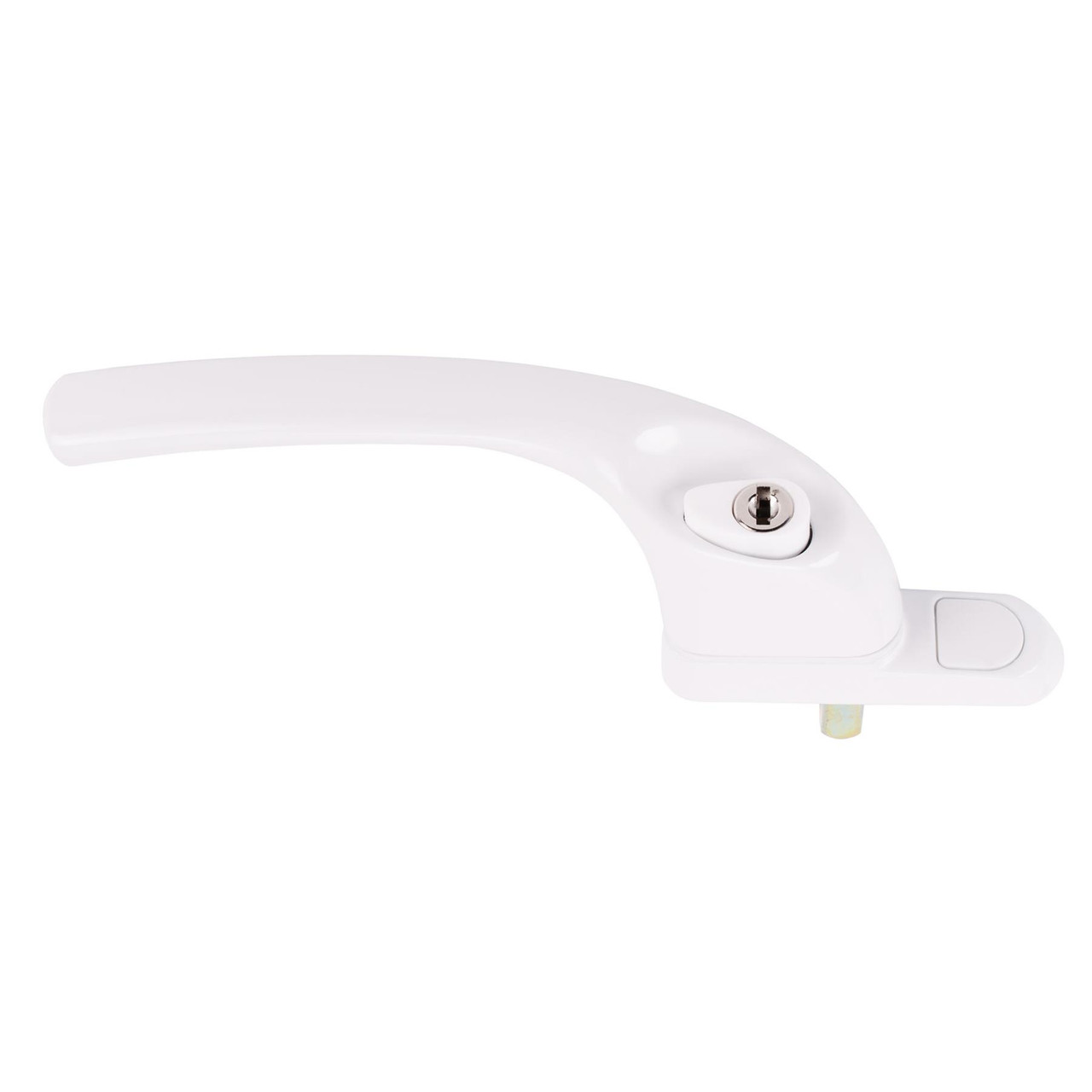

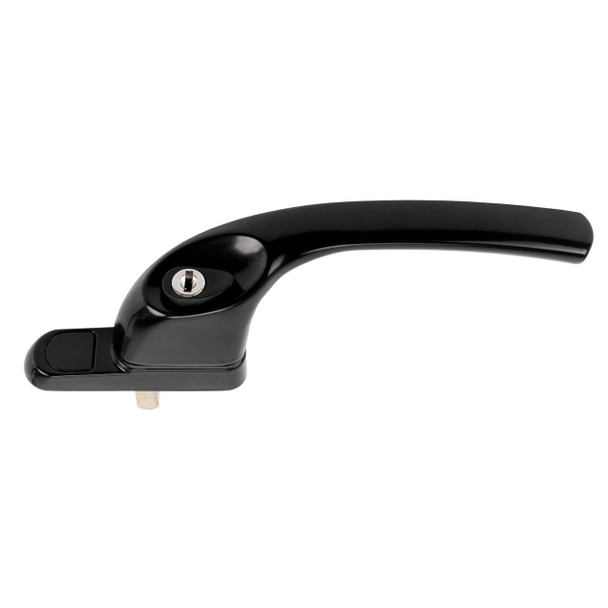

Available in spindle sizes of 15, 20, 30 and 40mm and a choice of finishes - Black, Champagne Gold, Polished Chrome, Satin Chrome and White.

Features:

• Contoured handle for ease of use
• Push to release locking mechanism
• Endurance tested to 25,000 operations
• Supplied with 1 key, a cover plate and screws as standard
• Handle Lever/Backplate: Zinc BS1004A and aluminium A360
• Spindle: Steel/Zinc plated & yellow passivated
• Coverplate: Colour coded self adhesive aluminium cover
• Powder Coating (Black & White): 60 microns minimum coating thickness
• PVD/Chrome Coating(Champagne Gold, Satin Chrome, Polished Chrome): Multiple layer plating process
• Finishes meet requirements of BS EN 1670
• Corrosion Resistance (Black & White): Powder coated - grade 5 (480 hours salt spray)
• Corrosion Resistance (Champagne Gold, Satin Chrome, Polished Chrome):
Plating process - grade 4 (240 hours salt spray)

What's in the pack?

1 x Left or Right Handed Affinity Plus Offset Cranked Espag Locking Window Handle

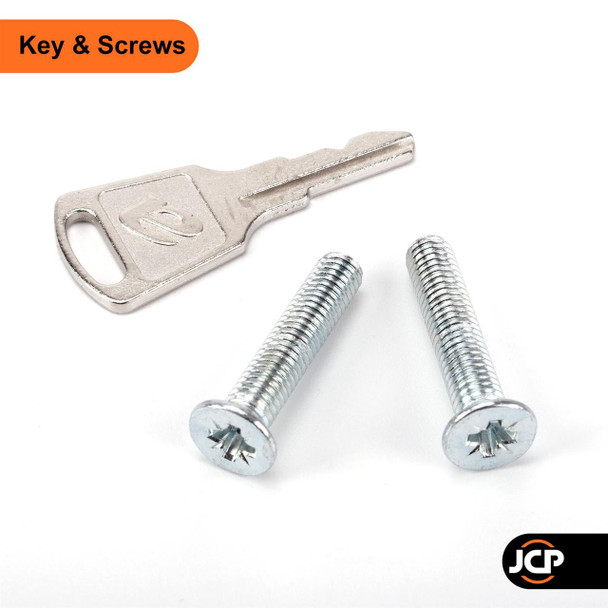

1 x Key

1 x Cover Plate

1 x Screw Pack

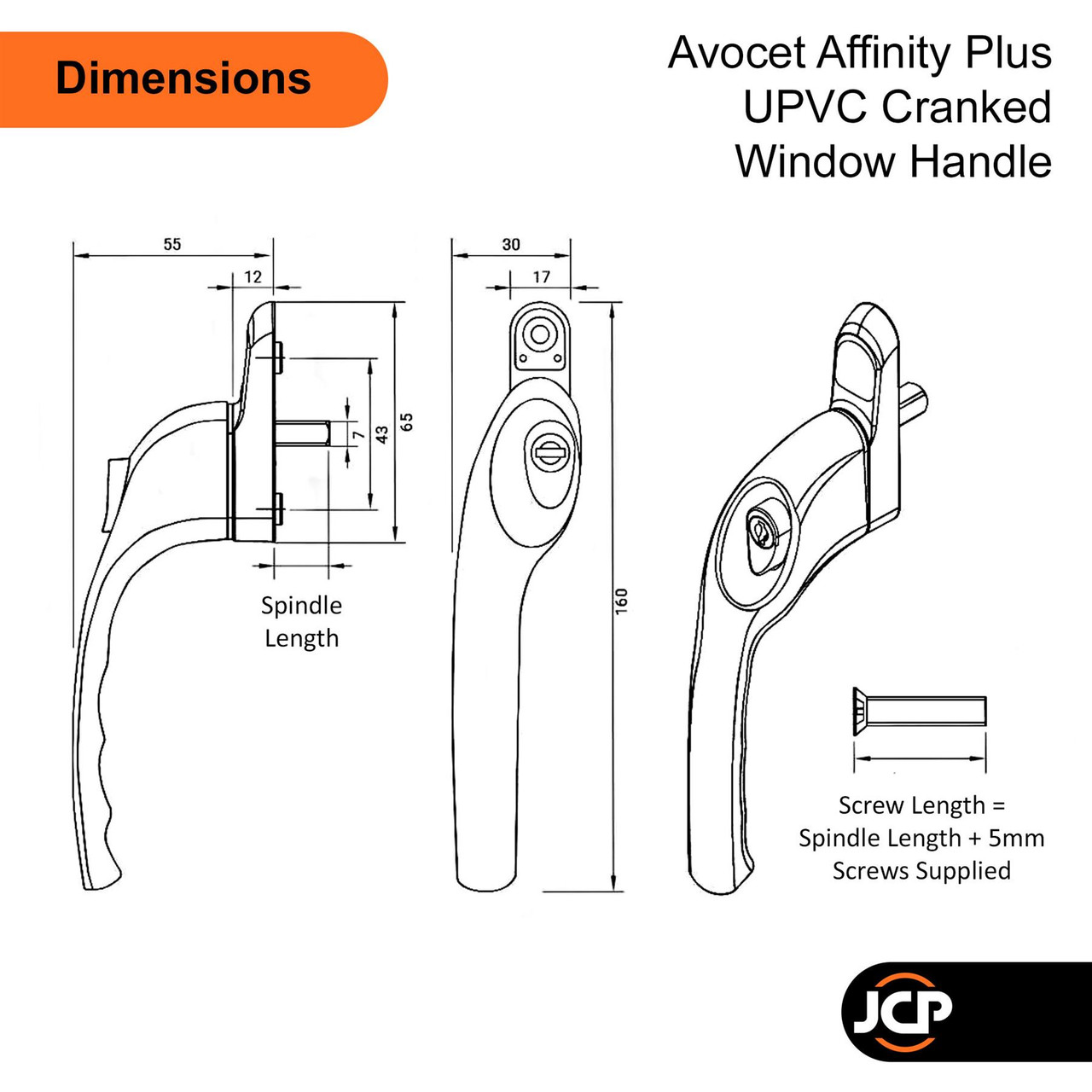

Dimensions:

• Handle Height: 55mm
• Handle Length: 160mm
• Handle Width: 30mm
• Screw Fixing Centres: 43mm
• Screw Length: Spindle Length + 5mm

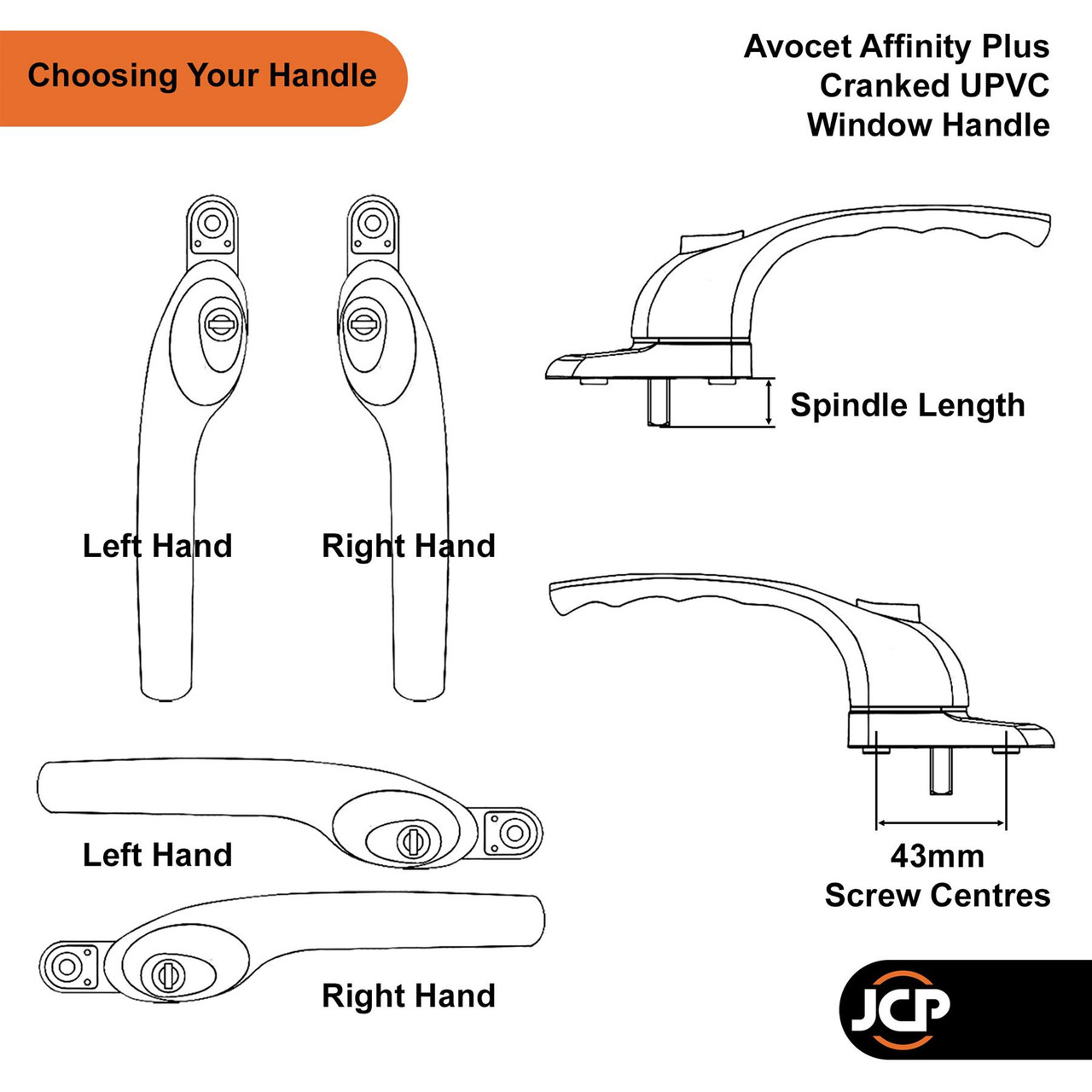

Please refer to the diagram in the gallery.

What do I need to check before ordering a handle?

Handle Screw Hole Fixing Centres:

Fortunately most espag handles are made to industry standards with 43mm between the screw hole centres, therefore it really doesn't matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Handing:

These handles are of the offset type, therefore you will need to select the correct handing when ordering, please see the diagram in the gallery.

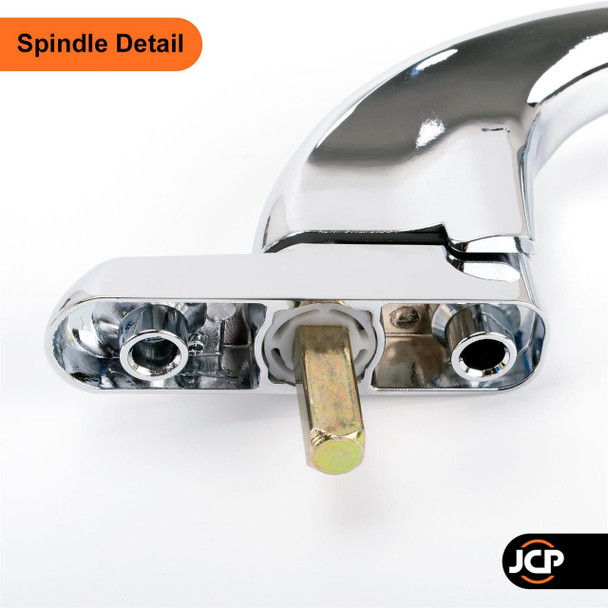

Spindle Length:

The spindle is measured from the base of the handle to the end of the spindle as shown below. This handle is available with 15, 20, 30 or 40mm spindles which, if necessary, can be trimmed to size.
