Avocet ABS Quantum Thumb Turn 3 Star Keyed Alike Anti Snap Euro Cylinder Door Lock TS007

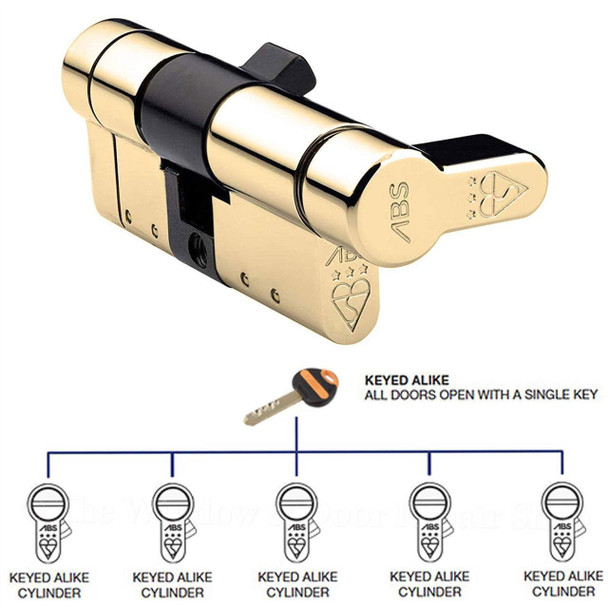

Keyed Alike cylinders are locks that have been specially pinned to order so that all locks in the set will work from the same key.

Please order each Keyed Alike cylinder that you require from this page, then order any additional keys you require ( 3 keys provided as standard whether ordering 2 or 7 cylinders); your items will then be processed together as one special order.

Please note, if you order cylinders to match an existing code, keys are not supplied as standard and must be ordered separately.

The New ABS Quantum Thumb Turn is a retro-fit cylinder by Avocet, the only retro-fit cylinder which has passed the master locksmith associations highest standard SS312 Sold Secure Diamond Rating and is also a 3 star British kitemarked lock. ABS also holds the secured by design accreditation, the police preferred specification. With its patented anti lock snapping design and its pick, drill and bump resistance, it is the highest accredited lock on the market today. This lock requires no additional security devices such as clamps and cylinder guards to prevent break ins due to the unique way it prevents access to the internal lock mechanism.

The new ABS Quantum thumbturn cylinder is an upgrade on the the original model - the turn does not now need to be depressed to turn resulting in no lockout issues!

Please Note: 30mm sized barrels do not have the kitemark due to reduced size which limits the key combinations to below 30,000. This does NOT impact upon the snap secure technology.

Features:

• Keyed alike, one key can open multiple keyed alike locks
• Sold Secure Diamond Grade Lock SS312
• 3 Star British Kitemark
• Advanced Snap Secure Technology
• Pick, Drill and Bump Resistant
• Online key registering available
• Extra Keys Available
• Tested to BS EN1303:2005/TS007:2014/BS3621/GV
• BS EN 1303:2005 Classification
• TS007:2014
• Pins 8 + 1 magnetic
• PAS 24: 2007
• Corrosion resistance: BS EN1670:2007
• Secured by design - Police preferred specification
• No security door handle required
• Suitable for UPVC, timber and composite doors

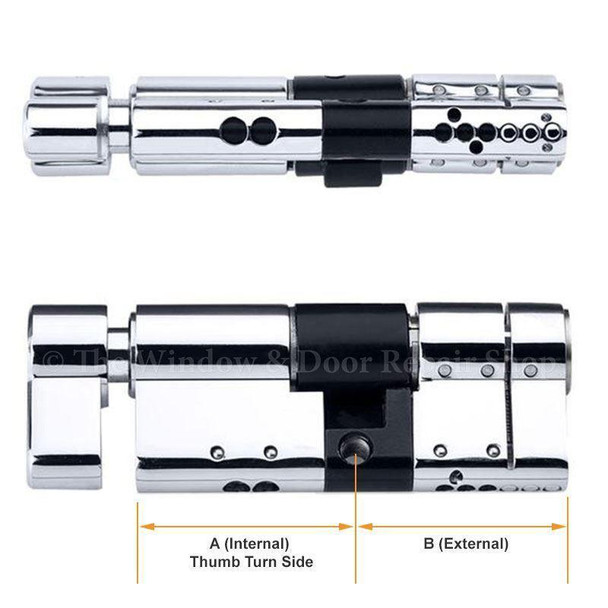

How do I measure an ABS thumb turn door cylinder?

Please remember that one side of an ABS lock is dedicated external and the other internal; the internal side is the thumb turn side. Avocet ABS locks are clearly marked 'EXT' on the external side for easy fitting.

The easiest way to measure your old euro cylinder lock is to remove it from your door, taking note which end is external.

Measurement A (Internal, the thumb turn side): Measure from the internal side to the centre of the screw hole. A = 40mm

Measurement B (External): Measure from the external side to the centre of the screw hole. B = 50mm

The cylinder size you would need to order in this example case is 40mm Int 50mm Ext
