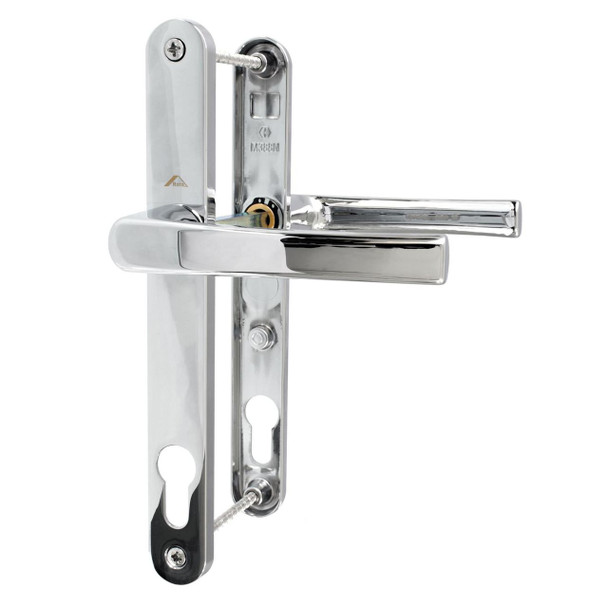

Hoppe Roto Resista Chrome UPVC Door Handle Pair 92mm PZ 200mm Fixings

UPVC Door Handle Set Chrome 92PZ 92mm Lever Pair 200mm Fixing Hoppe Roto Resista

The Hoppe Roto 92mm Upvc door handle set comes with a high quality finish that is made to endure, giving you year upon year of use. Exceptional style and graceful design will enhance any door you choose to put it on; the lever lever handle is fully reversible (will fit left or right hung doors) with fixing lugs supplied on both back-plates for a more secure fit.

Covered by Hoppe's Resista 10 year surface manufacturer's guarantee these handles are made to withstand large volumes of use making them ideal for hotels, shops and public buildings and for those homeowners that live in areas of high pollution or coastal regions. Products with the Resista surface guarantee have undergone continual quality testing and, when new, conform to the requirements of the European standard BS EN 1670:1998 (Building hardware - corrosion resistance requirements and test methods).

You may want to update your existing cylinder locks at the same time as replacing your handle. A range of locks is available from our shop to suit all budgets including Anti Snap, Anti Bump, Keyed Alike & Thumb Turns.

Features:

• Sold as a pair
• Supplied with 90mm cut down screws
• Unsprung
• Universal handing, designed to be fully reversible (will fit left or right hung doors)
• To suit Roto multipoint locks

What's in the pack?

1 x Pair Hoppe Roto lever handles

1 x 8mm Spindle

2 x Fixing screws (cut down)

Dimensions:

• PZ Centres: 92mm
• Backplate width: 27mm
• Backplate length: 225mm
• Lever length: 126mm
• Distance between screw hole centres: 200mm
• Spindle Size: 8mm

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 200 mm) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

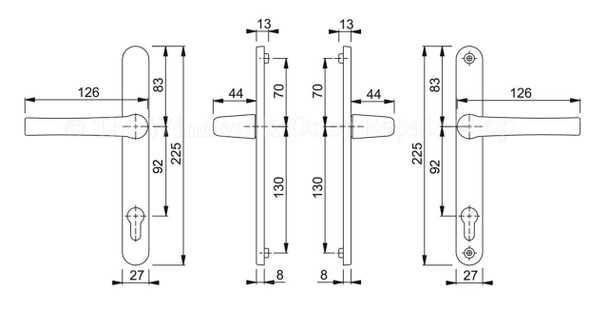

Important please check the critical measurements in the diagram in the gallery before ordering.

What does un-sprung mean?

Unsprung means the handle will use the door lock spring to return to position. There are a few door locks that will use a sprung handle to return the lever to position.

The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle.
