Trojan Sparta UPVC Door Handle Pair 92mm PZ 122mm Fixings

Upvc Door Handle 92PZ 92mm 122mm Screw Fixing Centres Lever/Lever Sparta Trojan

Simple yet stunning, the Trojan Sparta door handle offers exceptional value and has all the best features including a sprung handle and matching screws. Because of it's great value you could afford to replace all your door handles making a fabulous design statement which will be the envy of all your friends. For those in property maintenance, the Trojan Sparta offers durability and style well within budget and with the choice of colours you cannot go wrong.

The Sparta door handle has been manufactured to an extremely high standard which offers outstanding product performance and value. The levers and backplate are manufactured in corrosion resistant aluminium. This Sprung lever/lever handle set has been designed to be fully reversible to fit both left or right hung doors. The return spring cassettes are fitted over the spindle hole, ensuring that the handle is held at 90° with no sag.

The Trojan Sparta Door handle set is designed to replace handles with 92mm cylinder centres (distance from centre of handle spindle to centre of barrel) and distance between screw hole fixings of 122mm. The Sprung lever/lever handle set is for use with lift lever operated multipoint locking mechanisms with a 92mm PZ centre.

You may want to update your existing cylinder locks at the same time as replacing your handle. A range of locks is available from our shop to suit all budgets including Anti Snap, Anti Bump, Keyed Alike & Thumb Turns.

Features:

• Supplied as a pair complete with spindle and screws
• Fully Sprung with 2 x spring cassettes supplied
• Aluminium levers & backplate
• Fully reversible to fit both left or right hung doors

What's in the pack?

1 x Set of Sparta 92PZ Lever Door Handles

1 x Spindle

1 x Packet Fixing Screws

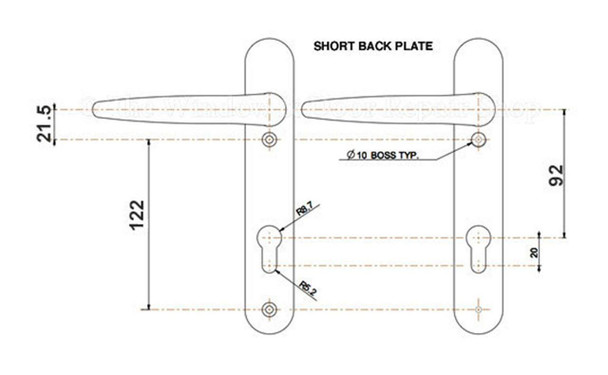

Dimensions:

• PZ Centres: 92mm critical dimension from centre of handle spindle to centre of barrel (the most common size)
• Spindle Size: 8mm
• Backplate width: 35mm
• Backplate depth: 12mm
• Backplate length: 212mm
• Distance between screw hole centres: 122mm
• For doors from 58mm - 70mm thick

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle (short backplate) measures 122 mm and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

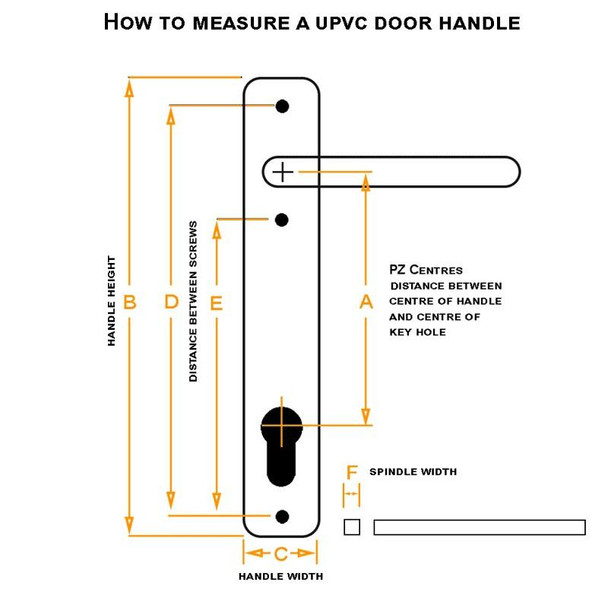

Important please check the critical measurements in the diagram in the gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
