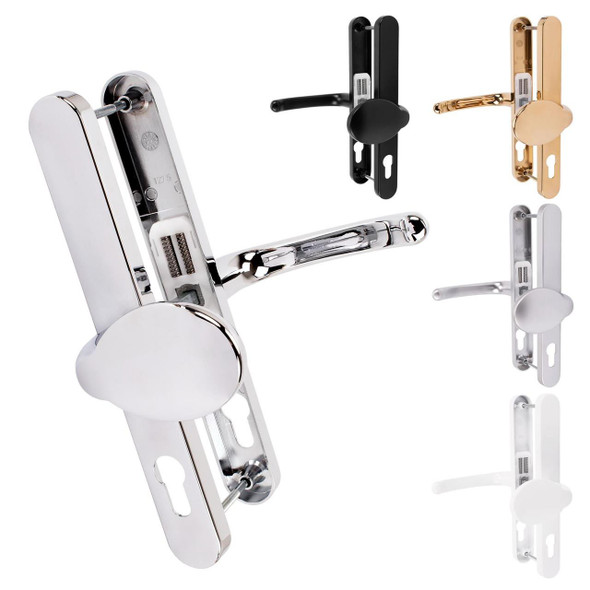

UPVC Lever Pad Door Handle Offset Pair 92PZ 70PZ 203mm Fixings Sprung Double Glazing Set TSS
The TSS Offset Lever Pad Door Handle Set, is a perfect blend of elegant design and reliable functionality. This innovative handle combines a sprung lever and moveable pad, seamlessly integrated onto a sleek backplate for a cohesive look and superior grip. Designed to suit multipoint locks, this fully reversible handle set adapts effortlessly to any door orientation, making it a versatile choice for homeowners and DIY enthusiasts alike. With durable spring cassettes ensuring smooth operation and fixing lugs providing unmatched stability, this handle is built to last.
Crafted to meet the highest standards, the TSS handle features offset centres (92mm internal PZ, 70mm external PZ) and a backplate measuring 235mm with 203mm screw centres, fitting doors with thicknesses between 55mm and 72mm. Tested for over 50,000 operations and treated with 240-hour salt spray testing; this handle’s polished chrome, silver, gold, and polished brass finishes ensure lasting beauty and resistance to wear. The set includes all installation essentials—spring cassettes, trimmable spindles, and colour-coordinated screws—allowing for hassle-free DIY installation with professional results.
Features:
- Offset Lever/Pad design
- Non-handed, suitable for both left and right handed doors
- Fully sprung
- Tested for over 50,000 operations
- Comfortable to use

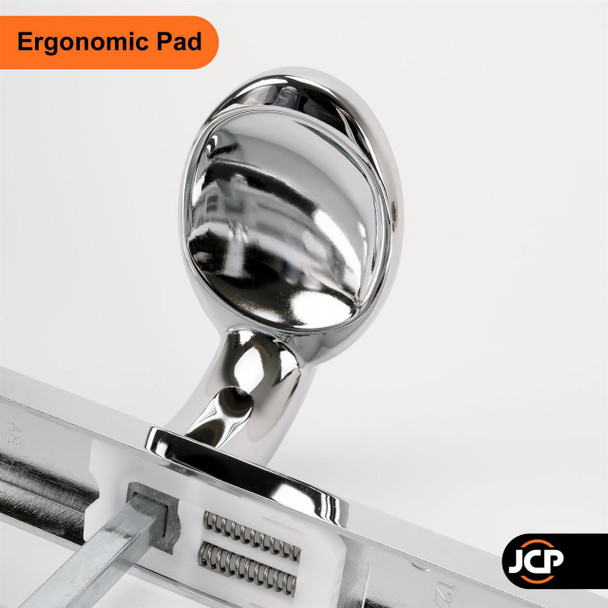

- Ergonomically designed pad
- 240-hour salt spray tested (polished gold, chrome, brass and silver finishes)
- Material: Zinc Alloy
- Easy to fit
What's in the Pack?
1 x Set of TSS Offset Lever Pad 92/70PZ Door Handles
2 x Trimmable 90mm Spindles
2 x Removable Spring Cassettes
4 x Screw fixings (2 x75mm 2 x 85mm)
Dimensions:
- PZ Centres: 92mm and 70mm
- Spindle width: 8mm
- Spindle length: 90mm
- Backplate width: 32mm
- Backplate depth: 12mm
- Backplate length : 235mm
- Distance between screw hole centres: 203mm
- Fits Door Thickness: 55mm to 72mm
What measurements should I check before ordering a handle set?
The most important measurements are the distance between screw holes centre to centre (this handle measures 203mm) and the distance from the centre of the handle/pad spindle to the centre of the barrel (this handle measures 92mm and 70mm as it is offset). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

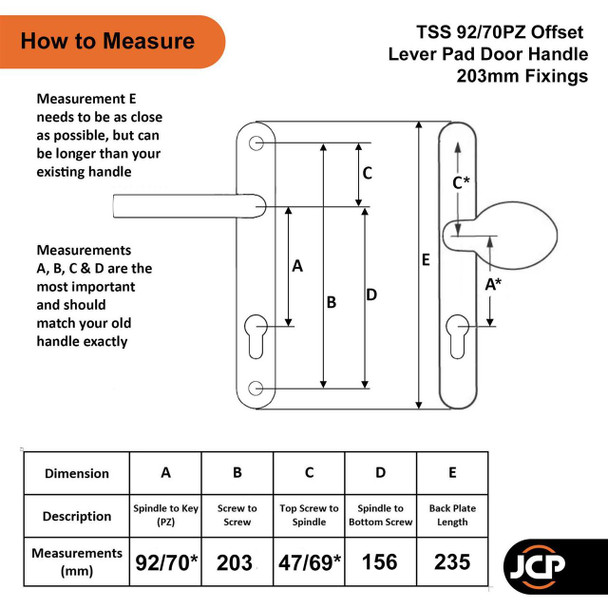

Important please check the critical measurements in the diagram in the gallery before ordering.
What does sprung mean?
Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
Item specifics
Handing: |
Left & Right |
PZ Centres: |
92mm & 70mm |
Screw Centres: |
203mm |
Spindle: |
8mm |
Sprung: |
Yes |
Suits Door Thickness: |
55-72mm |
Type: |
Lever/Offset Pad |
