TSS uPVC Door Handle 92mm PZ 200mm Fixings

TSS 92PZ Sprung Lever Door Handle Pair 200mm Fixings — uPVC Replacement Set

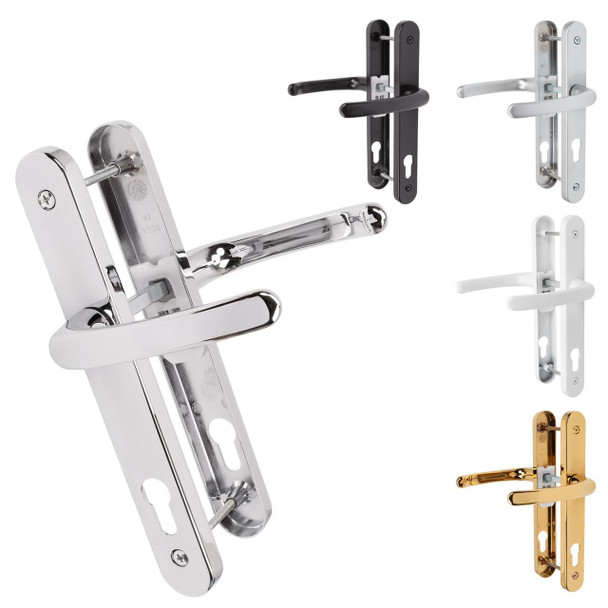

TSS 92PZ sprung lever door handle pair with 200mm fixing centres — a sturdy zinc alloy replacement set for uPVC doors fitted with multipoint locks.

TSS 92PZ Lever/Lever Multipoint Door Handle is a direct replacement handle pair designed for uPVC doors fitted with a 92PZ multipoint lock and 200mm fixing centres. If your existing handles have gone floppy, the spring has failed, or the levers have worked loose, this set restores smooth, positive operation without the cost of a full door replacement. The contemporary lever design is comfortable to grip, fully reversible for left or right-handed doors, and includes everything you need to fit the pair in one go.

Manufactured in robust zinc alloy and supplied with colour-coordinated fixings, return springs and an 8mm spindle, the TSS 92PZ pair is built to handle daily use on busy front, back and side entrance doors. Before ordering, please confirm your existing handle has a 92mm PZ (centre of spindle to centre of barrel) and 200mm between the screw hole centres — these two measurements must match exactly for the handle to fit. The set also suits door thicknesses from 60mm to 72mm, covering the majority of standard uPVC door slabs found on UK homes.

Key Benefits for uPVC Door Owners:

• Restores Smooth Lever Action – The built-in spring cassettes return the levers cleanly to the horizontal every time, eliminating the floppy, drooping handles that plague worn-out door hardware and making the door feel solid again.
• Cost-Effective Repair – Replacing a tired handle pair is a fraction of the cost of fitting a new door, making this a sensible upgrade for any homeowner who wants their existing door working properly again.
• Universal Handing – The levers are fully reversible by design, so a single set works on left or right-handed doors, both inside and out — no need to worry about ordering the wrong configuration.
• Robust Zinc Alloy Construction – The backplates and levers are made from a hard-wearing zinc alloy that withstands daily use and won't bend or distort under normal load.
• Complete Fitting Pack Included – Spindle, spring cassettes and matching screws are all in the box, so there's no second trip to the merchant once you've started the job.
• Fits Most uPVC Doors – Designed for door thicknesses from 60mm to 72mm, this pair suits the majority of standard uPVC doors fitted across UK homes.
• 200mm Fixing Centres for Common Multipoint Locks – Matches the 200mm screw spacing used by many UK multipoint lock cases, making it a straightforward swap when the screw holes line up.
• Fixing Lugs on Both Backplates – Lugs on the rear of both backplates locate the handles squarely on the door and help prevent rocking once the screws are tightened.

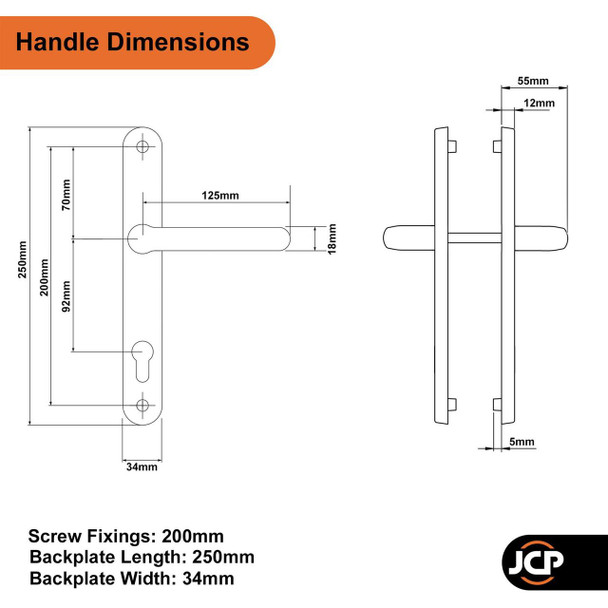

Product Specifications:

• Brand: TSS
• Product Type: Lever/Lever Sprung Door Handle Pair
• Material: Zinc Alloy
• PZ Centres: 92mm
• Fixing Centres: 200mm (distance between screw hole centres)
• Spindle Size: 8mm x 125mm
• Suitable Door Thickness: 60mm – 72mm
• Backplate Length: 250mm
• Backplate Width: 34mm
• Backplate Depth: 12mm
• Lever Length: 125mm
• Top Screw Hole to Centre of Spindle: 70mm
• Bottom Screw Hole to Centre of Spindle: 130mm
• Base of Euro to Bottom Screw Centre: 14mm
• Spring Action: Sprung (return springs included)
• Handing: Universal — fully reversible

Please measure your existing handles carefully before ordering. The two critical dimensions are the distance between the screw hole centres (200mm on this set) and the distance from the centre of the spindle to the centre of the lock barrel (92mm — known as the PZ measurement). If you are unsure which size you need, please contact us and we'll be happy to help.

Pro Tips:

Pro Tip: Before you order, remove your existing handle and check whether the levers spring back to horizontal on their own when lifted. If they do, you need a sprung replacement like this one. Fitting a sprung handle in place of an unsprung handle is fine — but fitting an unsprung handle where a sprung one was can leave you with drooping levers, because not all multipoint lock cases include their own return spring.

Package Contents:

• 1 × Pair of TSS 92PZ Lever/Lever Door Handles (200mm fixing centres)
• 1 × 8mm Spindle (125mm)
• 1 × Colour-coordinated Screw Pack (4 Screws - 2 x 80mm, 2 x 70mm)
• 2 × Spring Cassettes

Frequently Asked Questions:

Will this handle fit my uPVC door?
This handle is designed for uPVC doors with a 92PZ multipoint lock and 200mm screw fixing centres, on door slabs between 60mm and 72mm thick. The two critical checks are the PZ measurement (centre of spindle to centre of barrel — should be 92mm) and the distance between the two screw holes (should be 200mm centre to centre). If both match your existing handle, this set will fit.

What does "sprung" mean and how do I know if I need a sprung handle?
A sprung handle has return springs fitted inside the backplate that pull the lever back to the horizontal position after you release it. To check, remove your existing handle and operate the lever — if the spring is in the handle itself rather than the lock case, you need a sprung replacement. An unsprung handle can be swapped for a sprung one, but a sprung handle should not be replaced with an unsprung version.

What tools will I need to fit it?
A Phillips/cross-head screwdriver is usually all you'll need. Remove the two screws holding your existing handle, lift the old handles and spindle out, fit the new spindle and spring cassettes, position the new handles either side and tighten the supplied screws.

Is the handle reversible for use on a left or right-handed door?
Yes. The levers are fully reversible by design, so the same pair works on doors of either hand. This also means the handle suits both inswinging and outswinging doors.

What if my fixing centres are 215mm or a different measurement?
This particular set is for 200mm fixing centres only. We stock 92PZ handles in other fixing centres including 211mm and 215mm — please check our other listings or contact us with your measurement and we'll point you to the correct match.

Why Choose the TSS 92PZ Lever/Lever Door Handle?

TSS is a trusted name in uPVC door hardware, and this 92PZ sprung lever pair offers reliable, no-nonsense replacement at a sensible price. The zinc alloy construction is built for daily use, the spring return keeps the levers feeling crisp, and the universal handing means there's nothing complicated about getting the right product first time. For a homeowner looking to restore a tired door without the expense of a full replacement, this set ticks every box.

At JCP Hardware, we've been supplying genuine UK-sourced window and door parts for over 30 years. If you have any doubts about whether this is the correct handle for your door, send us your measurements and we'll confirm fit before you commit — so you can order with confidence.
