Sparta Inline Sliding patio Door Handles XL

Trojan Sparta XL Patio Door Handle Pair 92PZ Inline Locking — Reversible for uPVC Sliding Doors

Replace worn or stiff sliding patio door handles with confidence — but please check your PZ measurement and screw hole centres match before ordering to ensure a direct fit.

Trojan Sparta Sliding Patio Door Handles are a tried-and-trusted replacement for damaged or worn inline locking handles on uPVC sliding patio doors. If your existing handles are stiff, broken, or simply past their best, the Sparta pair offers a straightforward like-for-like swap without the cost of a full door replacement. To confirm compatibility, you will need to check two measurements on your existing handle: the PZ measurement must be 92mm (the distance from the centre of the euro cylinder to the centre of the handle spindle), and your screw hole centres must be 154mm. If both measurements match, the Sparta handles should fit without modification.

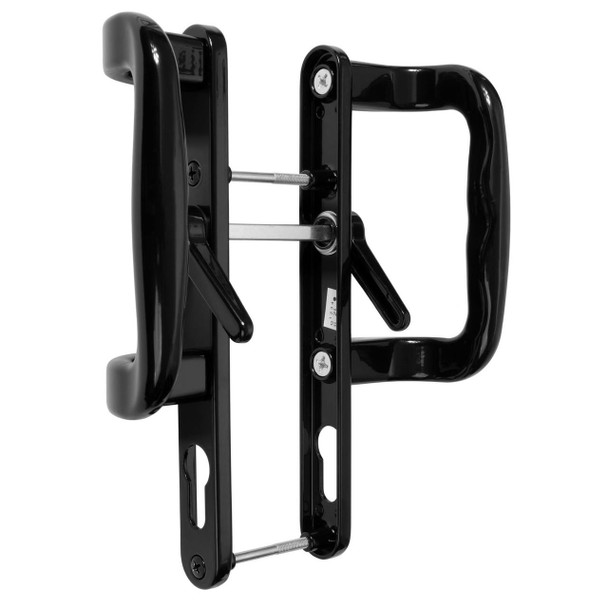

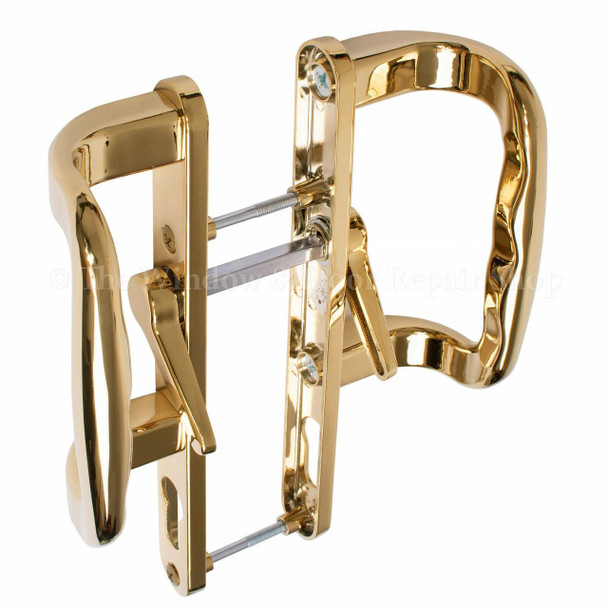

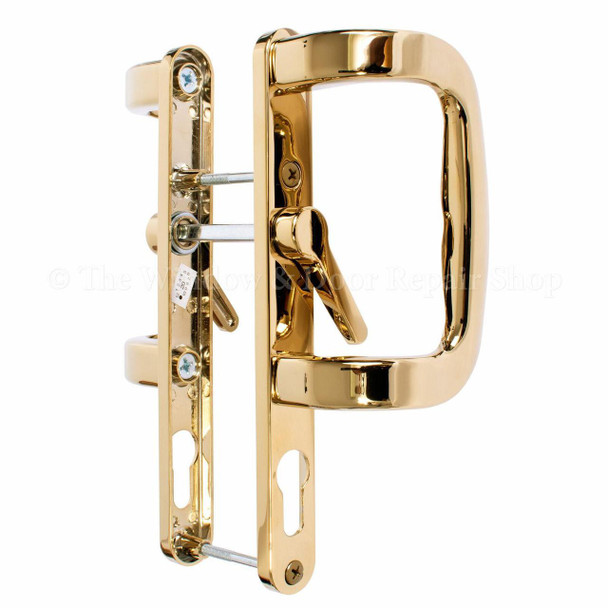

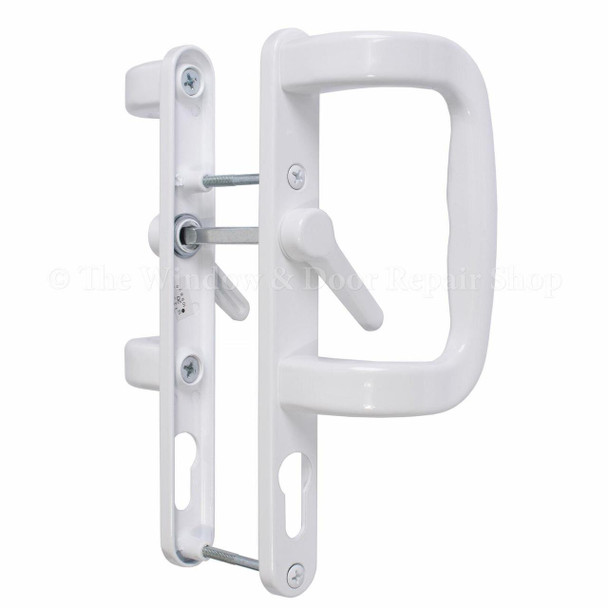

Constructed from zinc alloy for lasting rigidity and smooth lever action, the Sparta handles are finished to a high standard and available in White, Polished Chrome, Polished Gold, and Black — making it straightforward to match your existing door furniture. Three spindle lengths and six fixing screws are included in every pack, so you won't need a separate trip to the hardware shop before you can get started.

Key Benefits for uPVC Sliding Patio Door Owners:

• Reversible Design — Fits Left or Right-Hand Sliding Doors — The Sparta's symmetrical grip means it works on either side of your sliding door. Simply unscrew the handle from the backplate, rotate 180°, and refit — no specialist knowledge or additional parts required.
• Check Both Measurements First — Direct Replacement When Your Door Matches — The Sparta is a direct replacement when your existing handle has a 92mm PZ measurement (centre of euro cylinder to centre of handle spindle) and 154mm screw hole centres. Both measurements must match for a no-modification fit — if you are unsure, please check before ordering or message us and we'll help you confirm compatibility.
• Three Spindles Included — One Pack Covers 39–53mm Door Sashes — Rather than having to identify your exact sash thickness before ordering, the pack includes 70mm, 80mm, and 84mm spindles so you can select the right fit on the day. This saves time, reduces the risk of ordering the wrong part, and gets your door working again sooner.
• Zinc Alloy Construction — Built to Last Through Daily Use — The die-cast zinc alloy body gives the Sparta handles the rigidity needed for a sliding door that's in regular use, resisting flex and wear far better than inferior plastic alternatives.
• Four Finish Options — Match Your Existing Door Furniture — Available in White, Polished Chrome, Polished Gold, and Black, making it easier to achieve a consistent look across your patio door without mismatched hardware drawing the eye.
• Complete Fixing Kit Included — Ready to Fit Straight Away — Every pack contains the handles, three spindles, and six fixing screws, so you have everything needed for installation without needing to source additional fixings separately.
• Cost-Effective Repair — Restore Full Function Without Replacing the Door — Replacing handles rather than the entire door assembly is a fraction of the cost, and with the Sparta's straightforward fitting process, it's well within reach of a confident DIYer over a weekend.

Product Specifications:

• Brand: Trojan
• Range: Sparta XL
• Handle Material: Zinc Alloy
• PZ Measurement: 92mm (centre of euro cylinder to centre of handle spindle)
• Handle Length: 220mm
• Handle Width: 25mm
• Screw Hole Centres: 154mm
• Spindles Supplied: 3 × 7mm square — 70mm, 80mm, and 84mm lengths
• Sash Thickness Coverage: 39mm–53mm
• Handing: Universal / Reversible (left or right-hand)
• Door Type: Sliding Patio Door
• Locking: Inline locking (XL / Yale lock configuration)
• Available Finishes: White, Polished Chrome, Polished Gold, Black
• Fixings Supplied: Yes — 6 × fixing screws included

Important: Before ordering, please measure both your PZ measurement (92mm) and your screw hole centres (154mm) on your existing handle. Both measurements must match for a direct fit. If you are unsure of either measurement, please message us before ordering and we'll be happy to help you confirm compatibility.

Pro Tips:

Pro Tip: Before ordering, confirm two measurements: your PZ measurement should be 92mm (centre of euro cylinder to centre of handle spindle) and your screw hole centres should be 154mm. If both match, you're good to go. To find your correct spindle length, measure the full thickness of your door sash (the sliding panel itself, not the frame) and select the closest spindle from the three supplied. When refitting, tighten fixing screws gradually and evenly on both handles to ensure the backplates seat flat against the door face.

Package Contents:

• 1 × Pair of Trojan Sparta XL Sliding Patio Door Handles (internal & external)
• 3 × Spindles (7mm square — 70mm, 80mm, and 84mm lengths)
• 6 × Fixing Screws

Frequently Asked Questions:

Will the Trojan Sparta handles fit my uPVC sliding patio door?
The Sparta handles will fit as a direct replacement if — and only if — your existing handle has a PZ measurement of 92mm (the distance from the centre of the euro cylinder to the centre of the handle spindle) and screw hole centres of 154mm. Both measurements must match. Please check these on your existing handle before ordering. If you are unsure how to measure either, please message us before purchasing and we will help you confirm whether these handles are the right fit for your door.

How do I know which spindle length to use?

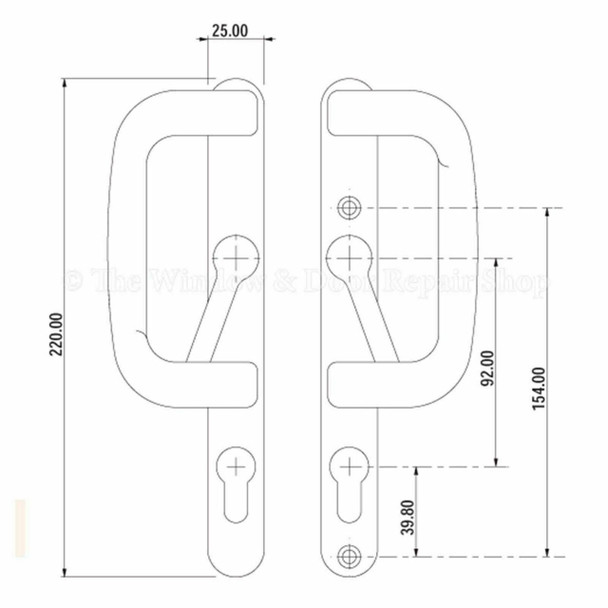

Measure the full thickness of your door sash — the sliding panel itself, not the outer frame. The three spindles supplied cover sash thicknesses from 39mm to 53mm. Select the spindle that, once fitted, sits flush or with minimal protrusion on both sides of the door. If in doubt, refer to the technical diagram in the product gallery or get in touch with us before fitting.

Can I fit these handles on a right-hand sliding door?
Yes. The Sparta is a universal, reversible design. To change the handing, unscrew the lever from the backplate, rotate it 180°, and refit. No additional parts are needed. This makes the Sparta suitable for both left-hand and right-hand sliding configurations.

Are screws included, and will they suit my door material?
Six fixing screws are included in the pack. However, as sliding patio door frames vary — and some customers may be fitting into timber or composite surrounds rather than standard uPVC — we recommend checking the included screws against your door before committing. If your door requires a different screw type or length, standard M5 fixings of an appropriate length are widely available.

What finishes are available, and are they sold separately?
The Sparta handle pair is available in White, Polished Chrome, Polished Gold, and Black. Each finish is listed as a separate product — please ensure you select the correct colour variant before adding to your basket, as we are unable to exchange items ordered in the wrong finish.

Why Choose the Trojan Sparta Sliding Patio Door Handles?

The Trojan Sparta is a reliable, no-nonsense replacement handle for uPVC sliding patio doors — but getting the right fit starts with checking the right measurements. Confirm your PZ measurement is 92mm and your screw hole centres are 154mm, and the Sparta will drop straight in without modification. The reversible design, multi-spindle pack, and zinc alloy construction mean that once fitted, you have a handle that will stand up to years of daily use without the expense of a full door replacement.

At JCP Hardware, we want every order to be the right one first time. If you have any doubts about compatibility before ordering, please message us — our team is on hand to help you confirm whether the Sparta is the correct replacement for your specific door, at no obligation.
