Sliding Patio Door Lock Security Dead Bolt Push Key Locking UPVC Metal Windows
The Sliding Patio Door Lock Security Deadbolt will enhance your home’s safety being both robust and reliable. Designed for ultimate convenience, this lock features a simple push-button mechanism, securely released with a key for effortless operation. Engineered for durability, it installs at a 90° angle to the glass, typically at the base of your patio door or window, delivering discreet but powerful protection.

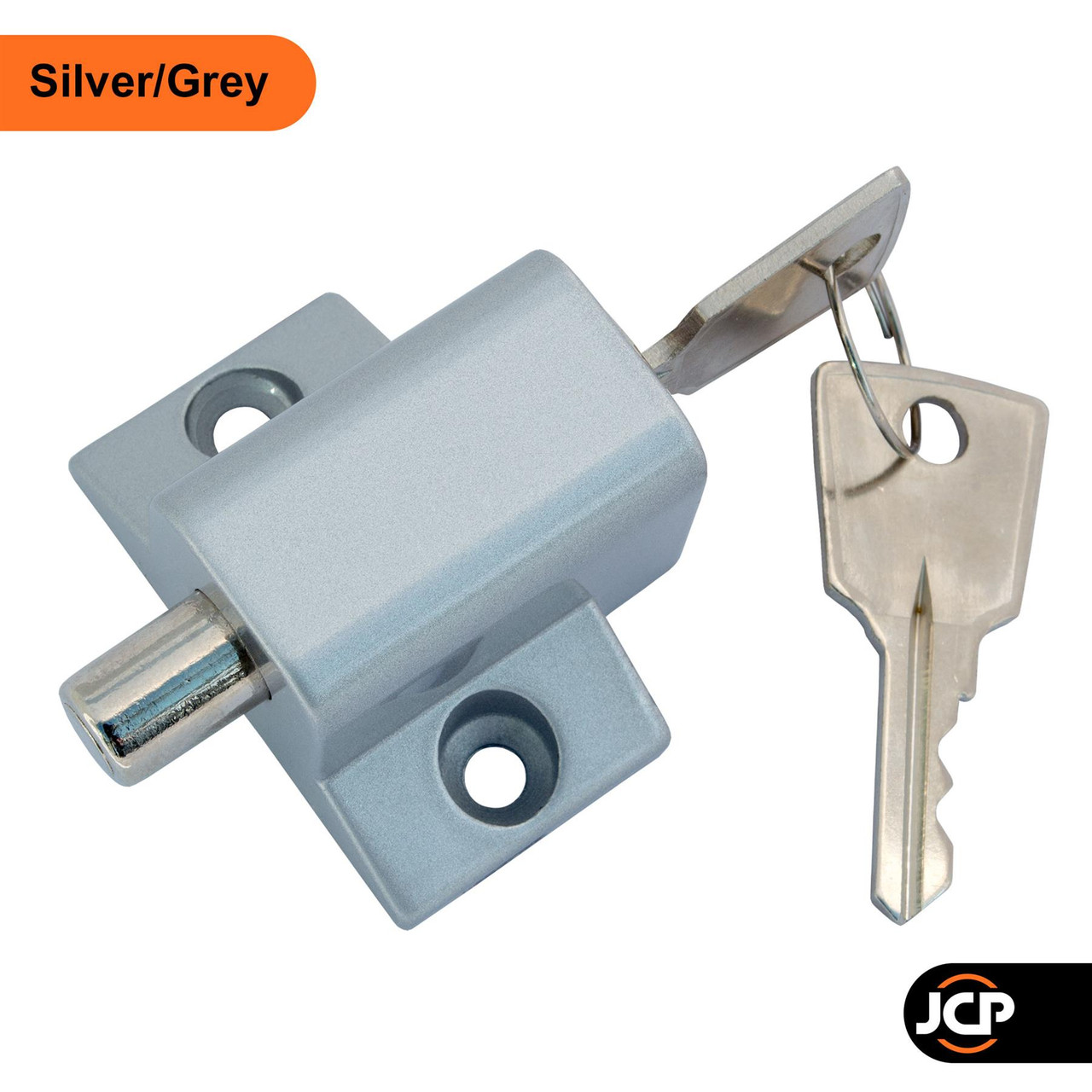

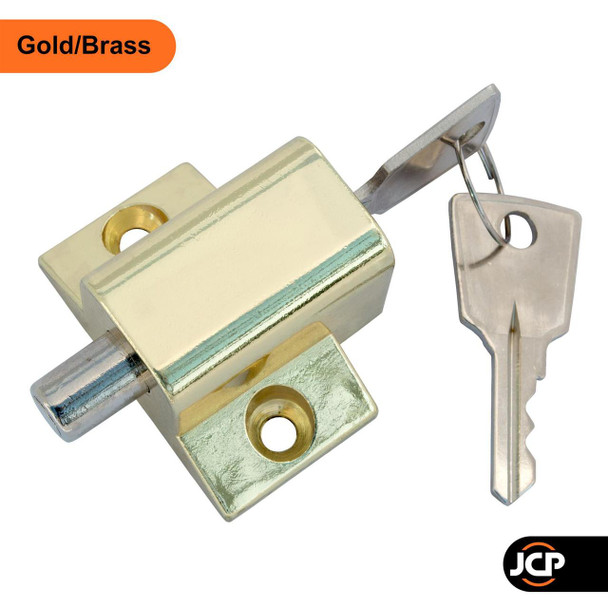

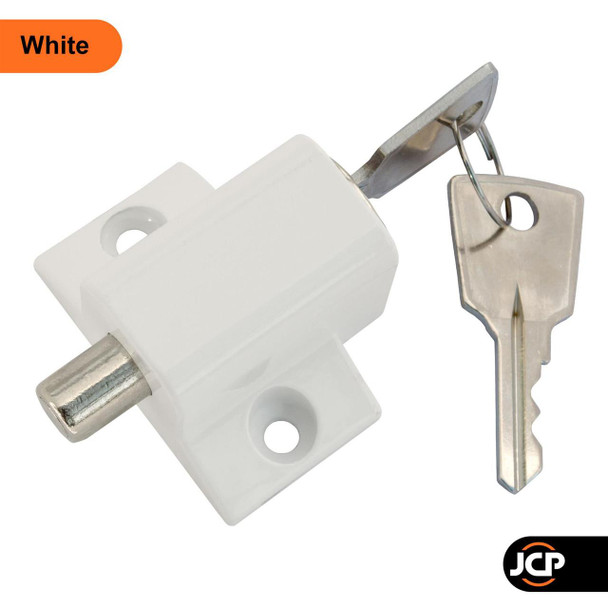

Once installed, the sturdy lock bolt engages directly with the sliding leaf, effectively preventing unwanted access by halting the door’s movement. With a sleek design available in Silver/Grey, Gold/Brass, or White, this lock not only bolsters security but complements your door’s aesthetics. Easy to install and reliable, this deadbolt is the perfect solution for an extra layer of peace of mind..
Features:
- Easy to use push button - key release
- Material: Metal alloy
- Choice of three colours
- Easy to fit
- Effective additional security
What's in the pack?
1 x Sliding Patio Door Lock
2 x Keys
1 x Bolt Locating Grommet
4 x Screws
Dimensions:
- Height: 25mm
- Width: 45mm
- Length: 35mm
- Bolt Throw: 13mm
- Distance between screw hole centres: 33mm
All dimensions are approximate.
Please refer to dimensions diagram in the gallery.
Fitting:
- This lock can be fitted to the frame, threshold strip (for double sliding doors, not in the centre) or the door itself.
- CAUTION: Before drilling or fitting screws, check position of glass, seals and any operating gear
- Once you have calculated where to place the lock, hold it in place and carefully mark the position of the bolt hole.
- Drill a hole 12.5mm diameter and insert the grommet provided. Tap in gently with a mallet if required
- With the bolt fully located into the grommet, mark the position of the fixing holes and carefully drill holes for the screws
- Secure with screws provided
Specifications
Lock Type: |
Key Locked Deadbolt |
Type: |
Patio Door Security |
