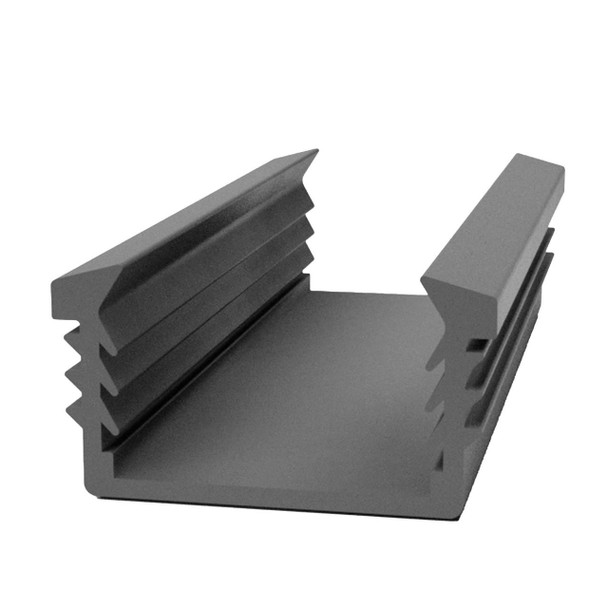

R0929 Patio Door U Channel Gasket Seal Black Rubber Wrap Around Replacement Seal

Reddiglaze R0929 Patio Door Gasket Seal 25m Roll — Black TPR U-Channel Gasket

Reddiglaze R0929 patio door gasket seal on a 25 metre roll. Black TPR U-channel wrap-around seal — no adhesive needed. Check dimensions before ordering.

Reddiglaze R0929 Patio Door Gasket Seal is now supplied as a full 25 metre roll, giving you enough continuous length to reseal multiple patio doors, windows or an entire glazing run in one go. This U-channel wrap-around gasket sits between the glass and the frame to shut out draughts, water ingress and heat loss — with no adhesive required. Fit is determined by your existing channel and glazing gap, so please compare the profile dimensions shown in the product images against your old gasket before ordering, as this gasket will only seal correctly if the profile matches.

Manufactured from durable TPR (Thermoplastic Rubber) to BS7412 standards, the R0929 keeps its flexibility and recovery far longer than the hardened, shrunken seals it replaces. Buying by the roll rather than by the metre means fewer joins, less waste and a lower cost per metre — useful if you have several doors to work through or want spare length on the shelf for future repairs.

Key Benefits for uPVC Patio Door Owners:

• 25 Metres of Continuous Seal – Enough length to tackle several patio doors or a full glazing run without stopping to reorder. Fewer joins means fewer weak points where draughts can creep back in.
• Lower Cost Per Metre – Buying the full roll works out considerably cheaper than short cut lengths, so a multi-door repair costs a fraction of replacing the doors themselves.
• Draught Elimination – Forms a tight barrier between glass and frame to stop cold air tracking through, helping cut heat loss and keep heating bills down through the winter months.
• Weatherproof Protection – Blocks driving rain and moisture at the glazing line, protecting flooring, plaster and frames from the water damage that failed seals allow.
• No Adhesive Required – The U-channel simply wraps around and grips the edge of the glass and frame. No messy glues, no solvent cleaners, no waiting for anything to cure.
• UV and Ozone Resistant – Stays flexible in direct sunlight and exposed positions rather than going brittle and cracking, which matters on south-facing and coastal patio doors.
• High Deflection Recovery – Springs back after compression, so the seal keeps working every time the door is opened and closed rather than flattening out within a season.
• Abrasion and Flex Resistant – Stands up to daily door operation without wearing thin or tearing, giving you a repair that lasts rather than one you revisit next year.
• Manufactured to BS7412 – Made to a recognised British Standard, so you know you're not fitting a cheap import that shrinks back within months.
• Straightforward DIY Fit – Old gasket out, channel cleaned, new gasket pressed in. No specialist tools and no glazier's call-out charge.

Product Specifications:

• Brand: Reddiglaze
• Model: R0929
• Supplied As: 25 metre roll (single continuous length)
• Material: TPR (Thermoplastic Rubber)
• Colour: Black
• Style: U-channel wrap-around gasket
• Application: Patio door glass-to-frame sealing
• Sealing Type: Suitable for dynamic and static sealing
• Installation: No adhesive required
• Compliance: BS7412

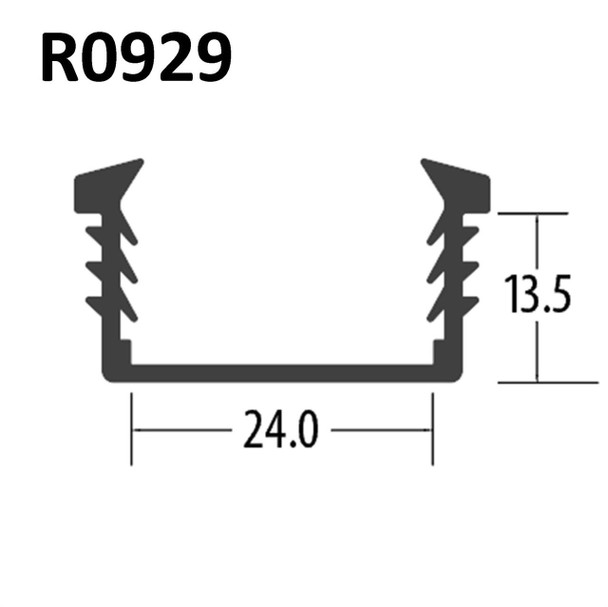

Please compare the gasket profile dimensions shown in the product images against your existing seal before ordering. Gasket profiles vary considerably between systems, and a section that looks similar may not grip correctly. If you are unsure which profile you need, please contact us with a photo or a sample of your old gasket and we'll be happy to help.

Pro Tips:

Pro Tip: Work directly from the roll rather than pre-cutting every length. Start at the bottom centre of the glass, work all the way round, and only cut once you are back at the start — adding around 6cm before you trim. TPR relaxes slightly as it settles into the channel, and a gasket cut fractionally long can be eased back in, while one cut short leaves a gap at exactly the point where water gets in.

Advantages of TPR (Thermoplastic Rubber):

• Versatile Applications – Suitable for both dynamic and static sealing requirements
• Trade Standard – Conforms to BS7412 specifications for assured quality
• High Deflection Recovery – Maintains its shape after compression for reliable sealing
• No Migration – Does not release compounds that could stain or damage surrounding materials
• Chemical Resistance – Unaffected by most aqueous oils and oil-based fluids
• Mechanical Durability – Resistant to abrasion and flex fatigue for long-term performance
• Environmental Protection – Ozone resistant and UV stable for outdoor applications
• Long Lifespan – Superior ageing properties compared to conventional rubber

Package Contents:

• 1 × Reddiglaze R0929 Patio Door U-Channel Gasket Seal — 25 metre roll

Frequently Asked Questions:

How do I know if this gasket will fit my patio door?
Compare the profile dimensions shown in our product images against your existing gasket — the channel width and depth both need to match, not just the overall look of the section. The easiest check is to remove a short offcut of your old seal and measure it directly. If you are at all unsure, send us a photo or measurements and we'll confirm before you order.

How many patio doors will a 25 metre roll cover?
It depends on the size of your glazed panels, but as a rough guide a typical patio door pane needs around 5 to 6 metres of gasket to go fully around the perimeter. A 25 metre roll will usually cover a standard two-panel patio door set with plenty spare, or several smaller units. Measure the perimeter of each pane and add roughly 10% for trimming.

Does this gasket need to be glued in place?
No. The R0929 uses a U-channel design that wraps around the edge of the glass and frame and grips mechanically. There is no adhesive, tape or sealant involved, which also makes it far easier to remove and replace again in future.

Will this stop condensation between my double glazed panes?
No — that is a different fault. This gasket seals between the glass and the frame, stopping external water and draughts getting past. Misting or condensation sitting *between* the panes means the sealed unit itself has failed, and that requires the glass unit to be replaced rather than the gasket.

How difficult is it to fit, and what will I need?
It is well within reach of most DIYers. Ease out the old gasket, clean the channel thoroughly so no grit or perished rubber remains, then press the new section in gradually around the perimeter. A plastic trim tool or a blunt scraper and a sharp knife for trimming are all that's typically required — no specialist glazing tools.

Why Choose the Reddiglaze R0929 Patio Door Gasket Seal?

Failed glazing gaskets are one of the most common causes of draughty, leaking patio doors — and one of the cheapest faults to put right. The Reddiglaze R0929 is manufactured from BS7412-compliant TPR that holds its flexibility and recovery long after budget alternatives have shrunk, hardened and let the weather back in. Supplied on a full 25 metre roll, it gives you the length to do the job properly in one visit, with enough left over for future repairs. For the cost of a roll of gasket, you get warmer rooms, a dry floor and doors that seal the way they did when they were new.

JCP Hardware has supplied uPVC door and window replacement parts for over 30 years, and gaskets are one of the parts we get asked about most. If you are not certain which profile you need, send us a photo or a short offcut of your old seal before you order and we'll point you to the right one.
