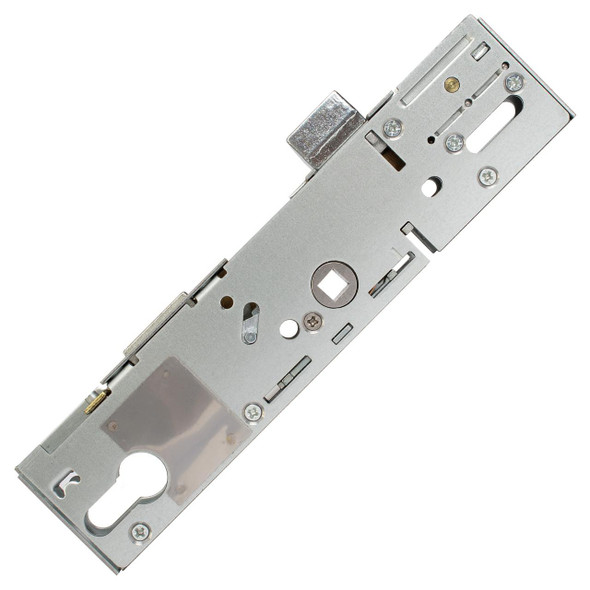

ERA Laird Saracen 6000 Cego Hook Gearbox for Multipoint Door Lock

Multipoint Door Lock Gearbox Only Era Laird Saracen 6000 Cego UPVC 35mm Backset

This is a replacement hook gearbox for ERA, Laird, Saracen Surelock multipoint locks and has a back set of 35mm (measurement from handle spindle centre to front of lock faceplate). This is the part that is most likely to be at fault when a lock fails and becomes unusable. Replacing the gearbox is cost effective as it saves having to buy a complete new lock and it is quite easily achieved.

These ERA manufactured gearboxes with fit many brands, but as always taking careful measurements will ensure a correct fit. The latch is easily adaptable to fit both left and right handed doors, it is designed for use with lever/lever handles but the addition of a split spindle will also allow for a lever/pad operation.

Features:

• Single Spindle for Lever/ Lever operation
• Non Handed - fits both left and right handed doors

What's in the pack?

1 x Multipoint Door Lock Gearbox Only Fits Era Laird Saracen 6000 Cego UPVC 35mm Backset

Dimensions:

• Lock case length: 220mm
• Lock case depth: 50mm
• Lock case width: 15mm
• Centre of latch to centre of deadbolt - 87.5mm
• Deadbolt length: 29.5mm
• Deadbolt thickness: 5.3mm
• Distance between faceplate screw holes: First to second screw hole 43mm - Second to third screw hole 85.5mm
• PZ: 92mm
• Backset: 35mm

Please see technical diagram in gallery.

What should I check before ordering a new door lock gearbox case?

The most important measurements are the backset and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.

Please see technical diagram in gallery.
