JCP Timber Wood Window & Door Bubble Gasket – Rubber Seal for Double Glazing (Per Metre)

JCP Timber/Wood Window & Door Bubble Gasket - Rubber Seal for Double Glazing

Premium "Silplex" Material Gasket for Superior Weather Protection & Draught Proofing

JCP Timber/Wood Bubble Gasket provides exceptional weather protection for your timber and wood windows and doors, effectively sealing gaps against draughts, moisture, and noise. Ideal for DIY draught-proofing and window restoration projects, this high-performance gasket offers a simple solution to improve your home's energy efficiency.

Manufactured using the unique "Silplex" material, this professional-grade gasket delivers outstanding tear resistance and deflection recovery, ensuring long-lasting performance even in harsh weather conditions. The easy push-in design allows for straightforward installation into timber frames, creating a reliable seal that maintains its effectiveness year after year.

Please note: The gasket will be sent as one continuous length.

Key Benefits:

• Superior Weather Protection – Creates an effective barrier against wind, rain and draughts, helping to keep your home warm and dry
• Energy-Saving Performance – Reduces heat loss through windows and doors, potentially lowering heating bills and improving comfort
• Excellent Acoustic Properties – Helps reduce outside noise penetration for a quieter, more peaceful living environment
• Easy Installation – Simple push-in design fits securely into timber frame grooves without special tools or adhesives
• Durable Construction – High-performance "Silplex" material maintains resilience and effectiveness through extreme temperature changes
• UV and Ozone Stable – Resistant to degradation from sunlight and environmental factors, ensuring long-lasting performance
• Versatile Application – Suitable for both top and bottom sash positioning, providing comprehensive sealing solutions
• Low Maintenance – Easy to clean and maintain, requiring minimal attention after installation

Product Specifications:

• Brand: JCP
• Material: "Silplex" High-Performance Rubber

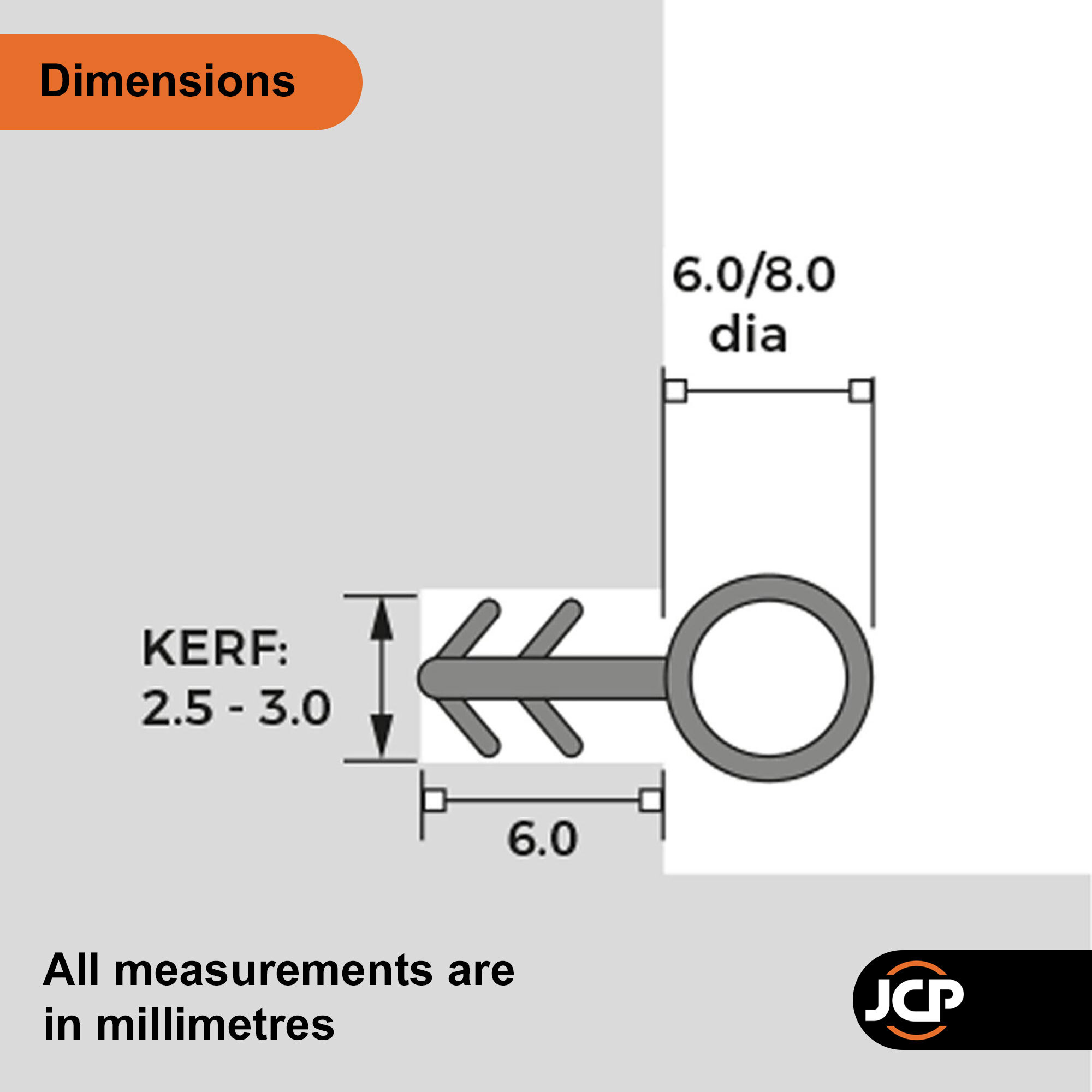

• Available Sizes: 6mm (seals gaps 2-5mm) or 8mm (seals gaps 3-7mm)
• Groove Compatibility: 2.5-3mm width, 6mm depth
• Length: The gasket will be sent as one continuous length.

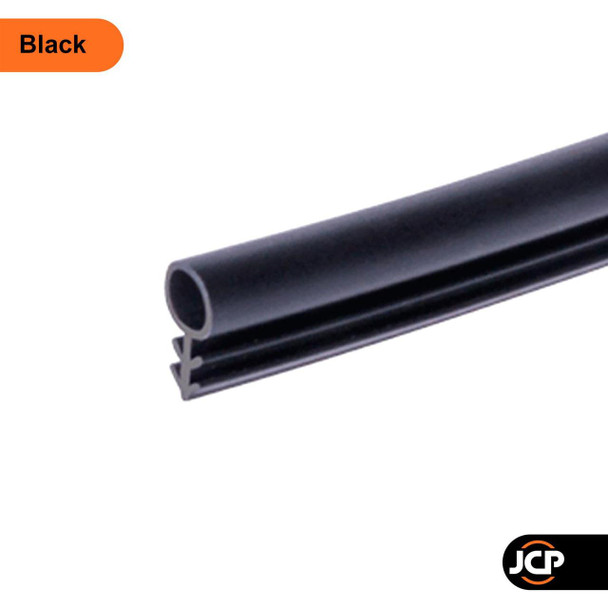

• Colour: Black
• UV Resistant: Yes
• Ozone Stable: Yes
• Application: Timber window and door frames

Please note: All measurements are approximate.

Please note: The gasket will be sent as one continuous length.

Technical Data:

Polypropylene (Properties may vary depending upon the application)

• Relative Density: 0.91 G/cm³
• Vicat Softening Point (B): 154°C
• Heat Deflection Temperature: 91°C
• Charpy Notched Impact Strength: 50 KJ/m²
• Tensile Strength: 27 MPa
• Flexural Modulus (23°C): 1300 MPa
• Coefficient of Thermal Expansion: 6 x 10⁻⁵ °C
• Thermal Conductivity @ 23°C: 0.16 W/M-K
• Elongation at Break: 20 - 40%

Silplex - TPE (Properties may vary depending upon the application)

• Relative Density: 1.13 G/cm³
• Hardness: 43 Shore A
• Tensile Strength: 6.6 MPa
• Tear Strength: 23 N/mm
• Compression Set 22hr/70°: 34%
• Wear Resistance: 320 mm³
• Elongation at Break: 520%

Package Contents:

• JCP Timber/Wood Window & Door Bubble Gasket - Rubber Seal for Double Glazing (length as ordered)

Frequently Asked Questions:

How do I know which size gasket to order?
Measure the gap between your window/door and frame. Choose 6mm gasket for gaps between 2-5mm or 8mm gasket for gaps between 3-7mm. Also ensure your frame has a groove between 2.5-3mm wide and at least 6mm deep.

How difficult is installation?
Installation is straightforward - simply press the gasket into the groove in your timber frame. The seal is a simple push fit into the groove and fits alongside the bead or overlap of the window. A roller can be used to roll the seal into the groove to aid insertion. Please make sure not to damage the seal while doing this. No adhesives or special tools are required, making it an ideal DIY project.

How do I measure accurately for installation?
Measure around the entire unit where the gasket will be installed, then add approximately 6cm extra before cutting. This prevents the common mistake of cutting the gasket too short.

Will this gasket help reduce my heating bills?
Yes. By creating an effective seal against draughts, this gasket helps prevent heat loss through windows and doors, potentially improving your home's energy efficiency and reducing heating costs.

How long does the gasket typically last?
Thanks to its UV and ozone stable "Silplex" material, the gasket maintains its performance for many years. Its high tear strength and excellent deflection recovery ensure long-lasting effectiveness even with regular window/door operation.

Why Choose JCP Timber/Wood Bubble Gasket?

Investing in quality weather seals for your timber and wood windows and doors is one of the most cost-effective home improvements you can make. The JCP Timber/Wood Bubble Gasket combines professional-grade materials with straightforward DIY installation, delivering immediate benefits in comfort, noise reduction, and energy efficiency. Unlike cheaper alternatives that quickly compress or deteriorate, the premium "Silplex" material maintains its performance year after year, providing lasting value and protection for your home.
