Greenteq Alpha 25 UPVC Door Handle Pair 92mm PZ 215mm Fixings

Greenteq Alpha 25 UPVC Stainless Steel Door Handle Pair 92mm PZ 215mm Fixings Coastline

These superb quality Greenteq Coastline Alpha 25 door handles are manufactured in grade 304 stainless steel giving exceptional corrosion resistance. They have been manufactured to an extremely high standard which offers outstanding product performance and value. These sprung lever/lever handle sets have been designed to be fully reversible to fit both left or right hung doors. The return spring cassettes are fitted over the spindle hole, ensuring that the handle is held at 90° with no sag.

The Coastline Alpha 25 handle set is designed to replace handles with lift lever operated multipoint locking mechanisms with a 92mm PZ centre (distance from centre of handle spindle to centre of barrel) and distance between screw hole fixings of 215mm.

These handles are stylishly elegant and because they are constructed from 304 stainless steel they also provide excellent resistance to corrosion. The Coastline range from Greenteq is suited with their stainless steel letterboxes and stainless steel knockers and is also interchangeable with standard Greenteq door furnishings.

You may want to update your existing cylinder locks at the same time as replacing your handle: we supply a range of locks in our shop to suit all budgets including Anti Bump, Keyed Alike & Thumb Turns.

Features:

• Manufactured in Grade 304 stainless steel construction for exceptional corrosion resistance

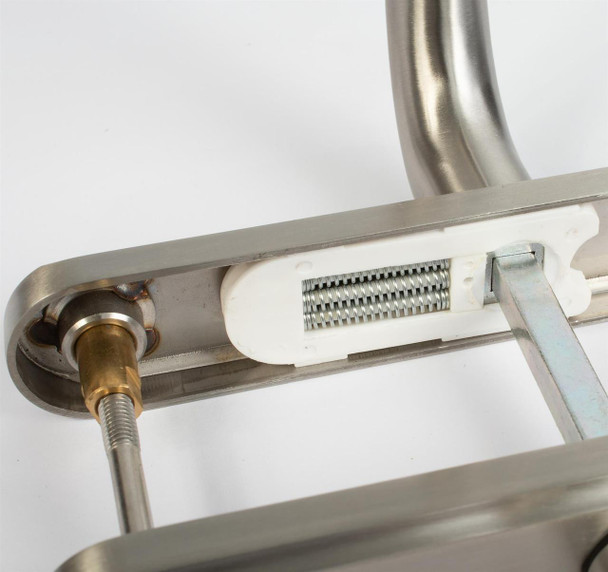

• Incorporates two spring cassettes which eliminate the drooping handle effect
• Universal handing (handle can be rotated for left or right handing)
• Supplied as a pair complete with two spring cassettes, two spindles and four fixing screws

What's in the pack?

1 x Set of Stainless Steel Door Handles

2 x Spindles (2 different lengths)

4 x M6 Fixing Screws (2 different lengths)

Dimensions:

• PZ Centres: 92mm critical dimension (from centre of handle spindle to centre of barrel)
• Spindle Size: 8mm
• Backplate width: 32mm
• Backplate depth: 10mm
• Backplate length: 250mm
• Distance between screw hole centres: 215mm
• Fits doors up to 72mm thickness

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre (this handle measures 215mm) and the distance from the centre of the handle spindle to the centre of the barrel (this handle measures 92mm). The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

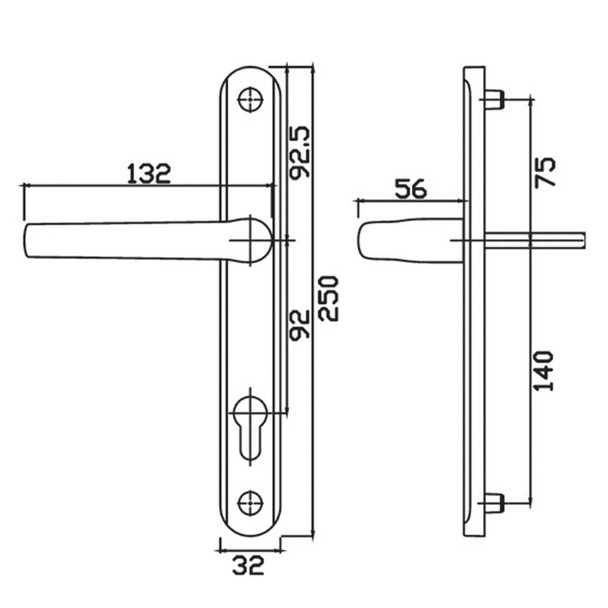

Important please check the critical measurements before ordering. Please see the diagram in the gallery.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or un-sprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An un-sprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.
