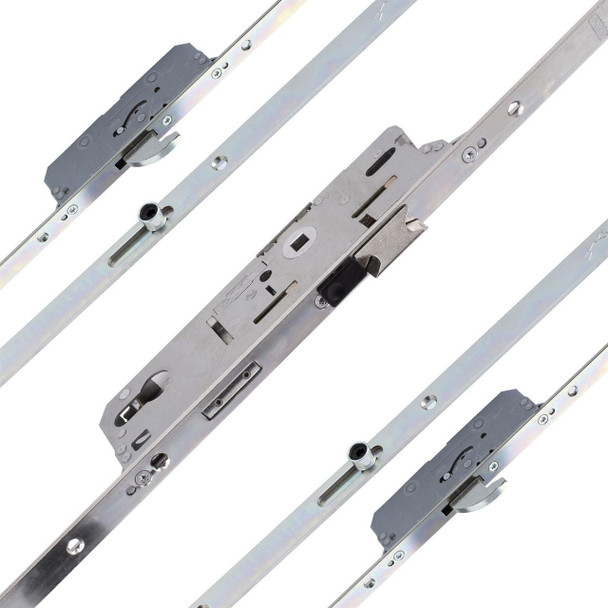

Fuhr 859 Type 3 Multipoint Door Lock 2 Hook 2 Roller Type 3 92PZ

Multipoint Door Lock Fuhr 859 2 Roller Cam 2 Hook Type 3 UPVC 35mm Backset 92PZ

Fuhr 859 - elevate your home's security and functionality; a robust one-piece lever operated locking system expertly engineered to safeguard your space. This dynamic lock features a quintet of locking points – two roller cams, two sturdy hook points, and a formidable deadbolt with a generous 20mm throw, ensuring unwavering protection.

Choose Your Style with Versatile Spindle Options: The Fuhr 859 lock offers flexibility to match your preference and existing door setup. Opt for a Split Spindle follower to accommodate split spindle operation (lever/Pad) for heightened security, necessitating a key for external access. Alternatively, select a solid spindle for seamless lever/lever operation. Delve into Functions 1 and 2 for a tailored experience. By integrating a Split Spindle set (available separately), the Fuhr 859 series door lock can be paired with a lever/pad door handle. This combination requires a key for external opening, adding an extra layer of security to your home.

Experience the ease of operation with FUHR's patented dual action mechanism technology. This innovative mechanism reduces component stress by 50%, ensuring a smooth, light touch every time. Built for endurance, the one-piece lock is designed to operate flawlessly for at least 200,000 cycles, testament to its exceptional durability and reliability.

Features:

• Suitable for lever-lever handle operations (or with the addition of a split spindle set available separately) lever pad operations
• Reversible centre latch to suit all applications (Latch can be changed from the faceplate without removing unit from the profile)
• BBA assessed
• MLA approved
• "FUHR Silver" protective finish
• N.B. Screw fixings are NOT supplied

What's in the pack?

1 x Multipoint Door Lock Fuhr 859 2 Roller Cam 2 Hook Type 3 UPVC 35mm Backset 92PZ

Dimensions:

• Lock length: 2170mm

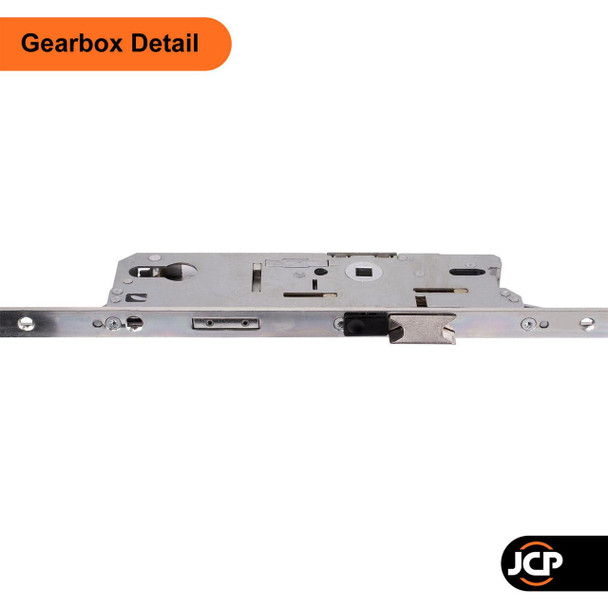

• Lock case Length: 200mm
• Distance between roller cams: 699.5mm
• Deadbolt throw: 20mm
• Faceplate width: 16mm
• PZ: 92mm
• Backset: 35mm

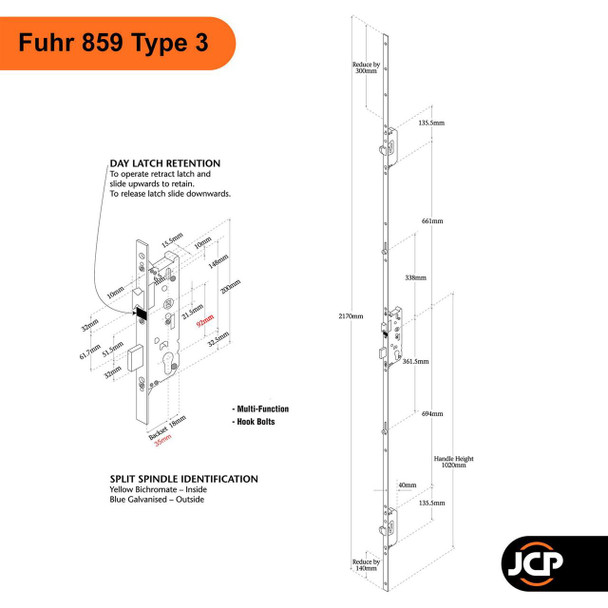

Please see technical diagram in gallery.

What should I check before ordering a new multipoint door lock?

The most important measurements are the backset and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.

Please see technical diagram in gallery.

Operation:

Function 1 Solid Spindle:

Locking inside/outside: Lift lever engages roller cams and hook bolts into plates, single turn of key throws deadbolt and locks the mechanism, lever returns to horizontal position.

Unlocking inside/outside: Single turn of key retracts deadbolt, depress lever disengages roller cams,hook bolts and retracts latch, lever returns to horizontal position.

Function 2 - Split Spindle:

Locking inside: Lift lever engages roller cams and hook bolts into plates, single turn of key throws deadbolt and locks the mechanism, lever returns to horizontal position.

Locking outside: When closed the door is retained on day latch which is released by key only. Lift lever/pad engages roller cams and hook bolts into plates, single turn of key throws deadbolt and locks the mechanism, lever/pad returns to horizontal position.

Unlocking inside: Single turn of key retracts deadbolt, depress lever disengages roller cams, hook bolts and retracts latch, lever returns to horizontal position.

Unlocking outside: Single turn of key retracts deadbolt, depress lever/pad disengages roller cams and hook bolts, lever/pad returns to horizontal position. Further quarter turn of key retracts day latch.
