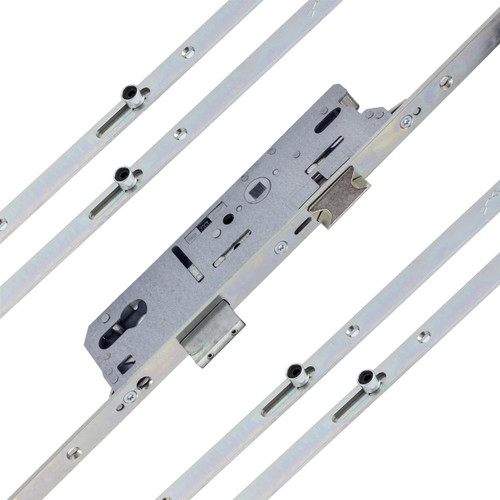

Fuhr 856 Type 1 Multipoint Door Lock 4 Roller 92PZ

Fuhr 856 Type 1 Multipoint Door Lock 4 Roller 92PZ

FUHR 856 4 roller multisafe multipoint door locks are renowned for their ease of use, reliability and durability. The lock features Lever/Lever handle operation – when the door is unlocked with the key, depress the lever to disengage all locking points. On closing, lift the handle to engage the 4 roller cam locking points then turn the key to throw the deadbolt and deadlock all locking points. The centre latch is fully reversible to suit left or right handed applications.

Features:

• Suitable for lever-lever handle operations
• Reversible centre latch to suit left or right handed applications
• BBA assessed
• FUHR silver corrosion resistant surface finish

What's in the pack?

1 x Fuhr 856 Type 1 Multipoint Door Lock 4 Roller 92PZ

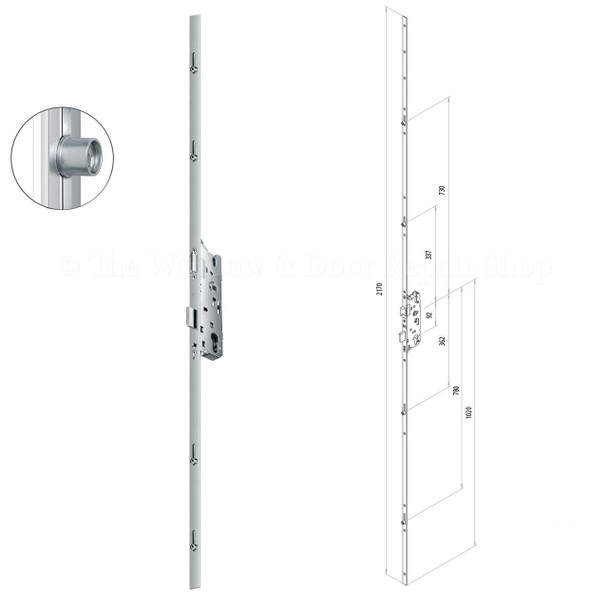

Dimensions:

• Lock length: 2170mm
• Lock case Length: 200mm
• Deadbolt throw: Deadbolt: 20mm* (*14mm on 30mm backset option )
• Spindle size: 8mm
• Faceplate width: 16mm
• PZ centre: 92mm
• Clearance required behind backset: 18mm

What should I check before ordering a new multipoint door lock?

The most important measurements are the backset (the distance from the faceplate to centre of handle spindle) and the lock handle PZ centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.
