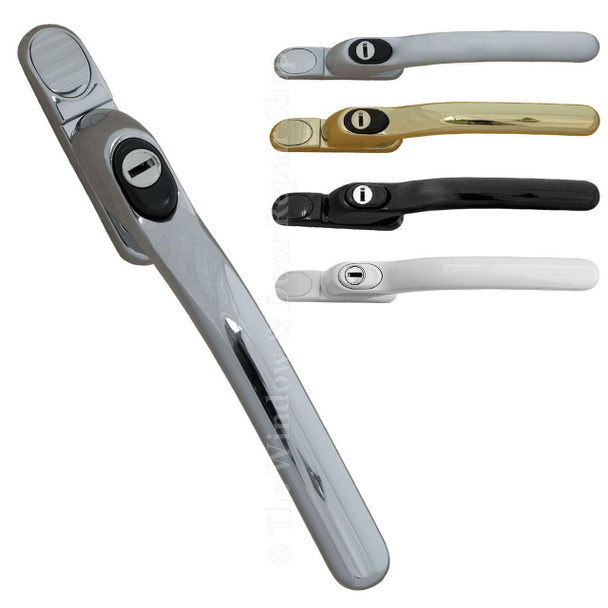

Fab & Fix Connoisseur uPVC Window Handle Universal Inline Espag Handle

Fab & Fix Inline Espag Window Handle Connoisseur

Our high quality inline espag handle comes complete with fixing screw, cover caps and a key. These inline Espag handles are non handed meaning they can be fitted either way round to replace a right or left hand handle. The handle will automatically lock on closing and the simple push to release button has been designed for ease of opening and safety. Every handle comes complete with a key to deadlock your handle for enhanced security.

These Espag handles are manufactured to industry standard measurements of 43mm centre to centre (the distance between screw centres), so you can rest assured in the knowledge that this handle will fit almost all espags and shootbolts systems currently available.

All handles are supplied with a with 40mm spindle which can easily be cut down to fit any size.

Features:

• These handles are non handed and will fit left or right hand handles.
• Comes complete with 1 key, cover caps and 2 screws
• Ergonomic design for comfort
• Modern good looks
• Positive click stop on closing
• Push to unlatch mechanism
• Key dead locking for added security

What's in the pack?

1 x Inline espag handle

2 x Screws

2 x Screw coverplates (Front and rear)

1 x Deadlock Key

Dimensions:

• Screw Hole Centres: 43mm
• Spindle Length: 40mm (this can easily be cut down to size)
• Spindle Width: 7mm Square

What do I need to check before ordering a handle?

Handle Screw Hole Fixing Centres:

Fortunately most espag handles are made to industry standards with 43mm screw hole centres, therefore it really does not matter if you choose a style that's different to your existing handle, as long as the handle centres measure 43mm these handles will fit.

Handing:

These handles are of the inline type, therefore they will replace both left and right hand handles.

Spindle Length:

The spindle is available in a 40mm length. The spindle is measures from the base of the handle to the end of the spindle. The spindle can be cut down to suit small spindle lengths. (Please see measuring guide.)

Spindle width:

Although almost all espag spindle widths measure 7mm square, its worth checking before ordering as some unusual 8mm variations have been known, although these are mostly on timber windows.
