Exitex Macclex MXS 15/2 Replacement Aluminium Door Cill Threshold 914mm

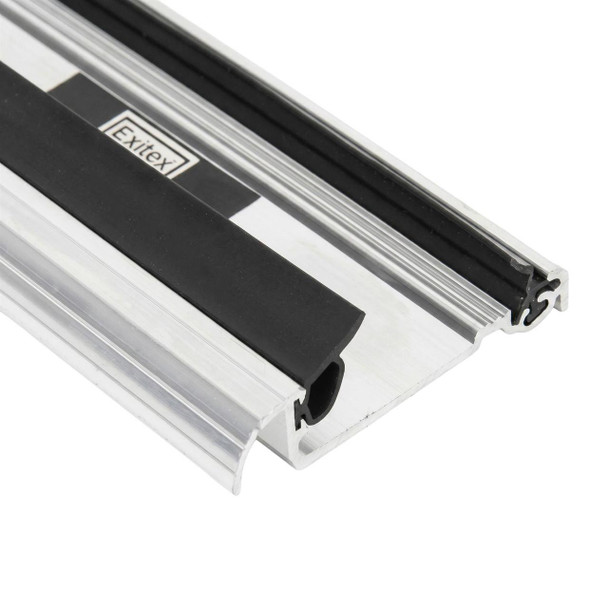

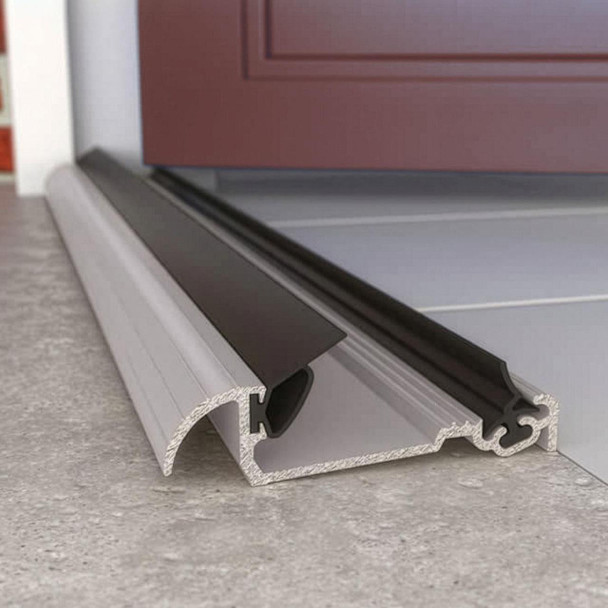

Exitex Macclex MXS 15/2 Aluminium Door Threshold 914mm — Inward Opening Draught Excluder Cill

Low-profile aluminium threshold cill for inward opening doors — 13mm under-door clearance, fits doors up to 44mm thick, Part M wheelchair accessible.

Exitex Macclex MXS 15/2 Aluminium Door Threshold is the reliable replacement cill for tired, leaking or worn-out thresholds on inward opening doors. If you're feeling a cold draught under the door, seeing rainwater track inside, or noticing the seal has perished and split, this 914mm aluminium threshold solves it in one straightforward fit. The low 15mm profile keeps the doorway wheelchair accessible while the twin rubber gaskets compress against the door bottom to block out draughts, rain and dust.

Manufactured by Exitex, a long-established UK name in weatherproofing, the Macclex 15/2 is built from hard-wearing aluminium designed to handle exposed locations without corroding or warping. The Part M compliant design makes it suitable for residential and commercial properties alike. Supplied at 914mm (36"), it trims down on site to suit narrower openings.

Key Benefits for Inward Opening Door Owners:

• Stops Draughts, Rain & Dust at the Threshold – Twin rubber gaskets compress against the door bottom to form a continuous weather seal, cutting the cold draughts that drive up heating bills and keeping driven rain and dust out of the hallway.
• 13mm Under-Door Clearance — Check Before Fitting – Designed to work with a 13mm gap between the underside of your door and the floor. If your clearance is less, the door bottom can be planed down to suit; if it's more, an alternative threshold height will be needed.
• Low 15mm Profile for Wheelchair Access – Part M compliant height keeps the threshold low enough to roll over comfortably, making it suitable for accessible homes, holiday lets, and commercial entrances that need to meet building regulations.
• Hard-Wearing Aluminium Bar – Robust aluminium construction resists corrosion in exposed locations and won't rot, split or warp like older timber cills. A long-term replacement that won't need doing again in a couple of years.
• Fits Doors up to 44mm Thick – Suits the vast majority of UK external residential doors, including most composite and timber doors. Always measure your door thickness before ordering to confirm fit.
• Trim to Size on Site – Supplied at 914mm (36") and easily cut down with a hacksaw to suit narrower door frames. One size handles most standard UK openings.
• Fixings & Instructions Included – Aluminium bar, 4 screws, 4 wall plugs and full fitting instructions in the box. Everything a competent DIYer needs to complete the job in an afternoon.

Product Specifications:

• Brand: Exitex
• Model: Macclex 15/2 MXS
• Type: Aluminium Door Threshold Cill / Draught Excluder
• Application: Inward opening doors only
• Length: 914mm (36") — trim to size
• Overall Height: 15mm
• Internal Height: 9.5mm
• Width: 62mm
• Max Door Thickness: 44mm
• Max Gap (Floor to Sash Bottom): 13mm
• Finishs: Mill Aluminium,Gold or Black
• Building Regs: Part M compliant — wheelchair accessible
• Exposure Rating: Suitable for moderate to exposed locations

Please measure your existing threshold and under-door clearance carefully before ordering. The Macclex MXS 5/2 is designed for inward opening doors only — it is not suitable for outward opening doors. If you're unsure which threshold is right for your door, contact us and we'll be happy to help.

Pro Tips:

Pro Tip: When you cut the aluminium to length, cut the rubber seals 10mm longer than the aluminium bar before reinserting them. This small allowance lets the rubber compress fully into the corners of the frame and prevents the tiny gap at each end that's a common cause of persistent corner draughts after fitting. Always cut the aluminium at the opposite end to the replacement seal hole.

Package Contents:

• 1 × Exitex Macclex MXS 15/2 Aluminium Threshold Bar (914mm)
• 2 × Pre-fitted Rubber Weather Seals
• 4 × Fixing Screws
• 4 × Wall Plugs
• 1 × Installation Instructions

How to Fit the Macclex MXS 15/2 Threshold:

1. Prepare the seals: Remove the rubber seals from the aluminium sill section before cutting.
2. Measure & cut the bar: Measure the width between the inside faces of the doorframe rebate and cut the aluminium to size, cutting at the opposite end to the replacement seal hole.
3. Cut & refit the seals: Cut the rubber seals 10mm longer than the aluminium bar and reinsert them into the grooves in the sill.
4. Notch the ends: Notch both ends of the sill so it sits cleanly into the doorframe rebate. When the door is closed, the front seal should be compressed by approximately 3mm — notch the sill to allow for this.
5. Check door clearance: This sill requires 13mm under-door clearance. If necessary, remove the door and trim the bottom edge to suit, ensuring the underside is smooth so it doesn't damage the rubber seals.
6. Mark & drill: Position the assembled sill between the doorframe and mark the fixing points through the countersunk holes. Remove the sill, drill the fixing holes and insert the wall plugs.
7. Seal & secure: Apply a bead of sealing compound to the underside of the sill where it contacts the doorframe. Screw the sill into place.

Frequently Asked Questions:

Will the Macclex MXS 15/2 fit my door?
The Macclex 15/2 is designed for inward opening doors only and requires 13mm of clearance between the underside of the door and the floor. It fits doors up to 44mm thick. Before ordering, measure both your under-door clearance and your door thickness — if either is outside these figures, a different threshold may be needed.

Can I use this on an outward opening door?
No. The Macclex MXS 15/2 is engineered specifically for inward opening doors — the seal geometry will not work correctly on an outward opening configuration. For outward opening doors, an alternative threshold from the Exitex range is required.

How do I cut it down to fit a narrower doorway?
The aluminium bar trims easily with a hacksaw. Cut the bar at the opposite end to the replacement seal hole, then cut the rubber seals 10mm longer than the aluminium so they compress fully into the frame corners. Full fitting instructions are included in the pack.

Is it suitable for wheelchair access?
Yes. At just 15mm overall height, the Macclex 15/2 is Part M compliant and suitable for wheelchair accessible thresholds in both residential and commercial properties.

Why Choose the Exitex Macclex MXS 15/2 Aluminium Door Threshold?

Exitex has been a trusted name in UK weatherproofing for decades, and the Macclex MXS 15/2 reflects that experience in a threshold designed to do one job exceptionally well: keep the weather out without compromising on accessibility. The combination of a low 15mm profile, twin rubber gaskets and hard-wearing aluminium construction means you get reliable draught and water protection in a threshold that will outlast cheaper alternatives.

Whether you're replacing a tired old cill on your own front door or specifying a Part M compliant threshold for a commercial entrance, the Macclex MXS15/2 is a straightforward, dependable choice. Supplied with everything needed to fit, and backed by JCP Hardware's 30+ years supplying UK door and window hardware — order with confidence.
