ERA Internal Door Handle Pair Lever on Rose

Internal Door Handle Set Sprung Lever Pair on Rose Hidden Fixings

The ERA Lever on Linear Rose handles are modern, ergonomically sound handles, designed for internal timber doors of 34-44mm thickness. Robust and durable, the these lever handles have a low maintenance finish but high resilience, having been tested in accordance with BS EN 1906:2012, Grade 2 (48 hours) corrosion resistance, and to ensure smooth and consistent performance, the handles are tested to excess of 100,000 cycles.

The modern 50mm diameter screw-on rose means that all fixings are concealed, giving a clean and aesthetically-pleasing finish. Secure bolt-through fixings mean there is no cutting required, resulting in a quick and easy installation. All required fixings are supplied and the non-handed handles are supplied as a pair.

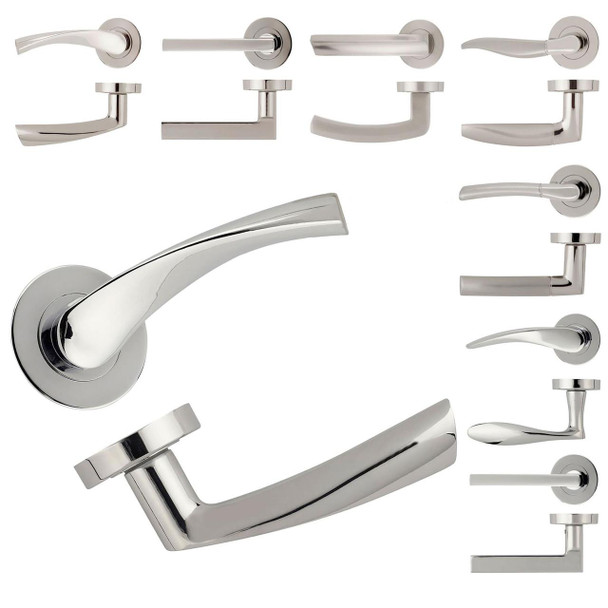

From ERA’s first ever range of internal door handles, the full range has six handle designs and several finishes, giving you all the options you need to choose a handle that perfectly complements any existing home décor.

Features:

• Lever on rose
• Supplied as a pair complete with spindle, screws, bolts, allen key & grub screw
• Universal handing, levers are fully reversible by design
• Sprung version as standard
• Handle material: Zinc & Aluminium
• Suitable for internal timber doors
• Secure bolt through fixings or optional wood screws
• Concealed fixings for a clean modern finish

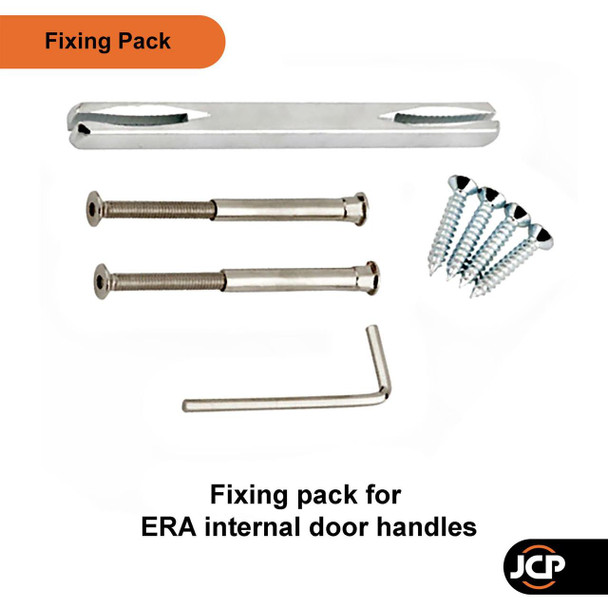

What's in the pack?

1 x Set of ERA Internal Door Handle Set

1 x Spindle

2 x Bolt Through Fixings; 4 x Wood Screws

1 x Grub Screw; 1 x Allen Key

Dimensions: Lever on Rose Handles

• Rose diameter: 50mm
• Rose depth: 11mm
• Lever length: 118 - 128mm
• Protrusion of lever handle from rose: 47 - 55mm
• For doors from 34 - 44mm thick
• Spindle Size: 8mm

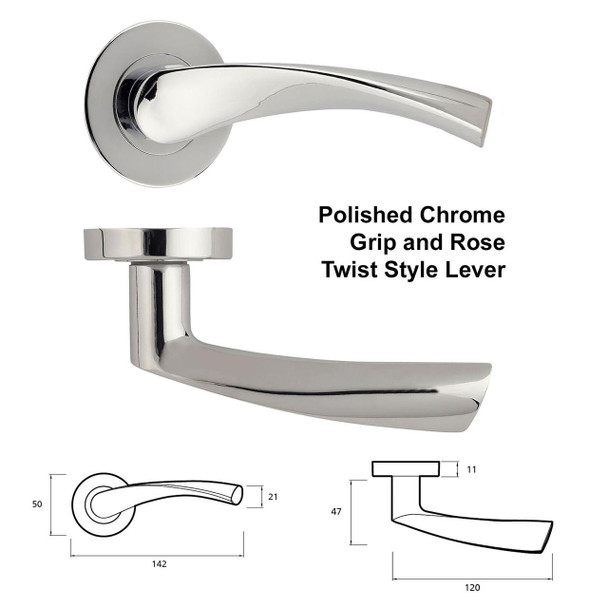

Please refer to individual diagrams for further detail - all measurements are approximate.

Important, please check the critical measurements in the diagrams in the gallery before ordering.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position.
