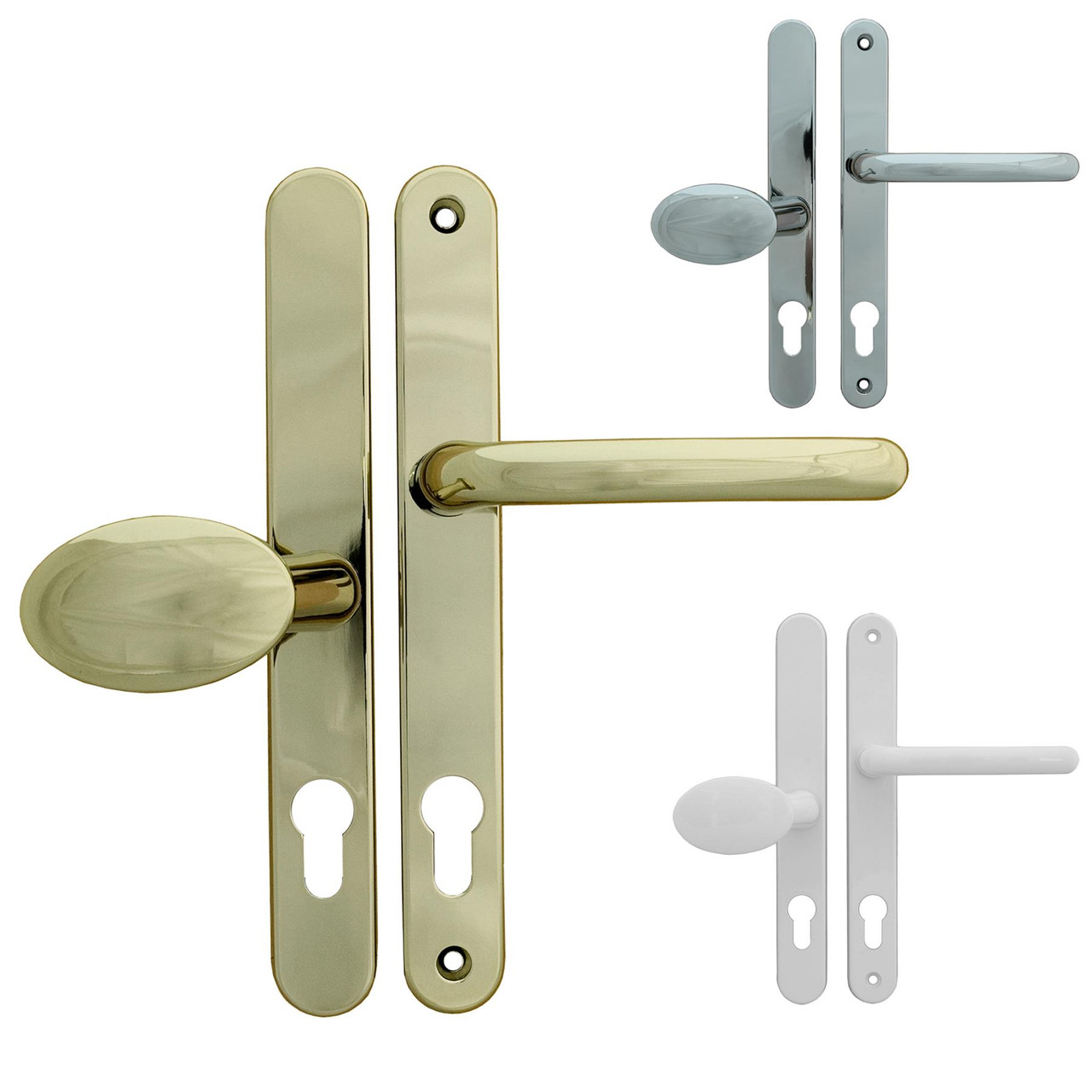

Balmoral UPVC Door Handle Pair 92mm 62mm PZ 211mm Fixings Lever Pad

Balmoral UPVC Door Handle Pair 92mm 62mm PZ 211mm Fixings Lever Pad

The BALMORAL lever/pad door handle set comes with a high quality finish that is made to endure giving you years of use.The sprung levers are fixed to the backplate and by design the handles are fully reversible. Fixing lugs are supplied on both backplates for a secure fit. Supplied with fixing screws, fitted return springs and spindle to suit door thickness up to 72mm.

We recommend updating your existing cylinder locks at the same time as replacing your handle to ensure maximum security. We supply a range of locks to suit all budgets including Anti Snap, Anti Bump, Keyed Alike & Thumb Turns. To purchase a cylinder, please refer to our shop.

Features:

• Supplied as a pair complete with spindle and screws
• Universal handing, levers are fully reversible by design
• Sprung version as standard
• Tested to over 200,000 cycles

What's in the pack?

1 x Set of Balmoral 92PZ Lever Pad Handles

2 x Spindle

2 x MS x 70mm Screws

2 x MS x 80mm Screws

What measurements should I check before ordering a handle set?

The most important measurements are the distance between screw holes centre to centre and the distance from the centre of the handle spindle to the centre of the barrel . The length and width of the handle are less critical as a slightly shorter or longer handle should make no difference.

What does sprung mean?

Sprung means a spring is fitted to the door handle to return the handle to position. The easiest way to determine if you need a sprung or unsprung handle is to first remove your handle, then operate the lever to see if there is a return spring fitted to the handle. An unsprung handle can be replaced with a sprung handle, however if your existing handles are sprung they must be replaced with the same.

Dimensions:

• PZ Centres: 92mm
• PZ Centres (Pad): 62mm
• Backplate width: 32mm
• Backplate length: 243mm
• Distance between screw hole centres: 211mm
• For doors from 58mm -72mm thick
• Spindle Size: 8mm
• Internal Lever Length: 120mm
• External Pad length 74mm
