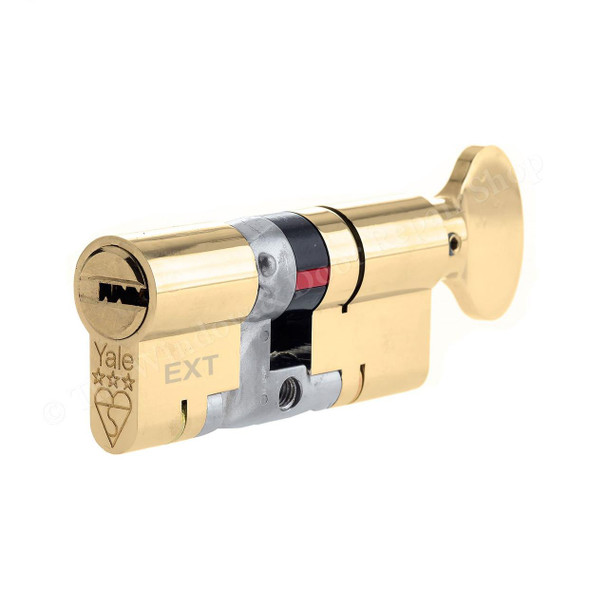

YALE Platinum 3 Star Thumb Turn Anti Snap Euro Cylinder Door Lock TS007

The Yale Platinum Thumbturn 3 Star euro cylinder is designed to provide the maximum security available for the ULTIMATE door security upgrade. With its sacrificial front section, hardened grip detectors and interlocking cam the Yale Platinum is one of the most secure euro cylinders locks available earning a TS007:2014 3 star certification. These features ensure Anti-Snap, Anti-Bump, Anti-Pick, Anti-Screw and Anti-Drill protection.

Visually, the Platinum 3 Star Cylinder deters intruders with its clearly identified 3 Star Kitemark logo on the face of the cylinder. It has a flat, horizontal key way with reversible key.

The dimple cut key code can be easily identified on the supplied ID tag.

This high security cylinder is a thumbturn. This means you can unlock the door from the inside without the key.

*The Yale Platinum Cylinder is undergoing a gradual design update, enhancing its High Security features. As these updates are progressively introduced into our stock, you may receive a Platinum Cylinder with a sleek, bump-free design, reflecting our commitment to offering a more efficient and streamlined locking mechanism.

Specification

• TS007 2014 3 star approved
• Tested to the British standard BS EN1303:2005 16000C52
• Kitemark approved – KM559658
• 3 star standard with no additional security furniture required
• Secured By Design
• Anti-Snap, sacrificial front section
• Anti-Pick, Anti-Bump, Anti-Screw, Anti-Pull and Anti-Drill
• Euro retrofit cylinder
• Supplied with three Yale branded, dimple cut keys as standard
• Thumbturn, can open a door from the inside without a key.
• Superior strength with cylinder stability system for superior protection
• Horizontal keyway
• Flat reversible dimple key with new stylish nylon key bow
• Key card for easy code identification and key duplication

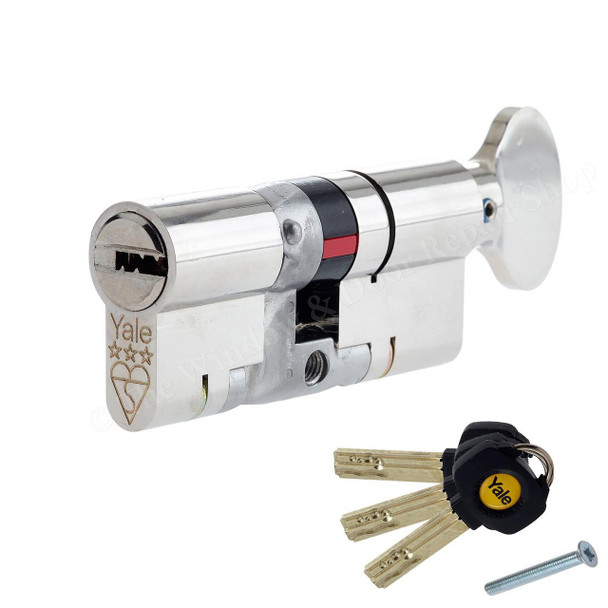

What's in the Pack?

1 x Yale Platinum Thumbturn 3 Star Euro Profile Cylinder

3 x Keys

1 x Keycard

1 x Fixing Screws

How do I measure a Yale Platinum door cylinder?

Please remember that one side of an Yale Platinum lock is dedicated external and the other internal, so great care must be taken to ensure you note which measurement is which. Yale Platinum locks are clearly marked 'EXT' on the external side for easy fitting.

The easiest way to measure your old euro cylinder lock is to remove it from your door, taking note which end is external.

Measurement A (Internal): Measure from the internal side to the centre of the screw hole. A = 40mm

Measurement B (External): Measure from the external side to the centre of the screw hole. B = 50mm

The cylinder size you would need to order in this example case is 40mm Int 50mm Ext

How to fit a Yale Platinum Thumbturn Door cylinder

1) Remove the handles from the door.

2) Then, remove the thumbturn knob from the cylinder using a HEX allen key.

3) Insert a key into the external side of the lock and turn the key until the cam lines line up with the cylinder body.

4) Push the cylinder from the external part of the door making sure that the Internal and External stamps are on the correct sides of the door

5) Make sure the door and cylinder fixing holes line up and then secure the cylinder with the fixing screw provided being careful not to overtighten

6) Refit the door handles and then fit the thumbturn knob to the cylinder

PLEASE NOTE: We do not include a Hex allen key
