Trojan 3D Composite Door Hinge Spanner Adjustment Tool

Trojan 3D Composite Door Hinge Spanner Adjustment Tool - 3D Adjustment Tool for Perfect Door Alignment

Achieve Professional-Grade Door Alignment with the Essential Tool for Trojan 3D Hinges

Trojan Composite Hinge Spanner is the specialist adjustment tool engineered exclusively for Trojan 3D composite door hinges. This precision-crafted spanner delivers complete three-axis adjustment capability, enabling you to achieve optimal door performance, perfect alignment, and superior weather seal compression. Whether you're a professional installer or a capable DIY enthusiast, this tool provides the exact control needed to fine-tune modern composite door systems to perfection.

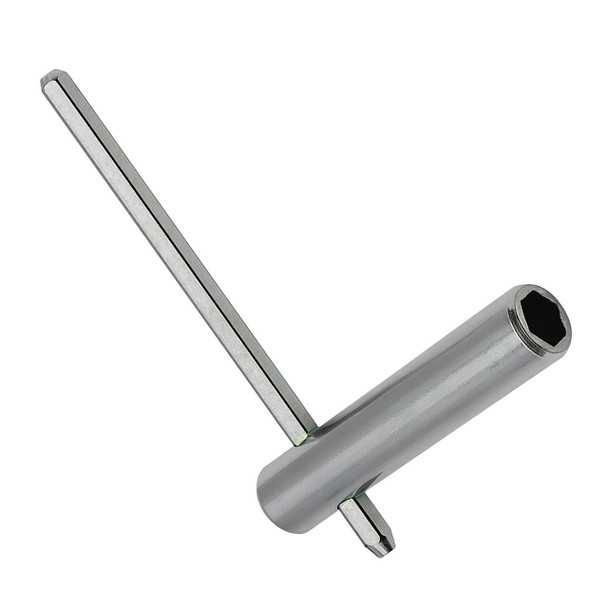

Constructed from durable metal with a professional silver finish, this ingeniously designed T-bar configuration combines a 6mm hexagon socket and 4mm allen key in one integrated tool. This dual-function design ensures you have everything needed to access all adjustment points on Trojan 3D hinges without switching between multiple tools, making door alignment faster, easier, and more precise.

Key Benefits:

• Complete 3-Axis Adjustment Control – Provides precise vertical adjustment (±4mm), lateral positioning (±3mm), and compression tuning (±1.75mm), giving you total command over door alignment and seal performance for optimal weatherproofing and smooth operation.
• Essential Professional Tool – This isn't just recommended—it's required equipment when fitting Trojan 3D composite hinges. Without this specialized spanner, you simply cannot access the adjustment mechanisms properly, making it an absolute must-have for any Trojan hinge installation or maintenance work.
• Dual-Function Integrated Design – Eliminates tool-switching frustration with its clever T-bar configuration that combines both the 6mm hexagon socket for height and lateral adjustments, and the 4mm allen key for compression adjustment, all in one compact, ergonomic tool.
• Precision Weather Seal Optimization – The integrated allen key enables expert adjustment of gasket compression, allowing you to fine-tune the door's pressure against weather seals to eliminate draughts, reduce energy loss, and maintain optimal thermal efficiency throughout the seasons.
• Professional Results for DIY Projects – Brings professional-grade adjustment capability to homeowners tackling their own door maintenance. The ergonomic design provides excellent leverage and control, making even complex three-dimensional adjustments straightforward and achievable.
• Corrects Common Door Problems – Solves frustrating issues like door drop, misalignment, sticking, or poor seal contact without the need for expensive call-outs. Simply adjust your hinges to restore perfect door operation and extend the life of your composite door system.
• Compact and Toolkit-Ready – Lightweight at approximately 100g and compact in size, this spanner stores easily in any toolkit. Its robust metal construction ensures it will serve you reliably across countless installations and adjustments over many years.
• Wide Compatibility Range – Specifically designed for Trojan 3D Composite Door Hinges and Trojan 3D Butt Hinges.

Product Specifications:

• Brand: Trojan
• Tool Type: 3D Hinge Adjustment Spanner
• Design Configuration: T-bar with shaped spanner head
• Hexagon Socket Size: 6mm (for lateral and height adjustments)
• Allen Key Size: 4mm (integrated in T-bar for compression adjustment)
• Material: Durable metal construction
• Finish: Silver/metal
• Compatible Hinge Models: Trojan 3D Composite Door Hinges, Trojan 3D Butt Hinges (Model 0705)

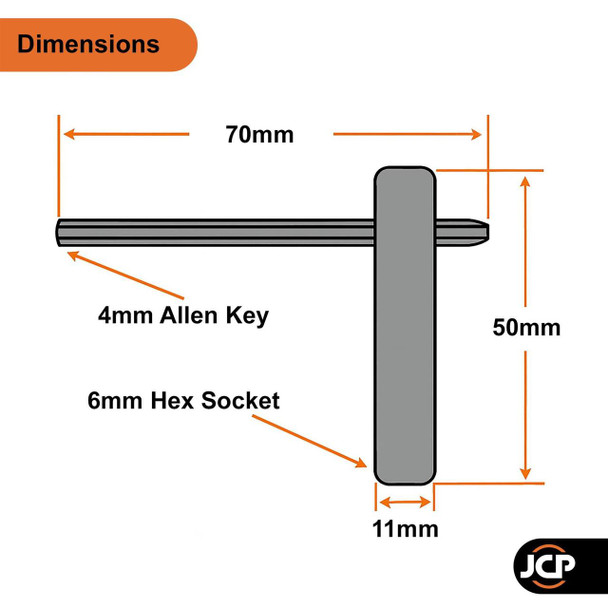

Dimensions:

• Lever width: 70mm
• Height: 50mm
• Hexagon Socket: 6mm
• Allen key: 4mm

Pro Tips:

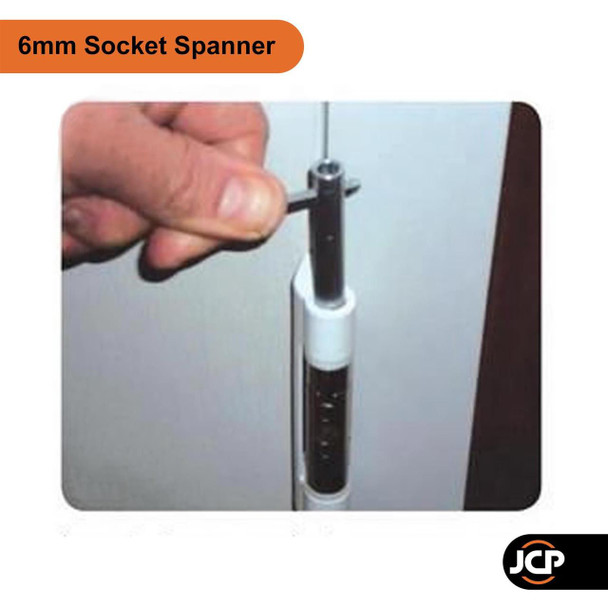

Pro Tip: When adjusting Trojan 3D hinges, always make vertical adjustments simultaneously across all hinges to ensure even load distribution. Use the 6mm hexagon socket to raise or lower each hinge by the same amount, then perform lateral adjustments in a single operation to maintain perfect alignment on the pivot axis. Finally, fine-tune compression with the 4mm allen key to optimise weather seal contact. This systematic approach ensures optimal door performance and prevents uneven stress on the hinge system.

What's in the Pack:

• 1 × Trojan 3D Composite Hinge Adjustment Tool (6mm hexagon socket + 4mm allen key T-bar design)

Frequently Asked Questions:

Will this tool work with my Trojan composite door hinges?

Yes, this spanner is specifically engineered for Trojan 3D Composite Door Hinges and Trojan 3D Butt Hinges (Model 0705).

Can I adjust my door without this specialized tool?

No—this adjustment tool is an essential requirement when fitting or maintaining Trojan 3D composite hinges. Standard tools cannot properly access the adjustment mechanisms on these advanced three-dimensional hinge systems. The unique T-bar configuration with integrated 6mm hexagon socket and 4mm allen key is specifically designed to reach and operate the height, lateral, and compression adjustment points. Attempting adjustments without the proper tool may damage your hinges or prevent you from achieving the precise alignment that modern composite doors require for optimal performance.

What problems can I fix with this adjustment tool?

This spanner enables you to resolve numerous common composite door issues including door drop (where the door sags over time), misalignment causing sticking or rubbing, poor seal contact leading to draughts, uneven gaps around the door frame, and difficulty in opening or closing. The three-axis adjustment capability allows you to raise or lower the door (±4mm vertically), move it in or out from the frame (±3mm laterally), and adjust how firmly it presses against weather seals (±1.75mm compression). These adjustments restore smooth operation, eliminate draughts, improve security, and extend the life of your door system.

Is this tool suitable for DIY use or only for professional installers?

Whilst this is professional-grade equipment used by door fitters daily, it's equally suitable for capable DIY enthusiasts who want to maintain their own doors. The ergonomic T-bar design provides excellent leverage and control, making adjustments straightforward even for those without professional experience. Many homeowners successfully use this tool for routine maintenance, seasonal adjustments, and correcting minor alignment issues, saving the cost of call-out fees.

Why Choose the Trojan Composite Hinge Spanner?

Modern composite doors represent a significant investment in your home's security, energy efficiency, and kerb appeal. The Trojan 3D hinge system is engineered to exacting standard, tested to 100,000 cycles and meeting EN 1191 and BS EN 1670 specifications, but this sophisticated technology requires the correct tool for proper adjustment. This specialised spanner is your key to maintaining that investment, ensuring your door continues to operate smoothly, seal effectively, and look perfect for years to come. Whether you're a professional installer requiring reliable equipment for daily use, or a homeowner who takes pride in maintaining your property to the highest standards, this essential tool delivers the precision control you need. Don't compromise on quality when it comes to door alignment, choose the tool designed specifically for the job and experience the difference that proper adjustment makes to your composite door's performance.
