GU
Gu Ferco Multipoint Door Lock 4 Roller 28mm Backset 92PZ
No yet Review(s) Write a Review
Write a Review
×
GU
Gu Ferco Multipoint Door Lock 4 Roller 28mm Backset 92PZ
- SKU:
- E48
- UPC:
- E483GUL4500
- Centres/PZ:
- 92mm
- Lock Type:
- Roller
- Operation:
- Lever/Lever
- Faceplate:
- 16mm
- Spindle:
- Single

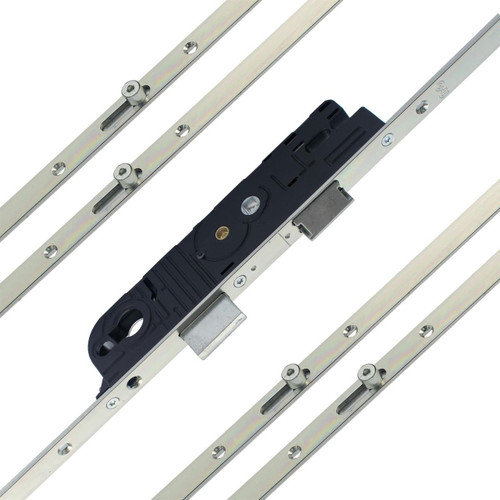

Gu Ferco Multipoint Door Lock 4 Roller 28mm Backset 92PZ
The Gu Ferco Europa 4 roller cam door lock has been fitted to thousands of PVC-u doors over the past decade, many of which are now beginning to show their age. Fortunately it can easily be replaced, the skill level needed to accomplish this is well within the grasp of the average DIY person. It can be trimmed to size and features a fully reversible latch.
This is the full mechanism and can be used to replace any existing G.U door lock with a 28mm backset.
Features:
- 4 Rollers
- Latch and Deadbolt
- Reversible Latch
- Lever - lever operation
- Can be trimmed to size
What's in the pack?
1 x Gu Ferco Multipoint Door Lock 4 Roller 28mm Backset 92PZ

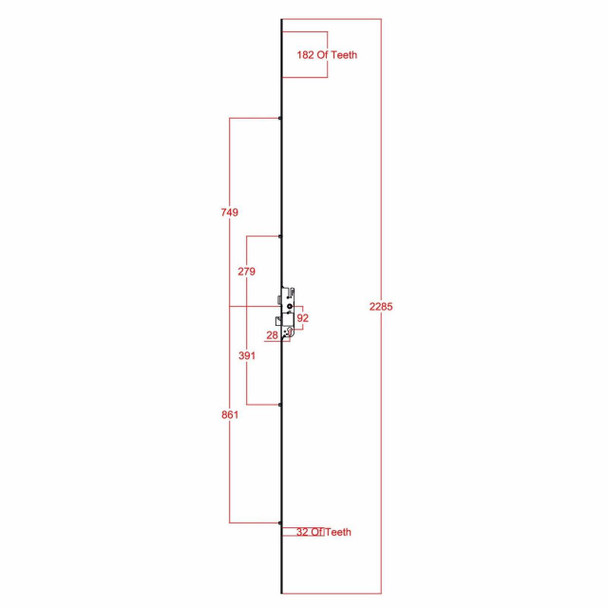

Dimensions:
- Overall Length: 2285mm
- Centre of gearbox to top roller: 749mm
- Centre of gearbox to bottom roller: 861mm
- PZ: 92mm
- Backset: 28mm
- Faceplate Width: 16mm
What should I check before ordering a new door lock?
The most important measurements are the back-set and the lock handle centres (the distance from the centre of the handle spindle to the centre of the barrel). Both measurements should be checked before ordering to ensure compatibility.
We aim to deliver your products as quickly as possible. Orders taken before 2:00pm will normally be dispatched the same day. Orders taken after 2:00pm on a Friday will be dispatched the following Monday. For Premium Tracked 24 Delivery Services, please order before 12:00pm for same day dispatch. Depending on the delivery service selected on checkout, we either use a next-day courier service, Royal Mail Tracked 48 or Royal Mail Tracked 24 postage service.
Free Shipping
Free shipping is available for all order over £10.00, delivery time estimates for free delivery is 3-5 working days.
No Quibble Money Back Returns Policy
Shop with absolute confidence knowing that if you are not satisfied for any reason we will refund the full purchase price providing you return the item within 30 days and in the same condition as when dispatched. Except for those cases where an item proves to be faulty, damaged on delivery or incorrectly described, return delivery charges and postage expenses are not refunded.
How do I return Items?
If you need to return an item please log into your account and click on the orders tab. Locate the order you wish to return and on the right click on 'Return Items?' You will then be taken to the returns tab; on the right hand side enter the quantity you wish to return; then on the left below the item, select the return reason and then the return action (whether you would like a replacement or a refund). If a replacement is not available, we will issue you a refund. There is a comments box to the right if you need to enter any more details.
Once you are happy that all the details have been correctly entered then click on the 'Submit Return Request' button. You will then be sent a return request email from JCP Hardware with instructions.
If you have placed an order as a guest and you wish to return it, then please email.
Related Products
GU
GU Ferco 5.28 Multipoint Door Lock 4 Roller 28mm Backset 70PZ
GU Ferco 5.28 Multipoint Door Lock 4 Roller 28mm Backset 70PZ The Ferco 528 door lock has been fitted to thousands of PVC-u doors over the past decade, many of which are now beginning to show their...
GU
Gu Ferco Europa R4 Multipoint Door Lock 4 Roller Cams 35mm Backset 92PZ
Ferco Europa 4 Roller Multipoint Door Lock 35mm Backset 92PZ The perfect replacement lock for newer style 4 roller cam doors. The Ferco Europa door lock has been fitted to thousands of PVC-u doors...
GU
GU Ferco 6.35 Multipoint Door Lock 4 Roller 35mm Backset 70PZ
GU Ferco 6.35 Multipoint Door Lock 4 Roller 35mm Backset 70PZ The perfect replacement lock for older style doors. The Ferco 6.35 door lock has been fitted to thousands of PVC-u doors over the past...
Yale
Yale Paddock Lockmaster Multipoint Door Lock 4 Roller 35mm Backset 92PZ
Yale Paddock Lockmaster Multipoint Door Lock 4 Roller 35mm Backset 92PZ The Yale Lockmaster range of one piece, multi-point door locks offer exceptional choice, with a range of security options,...
GU
GU New Style Gearbox for Multipoint Door Lock 28mm Backset 92 PZ
GU Gearbox Door Lock Centre Case Replacement Mechanism 28mm Backset Lift lever These are genuine GU Lift Lever replacement gearboxes to suit new style GU door locks. If you're having problems with...
Avocet
Avocet Trivalent Multipoint Door Lock 2 Hook 2 Roller 35mm Backset 92PZ
Avocet Trivalent Multipoint Door Lock 2 Hook 2 Roller 35mm Backset 92PZ The Avocet Trivanent 2 Hook 2 Roller Multipoint Door Lock is a durable door lock that has been designed for use with...
Avocet
Avocet WMS Trivalent Multipoint Door Lock 4 Roller Cam 35mm Backset 92PZ Twin Spindle
Avocet WMS Trivalent Multipoint Door Lock 4 Roller Cam 35mm Backset 92PZ Twin Spindle The Avocet Trivalent 4 Roller Cam Door Lock is suitable for doors with lever-lever and lever-pad applications. It...
Avocet

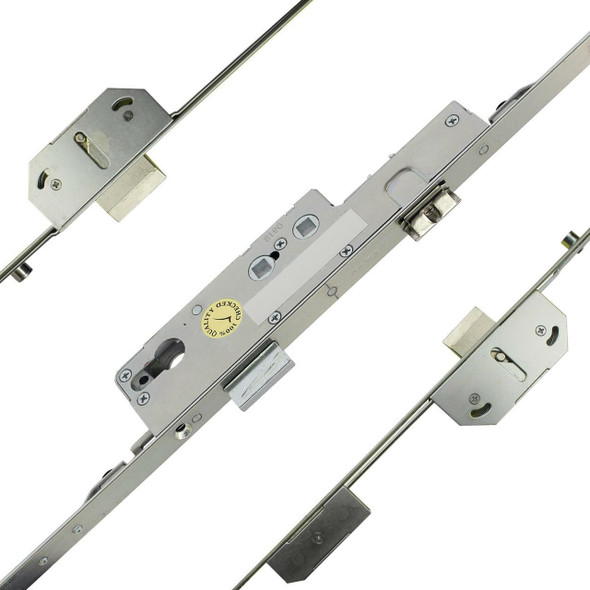

Avocet WMS Trivalent Multipoint Door Lock 4 Roller 3 Deadbolt 35mm Backset 92PZ 62PZ
