GreenteQ Tilt and Turn uPVC Window Handle Locking 40mm Spindle

GreenteQ Alpha TBT Tilt and Turn Locking Window Handle - 4-Mode Security

Security and flexibility in one with four locking modes and built-in fall-safety protection.

The GreenteQ Alpha TBT Locking Handle has a 4-mode locking system including Tilt Safe functionality for fall-safety protection. Suitable for uPVC, aluminium and timber windows with tilt and turn drive gear, this universal handle fits all major window frame materials. Part of the Alpha range, it matches casement windows and residential doors for a consistent look throughout your home.

With standard 43mm fixing centres and eurogroove compatibility, the Alpha TBT works with all leading tilt and turn hardware systems including AGB, Roto, Siegenia and Maco ranges. Available in seven finishes and Secured by Design approved and Q-secure PREMIUM qualified when used with compatible systems.

Key Features:

• 4-Mode Locking System – Unlocked for full operation, Tilt Safe for ventilation with fall-safety, fully Locked for maximum security, Turn First Locked for older window configurations.
• Tilt Safe Fall-Safety Protection – 90-degree cylinder position allows safe tilt ventilation whilst preventing the window from opening fully. Ideal for upstairs rooms, children's bedrooms and high level windows.
• Secured by Design Approved – Officially approved by the UK police initiative, meets insurance company security standards.
• Universal Eurogroove – Standard 43mm fixing centres fits all eurogroove fit tilt and turn hardware systems including AGB, Roto, Siegenia and Maco ranges.

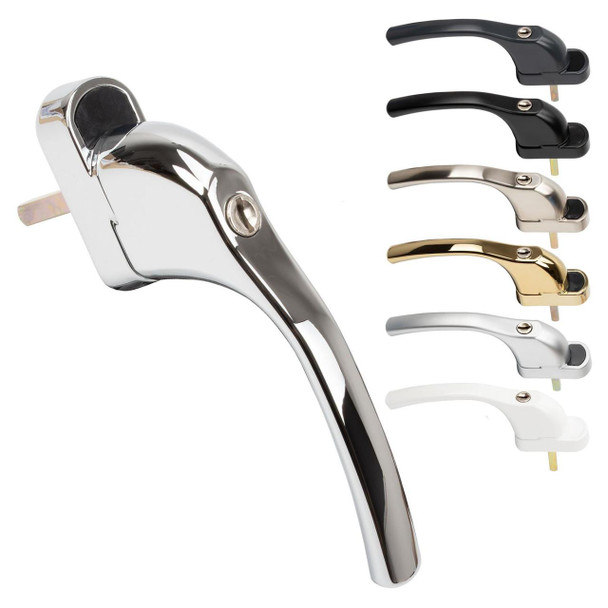

• Seven Finishes – White, Black, PVD Gold, Polished Chrome, Satin Chrome, Anthracite Grey and Brushed Steel (Enduro Steel).

Product Details:

• Brand: GreenteQ
• Product: Tilt and Turn Window Locking Handle
• Locking System: 4-Mode Cylinder Lock (Unlocked, Tilt Safe, Locked, Turn First Locked)
• Handle Type: TBT (Tilt Before Turn), Turn First, Locking
• Spindle: 7mm Square
• Spindle Length: 40mm
• Fixing Centres: 43mm (Standard Eurogroove)
• Works with: All eurogroove fit tilt and turn hardware including AGB, Roto, Siegenia and Maco (with a 40mm handle spindle)
• For: uPVC, Aluminium, Timber windows
• Secured by Design Approved
• Finishes: White (2QTT0061), Black (2QTT0066), PVD Gold (2QTT0062), Polished Chrome (2QTT0063), Satin Chrome (2QTT0065), Anthracite Grey (2QTT0067), Brushed Steel (Enduro Steel) (2QTT0069)

Dimensions:

• Handle Length: 169.79mm
• Base Width: 31.3mm
• Base Length: 64.1mm
• Screw Hole Centres: 43mm
• Spindle: 7mm square
• Spindle Length: 40mm

4-Mode Locking System Explained:

Mode 1 – Unlocked: Handle operates freely for full movement through tilt and turn positions. Ideal for window cleaning and full access.

Mode 2 – Tilt Safe (90° Cylinder Position): Tilt ventilation only, prevents full opening for fall-safety protection. Perfect for upstairs rooms and children’s bedrooms. Window can only move to turn mode after unlocking with the key.

Mode 3 – Fully Locked (180° Cylinder Position): Handle fully locked in closed position. Recommended when your home is unoccupied for maximum security.

Mode 4 – Turn First Locked: Inverted backplate for older turn-first window systems. Key must be turned to full 180-degree position to operate.

Pro Tips:

Pro Tip: Use the 90-degree Tilt Safe position for everyday ventilation in upstairs rooms. This provides fresh air whilst maintaining complete fall-safety protection—especially important in homes with children or elderly residents. Installers should demonstrate all four modes to end users to ensure the handle’s safety features are properly understood and used.

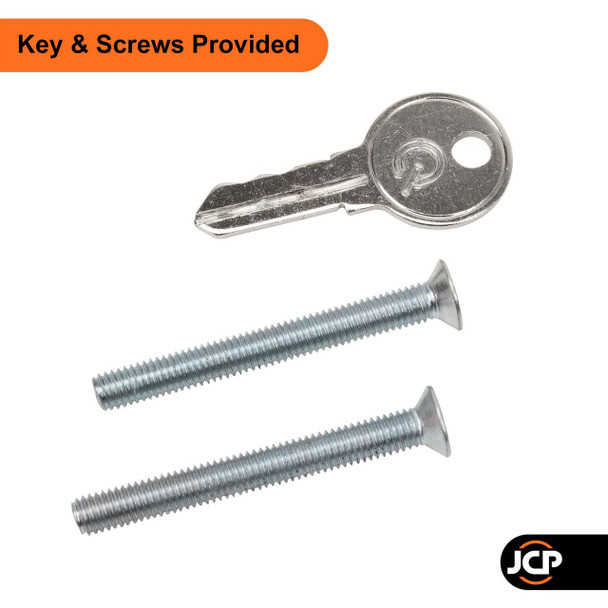

Contents:

• 1 × GreenteQ Alpha TBT Tilt and Turn Locking Handle Spindle (40mm length) with 7mm Square Spindle
• 1 × Key
• 1 × Backplate screw cover cap
• 2 × Fixing Screws

FAQ:

What’s the difference between Tilt Safe and fully locked?

Tilt Safe mode (90-degree cylinder position) allows the window to tilt for ventilation but prevents full opening for fall-safety. Fully locked mode (180-degree position) prevents any movement for maximum security. Use Tilt Safe for everyday ventilation, and fully locked mode when leaving your property.

Will this handle fit my tilt and turn windows?

The Alpha TBT has standard 43mm fixing centres and eurogroove compatibility, so it will fit all eurogroove fit systems including AGB, Roto, Siegenia and Maco hardware (with a 40mm handle spindle). It works with uPVC, aluminium and timber windows with tilt and turn drive gear. The 7mm square spindle with 40mm length is industry standard. Simply measure your current handle’s screw hole centres and spindle length.

How do I set up the handle for turn-first windows?

For turn-first operation, invert the backplate during installation. This changes the locking behaviour so the key must be turned to full 180-degree position to unlock—there is no intermediate Tilt Safe option in this mode. If your current handle turns down first before tilting, use the inverted backplate configuration.

Which finish should I choose for my window frames?

For white uPVC frames, choose White or Polished Chrome. Black, Anthracite Grey and Enduro Steel match grey or black frames. Satin Chrome is modern and will work across multiple colours. PVD Gold is elegant and perfect for traditional properties.

Why GreenteQ Alpha TBT?

The GreenteQ Alpha TBT is intelligent security and practical functionality. The 4-mode locking system adapts to your daily needs—from safe ventilation to maximum security—whilst the Secured by Design approval and Q-secure PREMIUM qualification prove its professional grade. Available in seven finishes with universal compatibility across uPVC, aluminium and timber windows, the Alpha TBT gives you peace of mind for your family and property for years to come.
