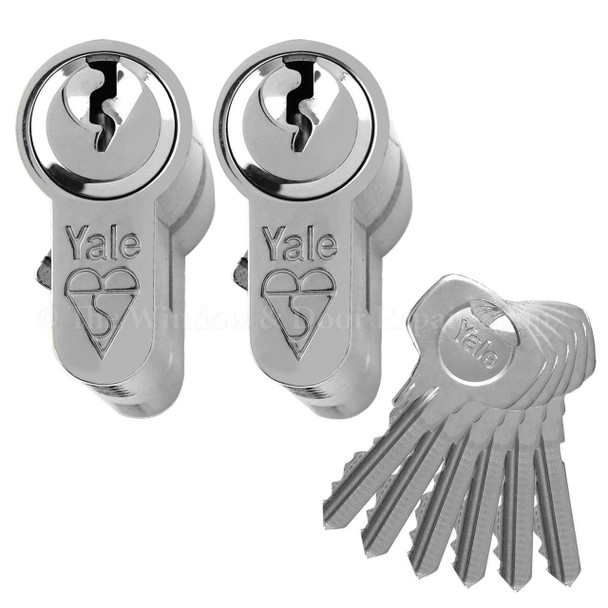

YALE 1 Star Keyed Alike Anti Bump Euro Cylinder Door Lock KM Series

Our Yale 1 Star Keyed Alike Anti Bump cylinder locks are sold in pairs, this means that both locks have the same key code, ie. keys will fit either cylinder. Each pack comes with 2 locks and 6 Keyed Alike keys.

Thet Yale 1 Star Keyed Alike Anti Bump door cylinder locks will fit all PVC-u doors with multi-point locks and can easily be fitted to upgrade security on older style doors. This advanced lock has been produced with today's soaring crime rate in mind to help combat the likelihood of intruders entering your home. This is a Secured by Design approved kite marked lock having undergone and passed the most rigorous of examinations, it has been independently tested and meets the British Standard Kitemark KM532920.

Features:

• High performance British Kitemarked Euro Profile 6 pin Cylinder
• Anti-bump
• Anti-pick and anti-saw features with hardened pins to protect the lock
• Anti-drill
• Anti-Manipulation
• Fire Resistant
• TS007 1 Star Cylinder
• BSI Kitemark Approved - KM532920
• Secured by Design approved
• Exceeds the highest European security grade CEN 5 BS EN1303:2005
• Ultimate key security with over 30,000 combinations

What's in the pack?

2 x Yale Locks

6 x Keys as standard

2 x Fixing Screw

How do I measure a door cylinder?

The size of cylinder you need is determined by the thickness of the door and handle combination, for this reason there are many sizes available and you will need to be careful that you measure the cylinder accurately (one size will not fit all). It is possible to measure a door cylinder in the door, but to be sure it's best to remove it first.

Your new door cylinder should protrude by no more than 5mm from the handle back plates. It is most sensible to go for exactly the same size as you are replacing (unless your old cylinder was protruding excessively).

Measurement A - Measure from one end of the cylinder to the middle of the central screw hole.

Measurement B - Measure from the other end to the middle of the central screw hole.

Now check your measurements

Measure the overall cylinder length from end to end. The length of the cylinder should equal the sum of measurements (A) and (B) when added together.

For example: If measurement (A) = 45mm and measurement (B) = 50mm the size required would be 45/50 cylinder (95mm in length). No further measurements are required

Please note: Please note: These cylinders can be reversed when fitting therefore ordering a 45/50 cylinder is the same as ordering a 50/45 cylinder.
