Versa 1 Star High Security Euro Cylinder Door Lock UPVC Doors Anti Snap TS007 1* or Half Cylinder

The Versa 1* Euro Cylinder is not just a lock; it's a fortress for your doors. British-engineered to the highest standards, including TS007 and SBD, this cylinder comes packed with features designed to outsmart the most determined intruders. With its innovative anti-snap lines, anti-bump technology, and a fire rating that protects for up to 60 minutes, the Versa 1* is a game-changer for DIY enthusiasts seeking top-notch security. Its unique dual finish combines aesthetic appeal with practicality, ensuring your door not only stays secure but also looks great.

Each Versa cylinder comes standard with 5 keys, ensuring you have ample access right from the start. Should you find yourself in need of more keys, rest assured, ordering additional ones is a breeze. Simply utilise the drop-down menu at the time of purchase to select any extra keys you require, making it convenient to tailor your order to suit your specific needs.

The Versa 1* Euro Cylinder meets and exceeds the requirements for durability, safety, and resistance against various forms of attack, as outlined in the EN1303:2015 classification. Its robust construction and innovative design make it an essential component for enhancing home security, especially for DIY enthusiasts dedicated to protecting their homes.

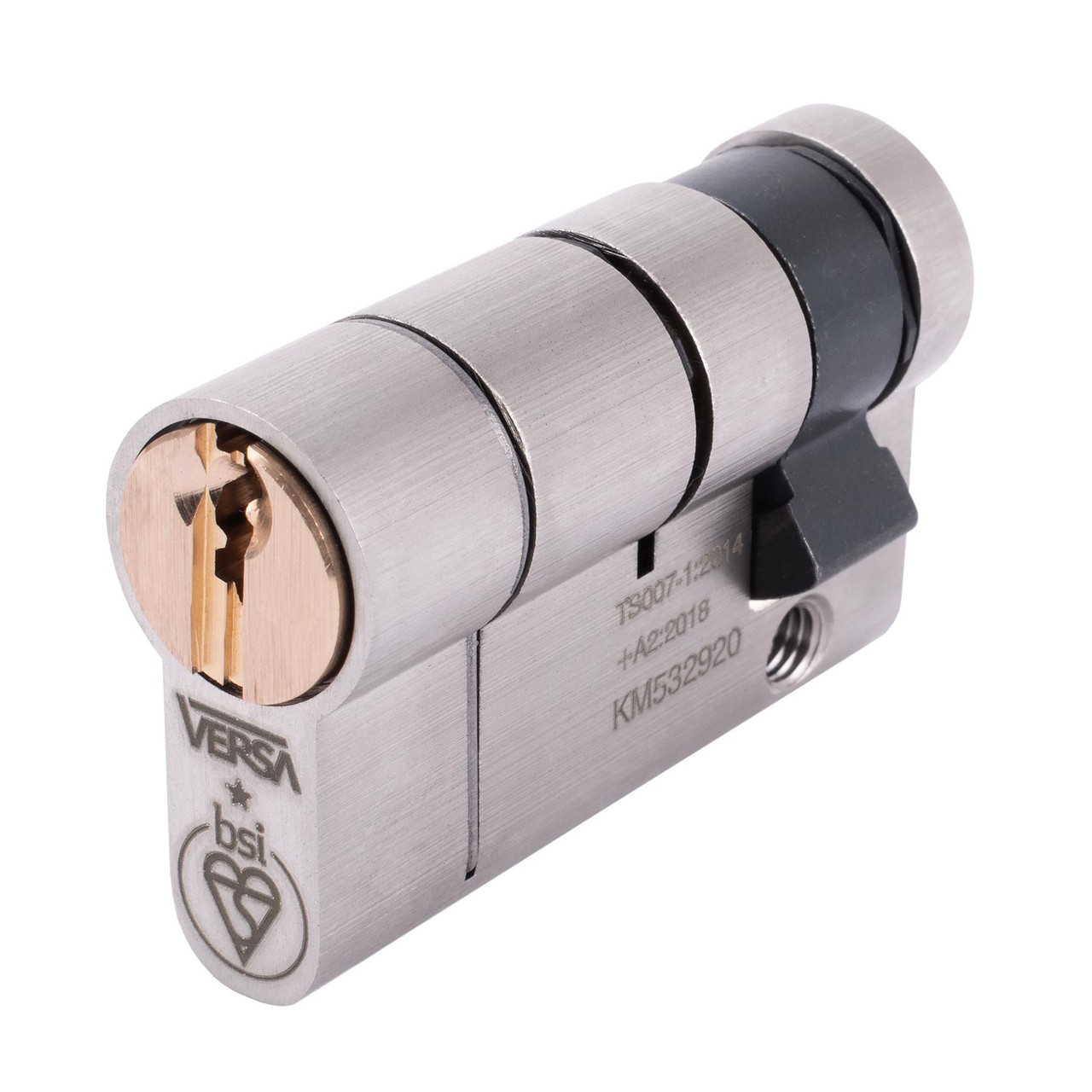

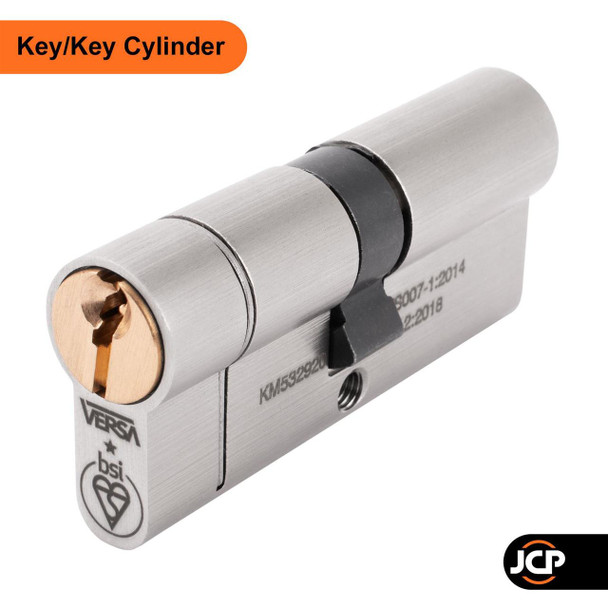

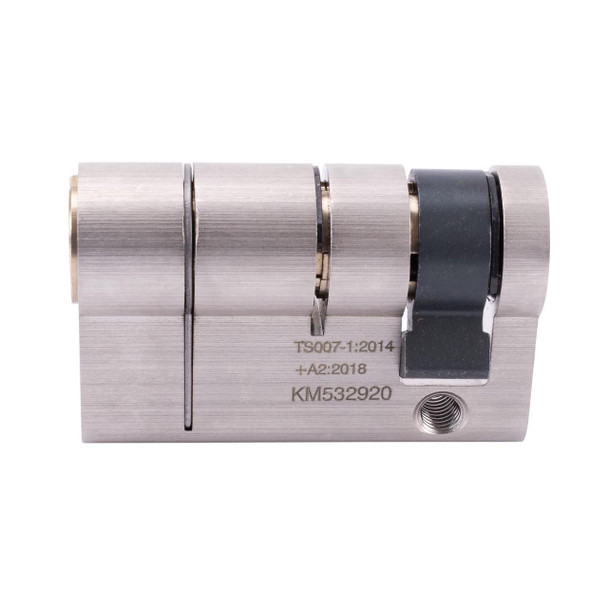

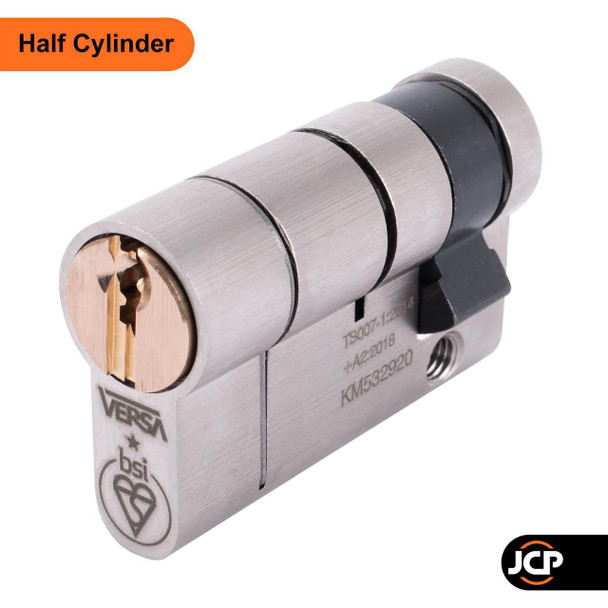

Available as a standard cylinder (key locking on each side) or a half cylinder (key locking on one side only).

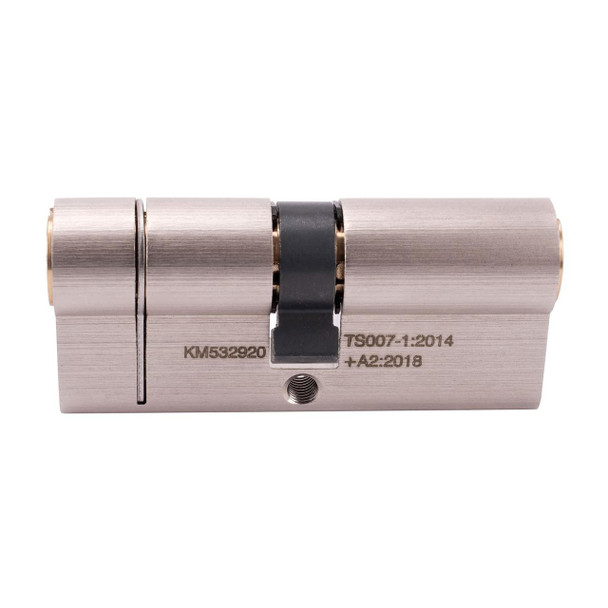

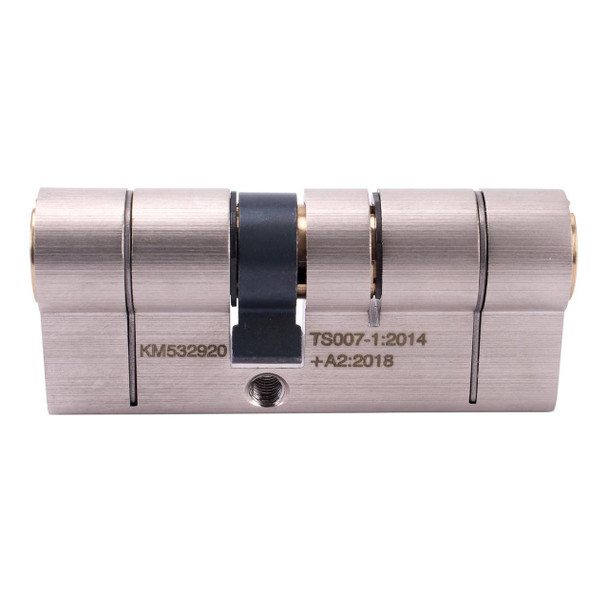

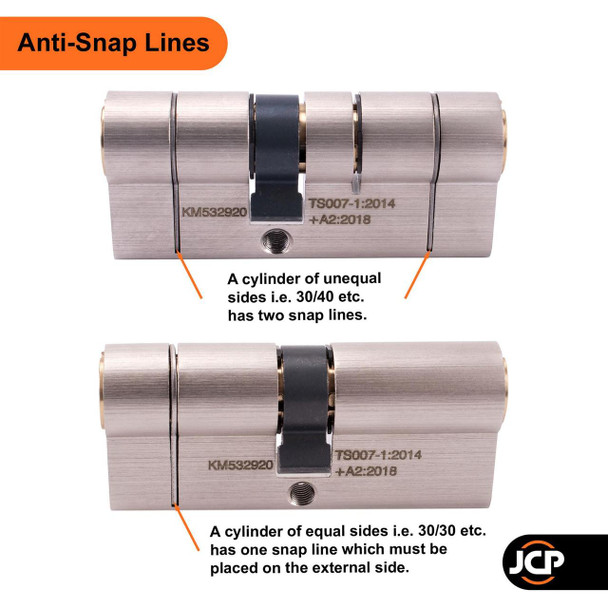

Please Note: Cylinders of equal length both sides (e.g. 40/40) will have one snap line that must be fitted facing the external side of the door, this is marked with 'EXT' on the cylinder. Cylinders with unequal sides e.g. 45/50 etc. have anti-snap protection on both sides; this means that either end can be used as the external side when fitting; therefore, ordering a 45/50 cylinder is the same as ordering a 50/45 cylinder.

Features:

• Dual finish in nickel plate and satin brass for a sophisticated look
• Anti-pick, anti-drill, anti-snap, and anti-pull mechanisms for ultimate door security
• Sacrificial snap side to deter intruders
• Endurance tested to 100,000 cycles for long-lasting reliability
• A 10-year manufacturers mechanical guarantee, providing peace of mind
• Certified by British Kitemark TS007:2014 +A2: 2018 1 Star, British Standards BS EN1303:2015, and Secured by Design
• Over 108,547 effective differs, ensuring high security
• Designed for 30 and 60-minute timber doors, compliant with EN1634-1:2014+A1:2018
• Material: Brass

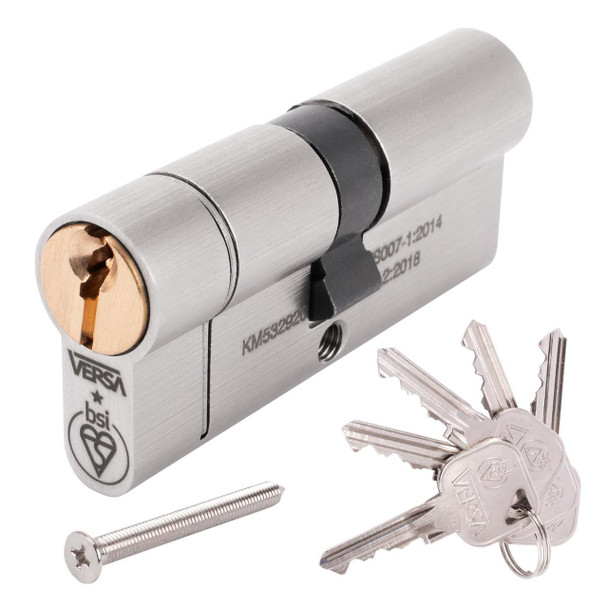

What's in the pack?

1 x Versa 1* Euro Cylinder or half cylinder

5 x Keys as standard

1 x 50mm screw

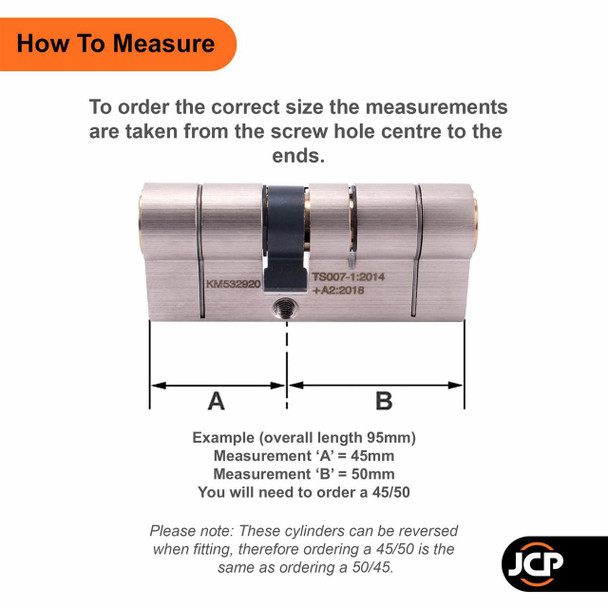

How do I measure a door cylinder?

• The size of cylinder you need is determined by the thickness of the door and handle combination, for this reason there are many sizes available and you will need to be careful that you measure the cylinder accurately (one size will not fit all). It is possible to measure a door cylinder in the door, but to be sure it's best to remove it first.
• Your new door cylinder should protrude by no more than 5mm from the handle back plates.
• Measurement A - Measure from one end of the cylinder to the middle of the central screw hole.
• Measurement B - Measure from the other end to the middle of the central screw hole.

Now check your measurements:

• Measure the overall cylinder length from end to end. The length of the cylinder should equal the sum of measurements (A) and (B) when added together.
• For example: If measurement (A) = 45mm and measurement (B) = 50mm the size required would be 45/50 cylinder (95mm in length).
• No further measurements are required.

Please Note: Cylinders of equal length both sides (e.g. 40/40) will have one snap line that must be fitted facing the external side of the door, this is marked with 'EXT' on the cylinder. Cylinders with unequal sides e.g. 45/50 etc. have anti-snap protection on both sides; this means that either end can be used as the external side when fitting; therefore, ordering a 45/50 cylinder is the same as ordering a 50/45 cylinder.
